Current Sensors
CSNE Series
25 A, 50 A rated currents. ±36 A, ±90 A sensing current ranges. < 1 µs response time. ±0.5 % accuracy.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The CSN Series of closed loop current sensors are based on the principles of the Magnetoresistive or Hall effects, and the null balance or zero magnetic flux method (feedback system). The magnetic flux in the sensor core is constantly controlled at zero.
The amount of current required to balance zero flux is the measure of the primary current flowing through the conductor, multiplied by the ratio of the primary to secondary windings.
This closed loop current is the output from the device and presents an image of the primary current reduced by the number of secondary turns at any time. This current can be expressed as a voltage by passing it through a resistor.
Manuals and Guides
Name
Description
File Size
Date
Size
Current Sensors - Line Guide
application/pdf 881.93 KB
5/24/2021
881.93 KB
Current Sensors - Line Guide
application/pdf 844.99 KB
9/14/2021
844.99 KB
Current Sensors - Line Guide
application/pdf 844.99 KB
10/7/2021
844.99 KB
Current Sensors - Line Guide
application/pdf 844.99 KB
10/22/2021
844.99 KB
Current Sensors - Line Guide
application/pdf 881.93 KB
7/20/2021
881.93 KB
Current Sensors - Line Guide
application/pdf 881.93 KB
7/22/2021
881.93 KB
Current Sensors - Line Guide
application/pdf 881.93 KB
9/20/2021
881.93 KB
Brochure
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Current Sensors - Line Guide
application/pdf 881.93 KB
5/24/2021
881.93 KB
Current Sensors - Line Guide
application/pdf 844.99 KB
9/14/2021
844.99 KB
Current Sensors - Line Guide
application/pdf 844.99 KB
10/7/2021
844.99 KB
Current Sensors - Line Guide
application/pdf 844.99 KB
10/22/2021
844.99 KB
Current Sensors - Line Guide
application/pdf 881.93 KB
7/20/2021
881.93 KB
Current Sensors - Line Guide
application/pdf 881.93 KB
7/22/2021
881.93 KB
Current Sensors - Line Guide
application/pdf 881.93 KB
9/20/2021
881.93 KB
Name
Description
File Size
Date
Size
Please sign in to view part numbers available for purchase based on your account Sign In
Showing 1 to 10 of 11 parts
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list

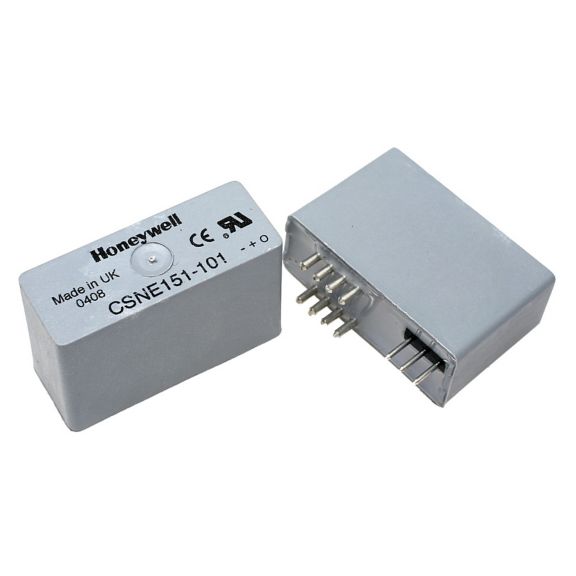

CSNE151
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 25 AT nominal, ±36 AT range, smaller housing, 1000 turns
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 25 AT nominal, ±36 AT range, smaller housing, 1000 turns
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-002
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 25 AT nominal, ±43 AT range, high temperature, potted, 1000 turns
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-002
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 25 AT nominal, ±43 AT range, high temperature, potted, 1000 turns
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-005
CURRENT SENSORS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-005
CURRENT SENSORS
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-100
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 25 AT nominal, ±90 AT range, 1000 turns
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-100
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 25 AT nominal, ±90 AT range, 1000 turns
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-104
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 25 AT nominal, ±56 AT range, miniature housing, 2000 turns
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-104
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 25 AT nominal, ±56 AT range, miniature housing, 2000 turns
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-204
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 50 AT nominal, ±90 AT range, miniature housing, 2000 turns
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-204
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 50 AT nominal, ±90 AT range, miniature housing, 2000 turns
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-ATOM-03
25A CURRENT SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-ATOM-03
25A CURRENT SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-ATOM-30
25A CURRENT SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE151-ATOM-30
25A CURRENT SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE381
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 25 AT nominal, ±36 AT range, smaller housing, 1000 turns, ±5V supplies
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNE381
CSN Series closed loop linear current sensor, measures ac, dc or impulse current, 25 AT nominal, ±36 AT range, smaller housing, 1000 turns, ±5V supplies
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNK500-ATOM-06
500A CURRENT SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-csne151-101-1406-ciid-160975
CSNK500-ATOM-06
500A CURRENT SENSOR
