リミットスイッチ
RDIシリーズ
商業用スイングドアに対応するよう設計されています。
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
製品概要

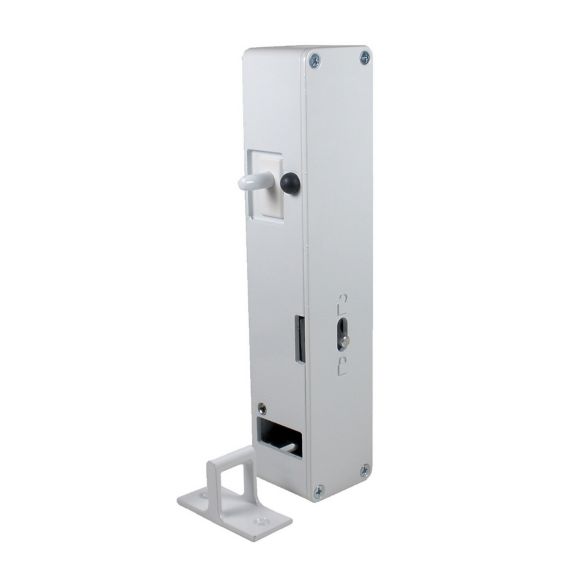

ハネウェルRelialign™ CDIシリーズ住宅用ドアインターロックスイッチは、米国ではスイングドア用途（特に食品・食器用エレベータ、資材用エレベータ、身体障害者用エレベータ、住宅用スイングドアエレベータ）での使用を目的として設計された電気機械式デバイスです。カナダでは、CDIはスイングドア用途（特に食品・食器用エレベータ、資材用エレベータ、住宅用エレベータ）での使用と目的として設計されていますが、身体障害者用エレベータ用に設計されていません。インターロックはドアを定位置に保持し、安全でない状態（エレベータ/リフト車がドアの位置にないときなど）ではドアが開かないようにします。
CDIシリーズのインターロックは、構成可能で、左手バージョンと右手バージョンがあり、カスタマイズや設置が簡単に行え、現行デザインへの追加改良も可能です。各種の特徴ある設計によって安全性が向上し、操業停止やコールバックは減少し、配線と設置も簡素化されます。
