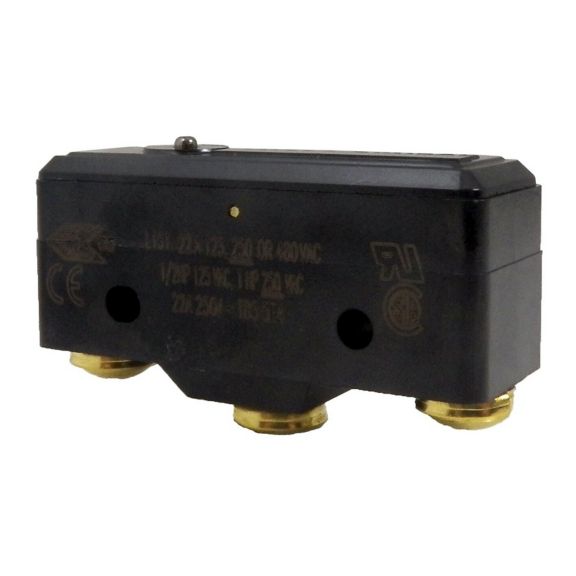

基本的なスイッチ
WMシリーズ
22 A. SPNC. さまざまなアクチュエータおよび終端、25.4mm ctrs サイドまたはパネル取付け
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
製品概要
高い精度、信頼性、再現性を誇るMICRO SWITCH BZ/BA/BM/BE/6AS/WZ/YZ/WA/YAシリーズは、正確な動作特性と長寿命を特徴としています。大型プレミアム スナップアクションスイッチは、高精度のオペレーションと高感度のディフェレンシャルトラベルを実現。
ハネウェルは、最新式の製造プロセスと品質コントロールを使用し、様々な国際機関の要件に適合する大型プレミアム スナップアクションスイッチを設計・製造しました。一部のモデルは軍用仕様です。これらのシリーズは、高精度ON/OFFアプリケーション、リミットエンド、存在/不在、手動オペレータインターフェース機能などに使用されます。
その設計は、多様なアプリケーションニーズに対応しています。構成オプションは、多様なオペレーション機能およびインターフェース機能を実現します。
