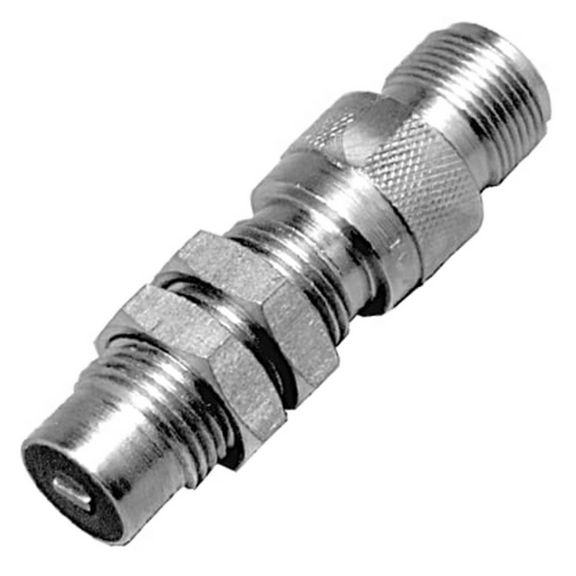

速度センサ
VRS高分解能シリーズ
正確なタイミングパルスが必要、精密ピッチギアを使用。
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
製品概要
高解像度VRSセンサは、精密なタイミングパルスを必要とするアプリケーションや、高ピッチギアを使用するアプリケーション用に設計されています。このような用途では、センサの適切なアライメントが求められます。
- 自己電源動作
- アクチュエータ速度から出力周波数への直接変換
- 簡単な設置
- 可動部品なし
- 幅広い速度範囲で使用可能
- さまざまな構成に適合可能
- 特殊スピード検知アプリケーション用にカスタマイズされたVRS製品
- ハウジング直径：5/8in（M16）、3/8in（M12）
- ハウジング素材/スタイル：ステンレススチールねじ山付き
- 端子：MS3106コネクタ、配線済み
- 出力電圧：17 Vp-p ～170 Vp-p
