速度センサ

SNDH-Tシリーズ

直交出力付きホール効果速度および方向センサ 供給電圧:4.5Vdc~18Vdc 動作周波数:1Hz~15kHz

製品概要
SNDH-T Series

SNDH-Tシリーズは、相互に90°位相シフトする直交出力信号を使用して、速度と方向情報を提供するデュアル差動ホール効果センサです。ターゲットの方向は、出力リード/ラグ位相シフトによって決定します。

この製品は、1 Hz~15 kHzという幅広い周波数範囲と、大きなエアギャップで超高解像度を必要とするアプリケーション用に設計されています。ダイナミックオフセット補正のための高度デジタル信号処理を用いた、BiCMOS(バイポーラ相補型金属酸化膜半導体)ホール効果テクノロジーは、ほとんどの条件下でエアギャップパフォーマンスと位相シフト精度を向上させます。

独自のIC(集積回路)パッケージング(特許申請中)は、出力位相シフトの精度を向上させます。堅牢なパッケージを備え、ほとんどの環境に耐える性能と強化されたEMI(電磁干渉)性能により、自動車のエンジンルーム内で使用できます。AMPスーパーシールまたはAMP Jr.タイマーコネクタを使用した、ワイヤハーネスおよび統合コネクタバージョンなど、複数の接続オプションをご利用いただけます。パッケージには、圧力アプリケーション用のOリングシールと固定取付けフランジが含まれています。

Data Sheet
Name
Description
File Size
Date
Size
SNDH-T Series Quadrature General Industrial Speed and Direction Sensors
application/pdf 703.95 KB
11/17/2022
703.95 KB
Manuals and Guides
Name
Description
File Size
Date
Size
Speed Sensors - Range Guide
application/pdf 3.62 MB
11/7/2024
3.62 MB
Speed Sensor Comparison
application/pdf 481.16 KB
11/17/2022
481.16 KB
Transportation Range Guide
application/pdf 16.68 MB
9/26/2022
16.68 MB
CAD Model
Name
Description
File Size
Date
Size
SNDH-T4C-G01 CAD Model.zip
application/zip 45.41 KB
7/16/2021
45.41 KB
SNDH-T4L-G01 CAD Model.zip
application/zip 91.24 KB
7/16/2021
91.24 KB
Brochure
Name
Description
File Size
Date
Size
Partners Providing Technical Safety and Productivity Solutions -
application/pdf 1.04 MB
4/11/2024
1.04 MB
Application Note
Name
Description
File Size
Date
Size
Forestry Vehicles
application/pdf 1.05 MB
12/20/2022
1.05 MB
Platform Vehicles
application/pdf 628.05 KB
12/20/2022
628.05 KB
All-Terrain Vehicle Solutions
application/pdf 803.57 KB
12/20/2022
803.57 KB
Construction Vehicles -
application/pdf 984.29 KB
12/20/2022
984.29 KB
Agricultural Vehicles
application/pdf 1.11 MB
4/11/2024
1.11 MB
Sensors and Switches in Valves and Flowmeters
application/pdf 1.78 MB
9/23/2022
1.78 MB
Defence Ground Vehicles -
application/pdf 872.87 KB
6/14/2023
872.87 KB
Sensors and Switches in Front Loaders
application/pdf 2.54 MB
12/20/2022
2.54 MB
Sensors and Switches in Mobile Cranes
application/pdf 1.97 MB
12/20/2022
1.97 MB
eBook
Name
Description
File Size
Date
Size
Military Defense Solutions eBook
application/pdf 15.17 MB
2/17/2025
15.17 MB
Redefining Road Rail & Rugged Applications
application/pdf 28.35 MB
12/20/2022
28.35 MB
Product Photo
Name
Description
File Size
Date
Size
SNDH-T4C-G01 lowres photo
image/jpeg 14.58 KB
7/16/2021
14.58 KB
SNDH-T4P-G02 lowres photo
image/jpeg 26.07 KB
7/16/2021
26.07 KB

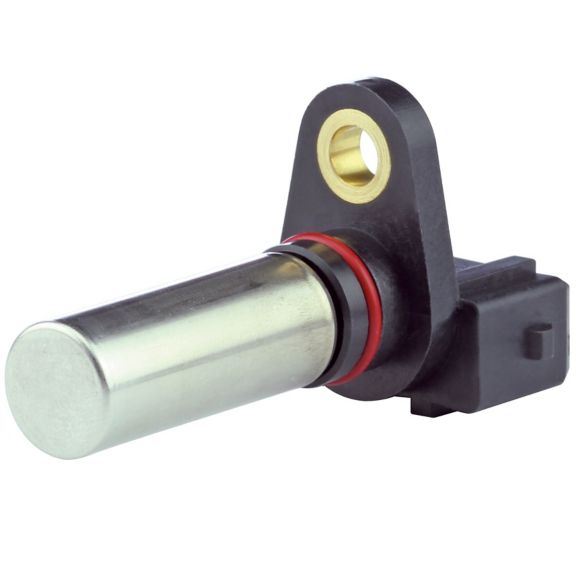

SNDH-T4C-G01 highres photo
image/jpeg 130.12 KB
7/16/2021
130.12 KB

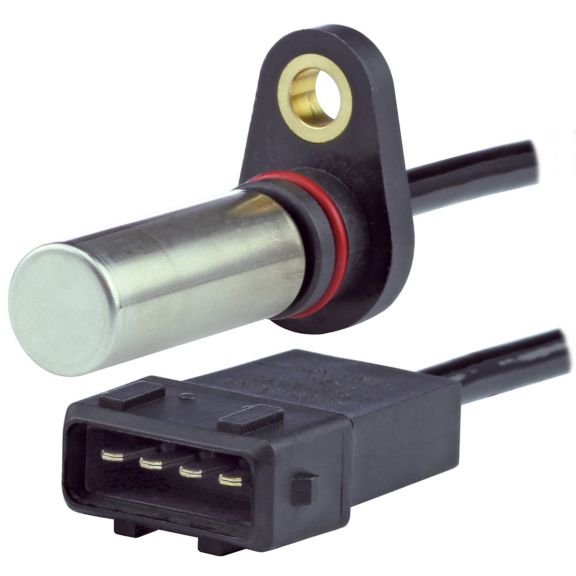

SNDH-T4P-G02 highres photo
image/jpeg 209.13 KB
7/16/2021
209.13 KB

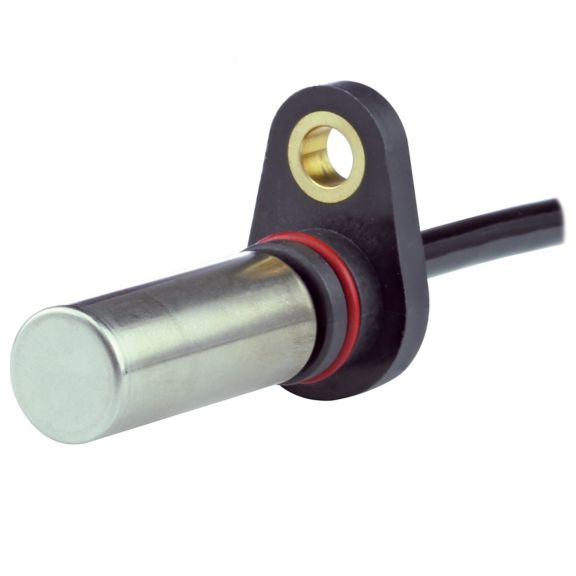

SNDH-T4L-G01 highres photo
image/jpeg 119.68 KB
7/16/2021
119.68 KB
SNDH-T4P-G01 lowres photo
image/jpeg 25.95 KB
7/16/2021
25.95 KB

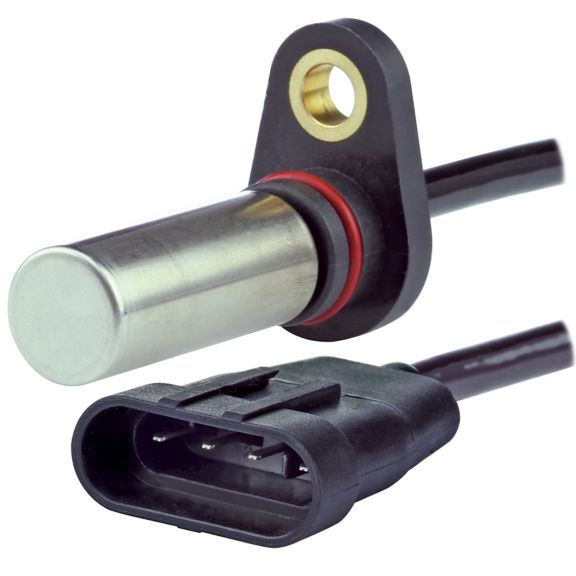

SNDH-T4P-G01 highres photo
image/jpeg 220.42 KB
7/16/2021
220.42 KB
SNDH-T4L-G01 lowres photo
image/jpeg 15.54 KB
7/16/2021
15.54 KB
Name
Description
File Size
Date
Size
Military Defense Solutions eBook
application/pdf 15.17 MB
2/17/2025
15.17 MB
Forestry Vehicles
application/pdf 1.05 MB
12/20/2022
1.05 MB
Redefining Road Rail & Rugged Applications
application/pdf 28.35 MB
12/20/2022
28.35 MB
Platform Vehicles
application/pdf 628.05 KB
12/20/2022
628.05 KB
All-Terrain Vehicle Solutions
application/pdf 803.57 KB
12/20/2022
803.57 KB
SNDH-T4C-G01 lowres photo
image/jpeg 14.58 KB
7/16/2021
14.58 KB
Speed Sensors - Range Guide
application/pdf 3.62 MB
11/7/2024
3.62 MB
SNDH-T4P-G02 lowres photo
image/jpeg 26.07 KB
7/16/2021
26.07 KB
SNDH-T4C-G01 highres photo
image/jpeg 130.12 KB
7/16/2021
130.12 KB
Construction Vehicles -
application/pdf 984.29 KB
12/20/2022
984.29 KB
Partners Providing Technical Safety and Productivity Solutions -
application/pdf 1.04 MB
4/11/2024
1.04 MB
Agricultural Vehicles
application/pdf 1.11 MB
4/11/2024
1.11 MB
SNDH-T4P-G02 highres photo
image/jpeg 209.13 KB
7/16/2021
209.13 KB
SNDH-T Series Quadrature General Industrial Speed and Direction Sensors
application/pdf 703.95 KB
11/17/2022
703.95 KB
Speed Sensor Comparison
application/pdf 481.16 KB
11/17/2022
481.16 KB
SNDH-T4L-G01 highres photo
image/jpeg 119.68 KB
7/16/2021
119.68 KB
Sensors and Switches in Valves and Flowmeters
application/pdf 1.78 MB
9/23/2022
1.78 MB
SNDH-T4P-G01 lowres photo
image/jpeg 25.95 KB
7/16/2021
25.95 KB
SNDH-T4P-G01 highres photo
image/jpeg 220.42 KB
7/16/2021
220.42 KB
Transportation Range Guide
application/pdf 16.68 MB
9/26/2022
16.68 MB
SNDH-T4C-G01 CAD Model.zip
application/zip 45.41 KB
7/16/2021
45.41 KB
Defence Ground Vehicles -
application/pdf 872.87 KB
6/14/2023
872.87 KB
Sensors and Switches in Front Loaders
application/pdf 2.54 MB
12/20/2022
2.54 MB
Sensors and Switches in Mobile Cranes
application/pdf 1.97 MB
12/20/2022
1.97 MB
SNDH-T4L-G01 CAD Model.zip
application/zip 91.24 KB
7/16/2021
91.24 KB
SNDH-T4L-G01 lowres photo
image/jpeg 15.54 KB
7/16/2021
15.54 KB
Showing 1 to 8 of 8 parts
Product Number
Part Number
Description
Leaf Category
Thumbnail
SNDH-T4C-C02
DUAL HALL SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-speed-sndh-t-series-group-2-ciid-161163
SNDH-T4C-C02
DUAL HALL SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-speed-sndh-t-series-group-2-ciid-161163
SNDH-T4C-C04
SENSOR, QUADRATURETEMPERATURE 7-32V SUP
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-speed-sndh-t-series-group-2-ciid-161163
SNDH-T4C-C04
SENSOR, QUADRATURETEMPERATURE 7-32V SUP
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-speed-sndh-t-series-group-2-ciid-161163
SNDH-T4C-G01
QUADRATURE SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-speed-sndh-t-series-group-2-ciid-161163
SNDH-T4C-G01
QUADRATURE SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-speed-sndh-t-series-group-2-ciid-161163
SNDH-T4L-G01
DUAL HALL SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-speed-sndh-t-series-group-2-ciid-161163
SNDH-T4L-G01
DUAL HALL SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-speed-sndh-t-series-group-2-ciid-161163
SNDH-T4P-G02
DUAL HALL SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-speed-sndh-t-series-group-2-ciid-161163
SNDH-T4P-G02
DUAL HALL SENSOR
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-honeywell-sensing-speed-sndh-t-series-group-2-ciid-161163
