    Células de carga

    Model 3397 Series

    Tension/compression low profile load cells. 25 lb, 50 lb, 100 lb, 200 lb, & 300 lb capacities. ±0.07% full-scale accuracy

    Overview

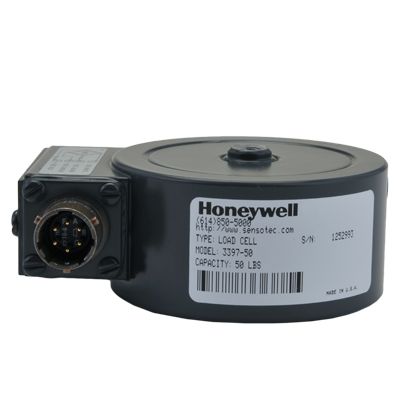

    Honeywell's cost-effective, general purpose, carbon steel, pancake load cells offer a compact design that features exceptional structural capability to withstand extraneous loads, such as torque, bending movements and side loads combined with a high degree of accuracy for general purpose applications.

    Designed to measure tension/compression, these load cells have enhanced accuracies up to 0.07 % and have measurement ranges from 5 lb up to 100,000 lb. Fatigue-resistant and fatigue-rated models for use with applications with extremely high cycle counts are available. Need special modifications or a custom design? Call us to discuss your requirements.

    Features
    • Up to 0.05 % accuracy
    • 25 lb to 300 lb range
    • Low sensitivity to extraneous loads
    • Low deflection
    • Built-in temperature compensation
    Data Sheet
