    Células de Carga

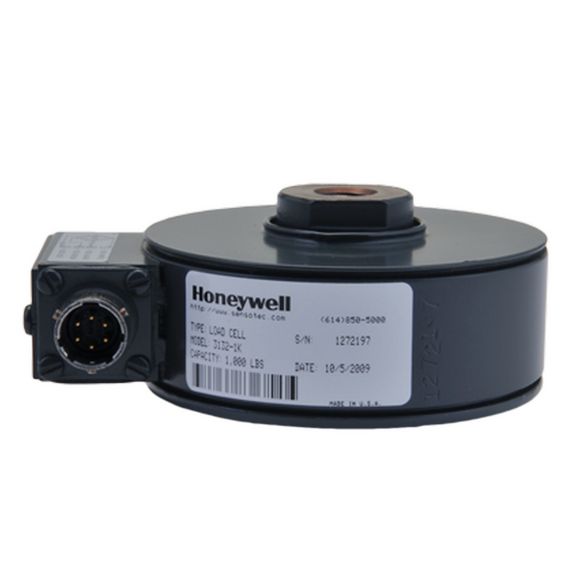

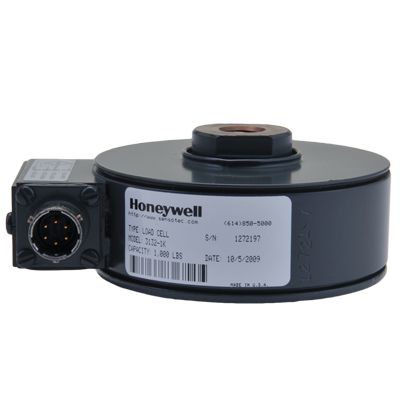

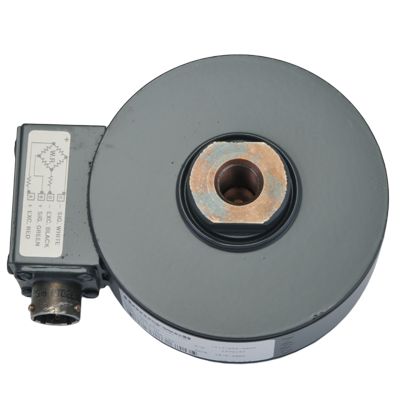

    Model 3132 Series

    Tension/compression low profile load cells. 500 lb to 5,000 lb capacities. ±0.15% full-scale accuracy

    Overview
    Suporte Onde comprar Fale conosco

    Honeywell's cost-effective, general purpose, carbon steel, pancake load cells offer a compact design that features exceptional structural capability to withstand extraneous loads, such as torque, bending movements and side loads combined with a high degree of accuracy for general purpose applications.

    Designed to measure tension/compression, these load cells have enhanced accuracies up to 0./07% and have measurement ranges from 5 lbs up to 100,000 lbs. Fatigue-resistant and fatigue-rated models for use with applications with extremely high cycle counts are available. Need special modifications or a custom design? Call us to discuss your requirements.

    Features
    • 500 lb to 5000 lb range
    • Low sensitivity to extraneous loads
    • Low deflection
    • Rugged welded construction
    • Built-in temperature compensation
