LVDTs
Model S3C Series
dc-dc long stroke displacement transducers. Captive guided spring return armature. ±0.1 in to ±0.4 in ranges. ±0.25% F.S. non-linearity.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

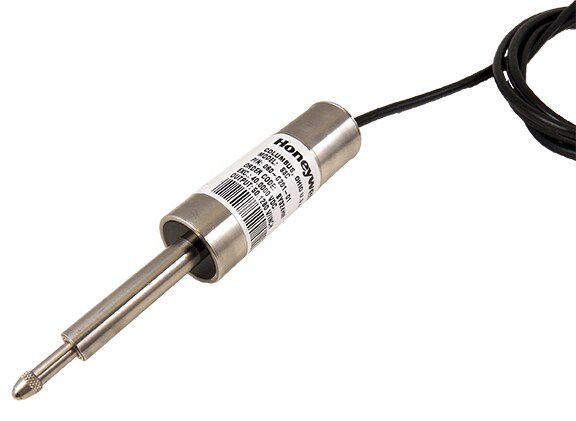

Model S3C DC-DC Miniature Displacement Transducer with captive guided spring return armature, ranges of ± 0.1 in to ± 0.4 in and accuracy of ± 0.25 % of full scale. Output of either ± 5 Vdc or 0 to 10 Vdc with supply that can operate with either a dual power supply of ± 12 Vdc to ± 20 Vdc or a single power supply of 24 Vdc to 40 Vdc. Unit can operate from a temperature of -58 °F to +158 °F and is constructed with a stainless steel body and has a 6 ft long multi-conductor shielded cable.
Features
- Miniature design
- Cost efficient
- 0.25 % non-linearity
- Stainless steel construction
- ±0.1 in to ±0.4 in range
- Infinite resolution
- Single or dual supply wiring (field selectable)
- Captive guided spring return armature
- Not RoHS compliant
