    Load Cells

    Model 3170 Series

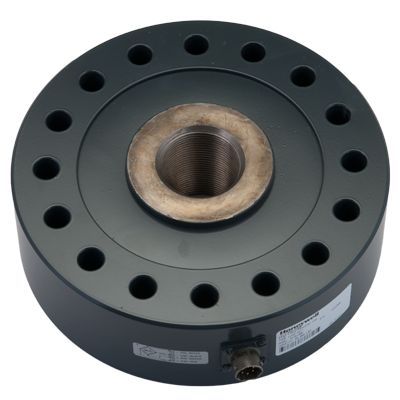

    Tension/compression low profile load cells. 200 lb to 100,000 lb capacities. ±0.07% full-scale accuracy.

    Overview
    SUPPORT Where to buy CONTACT US

    Honeywell's cost-effective, general purpose, carbon steel, pancake load cells offer a compact design that features exceptional structural capability to withstand extraneous loads, such as torque, bending movements and side loads combined with a high degree of accuracy for general purpose applications.

    Designed to measure tension/compression, these load cells have enhanced accuracies up to 0.07 % and have measurement ranges from 5 lb up to 100,000 lb. Fatigue-resistant and fatigue-rated models for use with applications with extremely high cycle counts are available. Need special modifications or a custom design? Call us to discuss your requirements.

    Features
    • English threads
    • Enhanced accuracy, 0.07 %
    • Low deflection
    • Fatigue-resistant design and enhanced performance
    • Low full-scale capacity
    • Low profile
    • Decreased sensitivity to extraneous loading
