load cells
Model 31 Series
Miniature load cells. Rugged double diaphragm capacity: ≤100 lb: single diaphragm: >100 lb. Male thread attachments.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

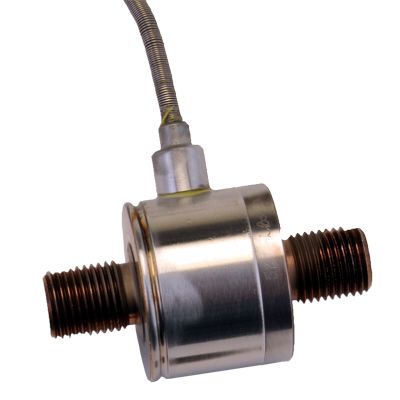

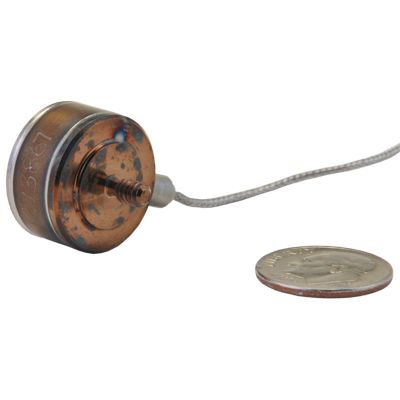

Honeywell miniature load cells are designed to fit into systems with limited space or tight clearances. The Model 31 series are Honeywell's highest accuracy, rugged, miniature load cells designed to measure both tension and compression load forces from 50 g to up to 10,000 lb or 0.5 N up to 50,000 N, with high accuracies of 0.15 % to 0.25 % full scale.
The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads. Can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please contact us.
Features
- Miniature sizes ranging from 12,7 mm to 35,05 mm in diameter and from 11,43 mm to 38,1 mm height
- Load range measurements: 50 gs to 10,000 lb: 0.5 N to 5,000 N: or 5 lb to 50,000 lb
- Stainless steel construction: All-welded option available for underwater applications
- High accuracies of 0.15 % to 0.25 % full scale
- mV/V output
Specifications
