Accelerometers

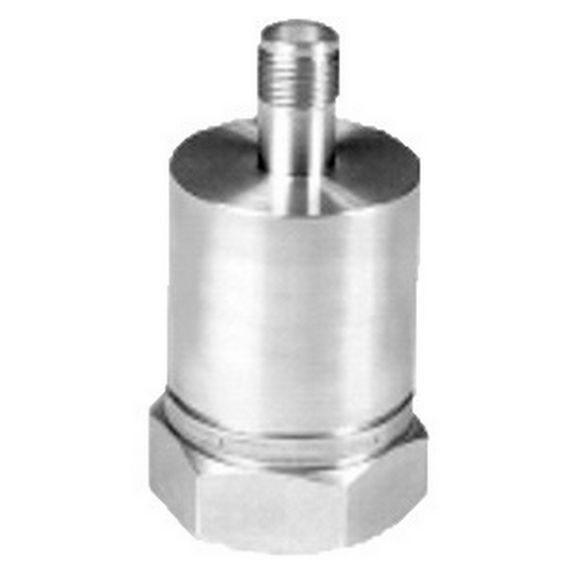

Model MAQ13 Series

General purpose charge output miniature accelerometers. Top exit cable. 10-32 UNF female mounting hole. ±800 G dynamic range.

Overview
Model MAQ13 Series

The Model MAQ13 charge output miniature accelerometer is designed to be used in Industrial test and automation environments: including laboratory testing, modal studies and test cells where high temperatures are likely to be encountered and where space is limited and small size is desired or a high natural frequency is required. The MAQ13 is a self-generating piezoelectric transducer which has no internal electronics and requires no external power for operation.

These units are usually connected to a local charge amplifier that is mounted as near as possible in a lower temperature environment. The Model MAQ13 features a wide frequency range, and a flat sensitivity vs. temperature response over the temperature range. The seismic element is mechanically isolated from the mounting base, resulting in a low base strain sensitivity. The stainless steel materials are non-magnetic resulting in very low magnetic field susceptibility. These features, together with a sealed body, assure accurate and reliable data.

Features
  • Small size
  • Charge output (pC/G)
  • 30 kHz mounted frequency
  • General purpose
  • Suitable for high temperatures
  • Side entry microdot connector
  • No internal electronics
