Thermostats
3106 Series
Hermetically sealed. UL &/or CSA. Tight tolerances & differentials. Pre-set & tamper proof. Gold-alloy contacts
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

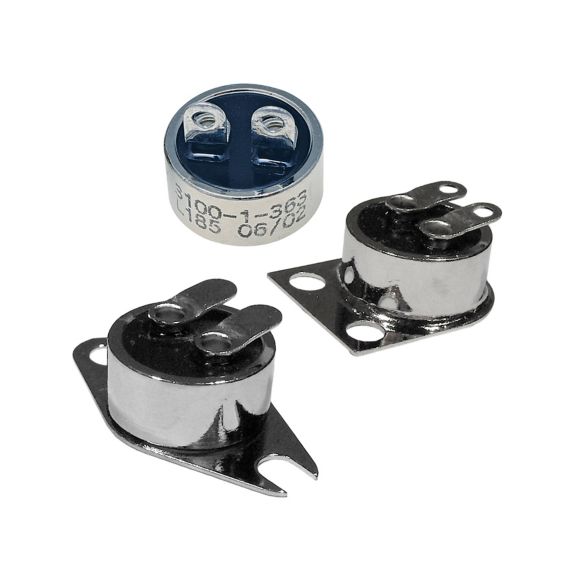

The 3106 Series consists of a single pole, single throw switch activated by a snap-action bimetal disc. Temperature calibrations are pre-set at the factory and each unit is 100% thermally and mechanically inspected. It is available to open or close on temperature rise. The case is laser welded to form a hermetically-sealed steel housing with a glass-to-metal seal at the terminal junction. It is manufactured and tested to meet or exceed critical commercial and industrial specifications. They have gold alloy contacts for low voltage applications.
Features
- Hermetically sealed
- Tight tolerances
- Tight differentials
- Logic level contacts
Potential Applications
- Computers
- Medical electronics
- Power supplies
- Industrial controls
- Test equipment
- Infotech
Specifications
Operating Characteristics
- Humidity
- MIL-STD-202, Method 106
- Operating Temperature
- -29 °C to 204 °C [-20 °F to 400 °F]
Technical Specifications
- Thermostat Environmental Exposure Range
- -62 °C to 260 °C [-80 °F to 500 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- Insulation Resistance
- MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Standards & Certifications
- Agency Approvals and Standards
- UL
Features
- Seal Type
- MIL-STD-202, Method 112; Cond. 1x10-5
Operating Characteristics
- Humidity
- MIL-STD-202, Method 106
- Operating Temperature
- -29 °C to 204 °C [-20 °F to 400 °F]
Technical Specifications
- Thermostat Environmental Exposure Range
- -62 °C to 260 °C [-80 °F to 500 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- Insulation Resistance
- MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
- Dielectric Strength
- MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
Standards & Certifications
- Agency Approvals and Standards
- UL
Features
- Seal Type
- MIL-STD-202, Method 112; Cond. 1x10-5
- Humidity : MIL-STD-202, Method 106
- Thermostat Environmental Exposure Range : -62 °C to 260 °C [-80 °F to 500 °F]
- Agency Approvals and Standards : UL
- Thermostat Contact Resistance : MIL-STD-202, Method 307; 0.050 Ohm
- Operating Temperature : -29 °C to 204 °C [-20 °F to 400 °F]
- Insulation Resistance : MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
- Dielectric Strength : MIL-STD-202, Method 301; 1250 Vac 60 Hz - Terminal to Case
- Seal Type : MIL-STD-202, Method 112; Cond. 1x10-5
Data Sheet
Name
Description
File Size
Date
Size
Precision and High Reliability Thermostats
application/pdf 5.15 MB
8/24/2021
5.15 MB
Manuals and Guides
Name
Description
File Size
Date
Size
Technical Tip Bulletin - Precision Thermostat | Gold Contact Selection Guide
application/pdf 33.28 KB
8/24/2021
33.28 KB
Soldering Wire Leads on Precision Hermetic Thermostats
application/pdf 216.61 KB
8/24/2021
216.61 KB
Brochure
Name
Description
File Size
Date
Size
Industrial Applications: Going Beyond Limits
application/pdf 16.68 MB
2/11/2025
16.68 MB
Technical Note
Name
Description
File Size
Date
Size
Industrial Product Line Card --
application/pdf 2.24 MB
10/25/2022
2.24 MB
Application Note
Name
Description
File Size
Date
Size
eBook
Name
Description
File Size
Date
Size
Military Defense Solutions eBook
application/pdf 15.17 MB
2/17/2025
15.17 MB
Name
Description
File Size
Date
Size
Military Defense Solutions eBook
application/pdf 15.17 MB
2/17/2025
15.17 MB
Industrial Applications: Going Beyond Limits
application/pdf 16.68 MB
2/11/2025
16.68 MB
Industrial Product Line Card --
application/pdf 2.24 MB
10/25/2022
2.24 MB
Technical Tip Bulletin - Precision Thermostat | Gold Contact Selection Guide
application/pdf 33.28 KB
8/24/2021
33.28 KB
Soldering Wire Leads on Precision Hermetic Thermostats
application/pdf 216.61 KB
8/24/2021
216.61 KB
Precision and High Reliability Thermostats
application/pdf 5.15 MB
8/24/2021
5.15 MB
Name
Date
Size
7/16/2021
10/25/2022
12/20/2022
12/20/2022
4/11/2024
6/14/2023
12/20/2022
2/17/2025
Please sign in to view part numbers available for purchase based on your account Sign In
Showing 1 to 10 of 122 parts
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
3100UX 00031632
T116 B209 COR O18005 C20004
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00031632
T116 B209 COR O18005 C20004
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00031678
T116 B209 COR O20506 C22505
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00031678
T116 B209 COR O20506 C22505
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00031887
T117 B209 COR O00110 C03207
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00031887
T117 B209 COR O00110 C03207
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00031974
T116 B209 COR O280MN C30005
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00031974
T116 B209 COR O280MN C30005
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00032017
T117 B209 OOR O09005 C07004
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00032017
T117 B209 OOR O09005 C07004
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00032065
T117 B209 COR O16005 C18004
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00032065
T117 B209 COR O16005 C18004
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00060234
T117 B210 OOR O12005 C10004
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00060234
T117 B210 OOR O12005 C10004
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00431084
T117 S306 OOR O19405 C15804
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3100UX 00431084
T117 S306 OOR O19405 C15804
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3106 00010030
T117 BNA OOR O18004 C008MD
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3106 00010030
T117 BNA OOR O18004 C008MD
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3106 00010033
T116 BNA OOR O14005 C12904
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
3106 00010033
T116 BNA OOR O14005 C12904
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-thermostats-3100-series-3106-series-ciid-162032
