Thermostats
3004 Series

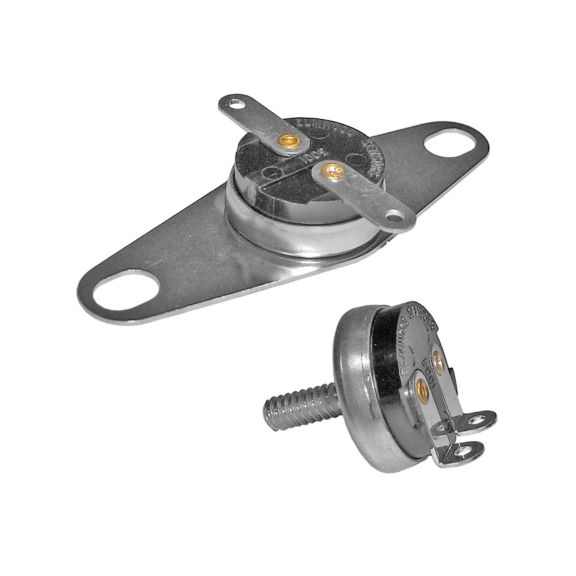

Non-hermetically sealed. Low profile. Tight tolerances & differentials. Pre-set & tamper proof. Metal sleeve insert/rivet construction
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The 3400 Series consists of a factory pre-set, single pole, single throw thermal switch available to open or close on temperature rise. The phenolic base is made dust-proof by a metal closure which also provides thermal and electrical isolation for the silver contacts. They offer a metal sleeve insert-rivet construction and higher spacing. It is also UL recognized and CSA certified.
Features
- Tight tolerances
- Tight differential
Potential Applications
- Computers
- Copy machines
- Aircraft
- Radar equipment
- Medical equipment
- Electronic control systems
Specifications
Technical Specifications
- Dielectric Strength
- MIL-STD-202, Method 301; 2000 Vac 60 Hz - Terminal to Case
- Thermostat Environmental Exposure Range
- -18 °C to 177 °C [0 °F to 350 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- Insulation Resistance
- MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
Standards & Certifications
- Agency Approvals and Standards
- UL
Operating Characteristics
- Operating Temperature
- -18 °C to 168 °C [0 °F to 335 °F]
Technical Specifications
- Dielectric Strength
- MIL-STD-202, Method 301; 2000 Vac 60 Hz - Terminal to Case
- Thermostat Environmental Exposure Range
- -18 °C to 177 °C [0 °F to 350 °F]
- Thermostat Contact Resistance
- MIL-STD-202, Method 307; 0.050 Ohm
- Insulation Resistance
- MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
Standards & Certifications
- Agency Approvals and Standards
- UL
Operating Characteristics
- Operating Temperature
- -18 °C to 168 °C [0 °F to 335 °F]
- Dielectric Strength : MIL-STD-202, Method 301; 2000 Vac 60 Hz - Terminal to Case
- Thermostat Environmental Exposure Range : -18 °C to 177 °C [0 °F to 350 °F]
- Agency Approvals and Standards : UL
- Thermostat Contact Resistance : MIL-STD-202, Method 307; 0.050 Ohm
- Operating Temperature : -18 °C to 168 °C [0 °F to 335 °F]
- Insulation Resistance : MIL-STD-202, Method 302; Cond. B - 500 MOhm - 500 Vdc applied
