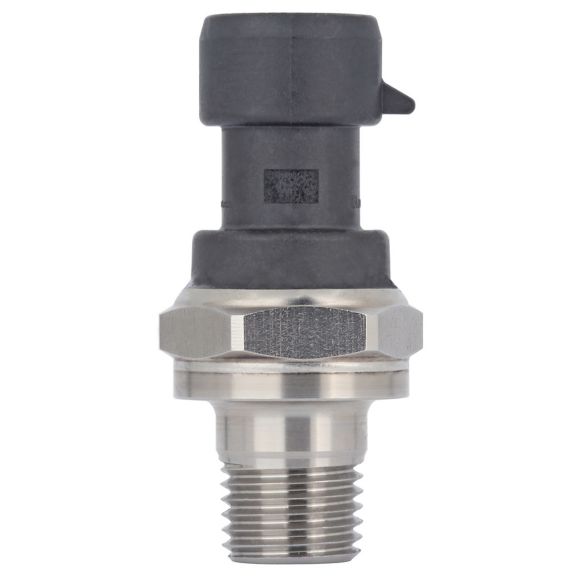

MIP Series

Value to Customers

• Cost-effective: Small size helps engineers to reduce design and manufacturing costs while maintaining the performance and reliability of the systems
• Accuracy: Total Error Band (TEB) as low as .10.75 % within -40°C to 125°C compensated temp range and wide pressure range enable engineers to enhance system performance by improving resolution and system accuracy Wide supply voltage range. variety of pressure ports, output options and wide operating temperature range simplify the use in the application High insulation resistance and dielectric strength I
• Ratiornetric output 0.5 to 4.5V output with sensor diagnostics for debugging internal and external failures
• Current output: 4 mA to 20 mA output Supports transmission of output signals over longer distances Regulated output Multiple voltage output variants available. Transportation variant consists of load dump protection. Over and reverse voltage protection
• EMC performance: Operates reliably in the presence of electromagnetic fields. such as wireless signals. RF communication, and electrical devices
• Hermetically welded design: Supports almost all media without the use of an internal seal. The sensors are designed to be used in harsh environments with aggressive media

Differentiation

• Analog and Digital output: Allows the sensor to be directly plugged into the customer’s circuitry withoutrequiring major design changes. This plug and play feature enable ease of implementation and system levelconnectivity.
• Diagnostics: Beneficial in applications where the sensor functionality and the need to know internal or externalfailure modes is critical.
• Great customer value: Multiple configuration possibilities provide flexibility of use in the application with noup front NRE or tooling charges.
• Durable: Provides the toughenvironmental capabilities needed, including long-term stability, insulationresistance and dielectric strength, external freeze-thaw resistance and EMC performance.
• Reduced current consumption: Helps to reduce energy costs and enhances product life if used in battery drivensystems. Sleep mode for ultra-low current consumption

Features

• Analog Output
• Pressure range:
  • 1 bar to 70 bar absolute
  • 15 psi to 1000 psi absolute
  • 8 bar to 70 bar sealed gage
  • 100 psi to 1000 psi sealed gage
• Rugged, stainless steel construction
• Ratiometric output: 0.5 Vdc to 4.5 Vdc
• Current output: 4 mA to 20 mA
• Regulated output: 1 Vdc to 6 Vdc, 0.25 Vdc to 10.25 Vdc, 0.5 Vdc to 4.5 Vdc and 1 Vdc to 5 Vdc
• Digital Output with 24 bits resolution in pressure and temperature output
• SPI output: 50 kHz to 1000 kHz
• I2C output: 100 kHz to 400 kHz
• Operating temperature: -40°C to 125°C
• Total Error Band:
  • Ratiometric output: ±0.75 %FSS to ±1.0 % FSS
  • Current, Digital and regulated output : ±1 %FSS to ±2.0 %FSS
• Industry-leading accuracy as low as ±0.15%FSS BFSL
• Long term stability: ±0.25 %FSS
• Radiated immunity: 100 V/m
• Drinking water approval: NSF/ANSI/CAN 61
• UL, CE, UKCA, RoHS, REACH compliant
• Insulation resistance: >100 MΩ, 1000 Vdc (in dry, non-ionized air)
• Mis-wiring protection

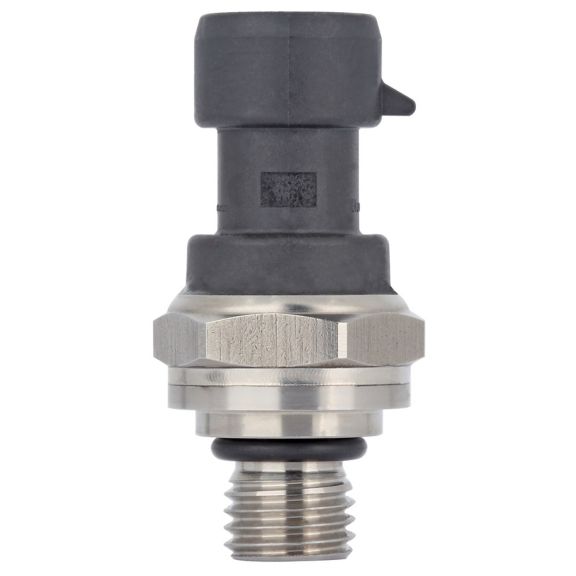

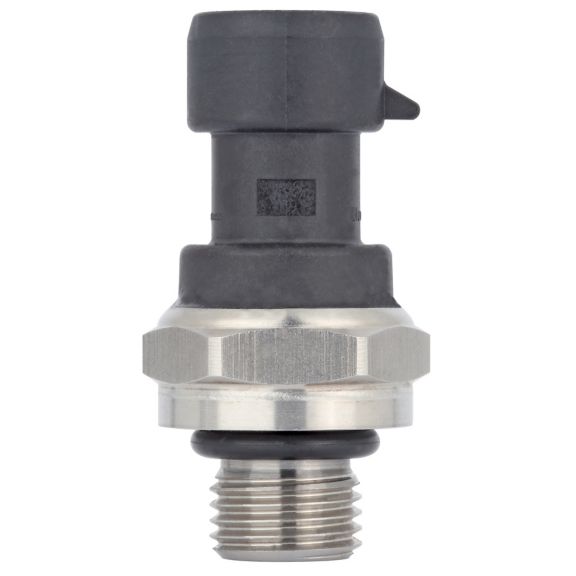

• Multiple industry-standard pressure port types provide greater flexibility and configurable options for hermetically sealed process connection
• Load dump protection for transportation application as per ISO7637-2 & ISO 16750-2
• Reverse voltage protection in regulated and current output variants
• Over voltage protection ±40 Vdc
• Surge immunity: ±1 kV line to ground per IEC 61000-4-5

Potential Applications

• Industrial: pumps (water, hydraulic fluids), compressors (compressed air), water meter, water pumps, Industrial automation and flow control, process (food, beverage, oil, gas,steam)
• HVAC/R: refrigerants (butane, propane, ammonia, CO₂, R134A, R407C, R410A, R448A/Solstice® N40, R32and R1234ze, R1234yf, glycol + water
• Transportation: Air system monitoring, hydraulic oil pressure monitoring, agriculture/marine/railway machinery and equipment of gasoline, diesel fuel, engine oil, brake fluid, coolants, CNG
• Medical: O₂, N₂, CO₂, N₂O, air in Heavy duty hospital and outpatient equipment such as hospital beds and massage machines
• Consumer: General appliances, sports equipment
