UPS module 24 V DC (5 A) for 5 A power supply unit

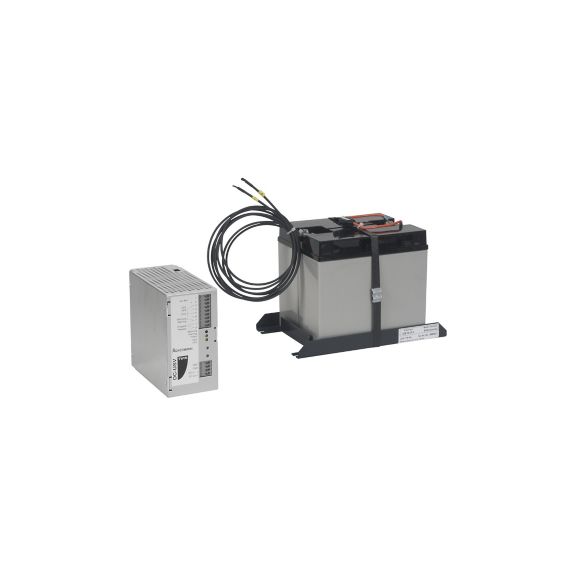

Uninterruptible power supply 24 V DC / 5 A (Online DC-UPS) as supplement to the 24 V DC power supply unit.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Part Number: 89954C6
Uninterrupted power supply 24 V DC / 5 A (Online DC-UPS) as supplement to the 24 V DC power supply unit. The UPS device is designed for set-up in a secure, absolutely uninterrupted 24-V constant voltage power supply and takes over the uninterrupted power supply of the connected call system (RA) in the system network with the 24-V DC power supply unit in case of a power failure by activating a battery module. Power failures and faults are reported in accordance with DIN VDE 0834-1: 2016-06. With available mains voltage, the consumers are supplied by the power supply unit and the batteries of the UPS device are charged at the same time.
Additional information
Wall mounting of the battery within sub-distribution.
For maximum system up time the battery has to be replaced every 4 years.
Accessories
89954CA - Housing surface-mounted for power supply unit / UPS 5 A.
89954C6E - Replacement rechargeable battery for DC-UPS 5 A / 7 Ah.
Others
- Ambient Temperature
- 0 °C ... 50 °C
- Weight (kg)
- approx. 0,4 kg (UPS module) kilogram
- Type Of Protection
- IP 20
- Output Voltage
- 19,5 V DC ... 26,5 V DC
- Mounting
- terminal for top-hat rail assembly (UPS module)
- wall mounting (battery)
- Input Voltage
- 22.5 ... 30 V DC voltage alternating current
- Dimensions
- W: 47 mm H: 138 mm D: 115 mm (UPS module)
- W:160 mm H: 180 mm D: 110 mm (battery)
- Bridging time
- 60 min (for 80 % load @ 20 °C)
- Battery Capacity
- 7 Ah
Others
- Ambient Temperature
- 0 °C ... 50 °C
- Weight (kg)
- approx. 0,4 kg (UPS module) kilogram
- Type Of Protection
- IP 20
- Output Voltage
- 19,5 V DC ... 26,5 V DC
- Mounting
- terminal for top-hat rail assembly (UPS module)
- wall mounting (battery)
- Input Voltage
- 22.5 ... 30 V DC voltage alternating current
- Dimensions
- W: 47 mm H: 138 mm D: 115 mm (UPS module)
- W:160 mm H: 180 mm D: 110 mm (battery)
- Bridging time
- 60 min (for 80 % load @ 20 °C)
- Battery Capacity
- 7 Ah
- Ambient Temperature : 0 °C ... 50 °C|
- Weight (kg) : approx. 0,4 kg (UPS module) kilogram|
- Type Of Protection : IP 20|
- Output Voltage : 19,5 V DC ... 26,5 V DC|
- Mounting : terminal for top-hat rail assembly (UPS module)|wall mounting (battery)|
- Input Voltage : 22.5 ... 30 V DC voltage alternating current|
- Dimensions : W: 47 mm H: 138 mm D: 115 mm (UPS module)|W:160 mm H: 180 mm D: 110 mm (battery)|
- Bridging time : 60 min (for 80 % load @ 20 °C)|
- Battery Capacity : 7 Ah|
