    Multi-Gas

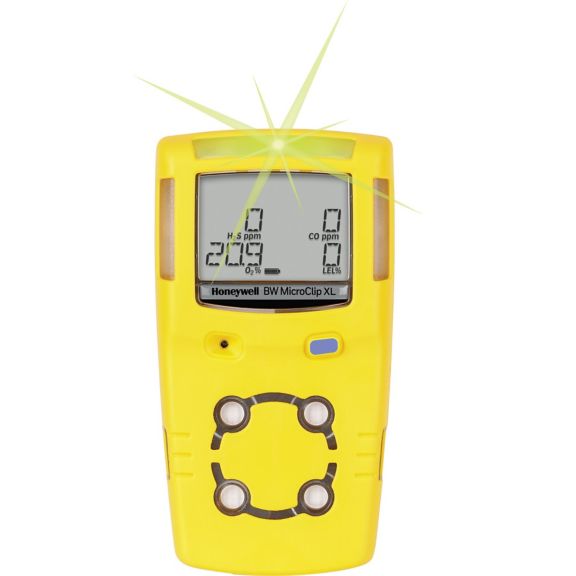

    GasAlertMicroClip XL 1-Gas Detector Yellow

    Honeywell BW™ MicroClip Series

    Overview
    The industrial Honeywell BW™ MicroClip Series is the world’s most popular multi-gas portable detector, delivering long runtime and reliability — plus small size, low cost and the easiest user experience. Overview: Small size. Easy to use. Reliable operation. Affordable protection. With that combination of benefits, it’s no wonder the Honeywell BW™ MicroClip Series is the world’s most popular multi-gas detector. Honeywell BW™ MicroClip Series features: • Simultaneously monitor for up to four gases including O2, H2S, CO and combustibles • Battery runtime of 18 hours in normal temperatures: cold weather guarantee of at least 12 hour runtime for full warranty period. • New IP68 rating for unmatched water protection, giving workers the confidence that it will stand up to challenging conditions. Features & Benefits: • NEW! Honeywell BW™ MicroClip X3 for extended reliability with 3-year warranty • Honeywell BW™ MicroClip XL for standard operation with 2-year warranty • Guaranteed to run an entire shift — even at -4°F (-20°C) • NEW! IP68 rating — unmatched water protection Compact, lightweight and easy to use — with one-button operation and no extensive training Device management with Honeywell Safety Suite. Quick Specs: • Flashing green IntelliFlash™ light for compliance at a glance • Reflex™ Technology ensures sensor responsiveness for safety, uptime and worker confidence
    Specifications

    Brand

    • Brand
      • BW

    Dimension & Weight

    • Instrument Size
      • 11.3 x 6.0 x 3.2 cm / 4.4 x 2.4 x 1.2 in

    Range

    • Humidity Range
      • 0%-95% percent
    • Sensor Range
      • H2S (0-100ppm)- CO (0-500ppm)- O2 (0-30%vol)- LEL (0-100%LEL)

    Alarm

    • Alarm Type
      • Audible, Visual, Vibrating

    Certifications

    • Standards & Certifications
      • CSA: Class I, Div. 1- Gr. A, B, C, D

    Datalogging

    • Datalogging
      • 16 hours at 15-second intervals

    Features & Benefits

    • Features & Benefits
      • No manual checks, no time spent inspecting… just a quick visual scan of the area provides assurance all is well in minutes, not hours. So safety managers can spend more time on the job, not auditing equipment

    Options

    • User Options
      • Confidence beep

    Warranty

    • Warranty
      • Full two‑year (Honeywell BW™ MicroClip XL) or three‑year (Honeywell BW™ MicroClip X3) warranty

    Wireless

    • Wireless Technology
      • BLE

    Additional Specifications

    • Gas Type
      • H2S, CO, O2, LEL

    Others

    • Maximum Temperature
      • 50 degree Celsius
    • Weight
      • 190 gram
    • Minimum Temperature
      • -20 degree Celsius

    Brand

    • Brand
      • BW

    Dimension & Weight

    • Instrument Size
      • 11.3 x 6.0 x 3.2 cm / 4.4 x 2.4 x 1.2 in

    Range

    • Humidity Range
      • 0%-95% percent
    • Sensor Range
      • H2S (0-100ppm)- CO (0-500ppm)- O2 (0-30%vol)- LEL (0-100%LEL)

    Alarm

    • Alarm Type
      • Audible, Visual, Vibrating

    Certifications

    • Standards & Certifications
      • CSA: Class I, Div. 1- Gr. A, B, C, D

    Datalogging

    • Datalogging
      • 16 hours at 15-second intervals

    Features & Benefits

    • Features & Benefits
      • No manual checks, no time spent inspecting… just a quick visual scan of the area provides assurance all is well in minutes, not hours. So safety managers can spend more time on the job, not auditing equipment

    Options

    • User Options
      • Confidence beep

    Warranty

    • Warranty
      • Full two‑year (Honeywell BW™ MicroClip XL) or three‑year (Honeywell BW™ MicroClip X3) warranty

    Wireless

    • Wireless Technology
      • BLE

    Additional Specifications

    • Gas Type
      • H2S, CO, O2, LEL

    Others

    • Maximum Temperature
      • 50 degree Celsius
    • Weight
      • 190 gram
    • Minimum Temperature
      • -20 degree Celsius
    • Maximum Temperature : 50 degree Celsius
    • Weight : 190 gram
    • Brand : BW
    • Minimum Temperature : -20 degree Celsius
    • Instrument Size : 11.3 x 6.0 x 3.2 cm / 4.4 x 2.4 x 1.2 in
    • Humidity Range : 0%-95% percent
    • Sensor Range : H2S (0-100ppm)- CO (0-500ppm)- O2 (0-30%vol)- LEL (0-100%LEL)
    • Alarm Type : Audible, Visual, Vibrating
    • Standards & Certifications : CSA: Class I, Div. 1- Gr. A, B, C, D
    • Datalogging : 16 hours at 15-second intervals
    • Features & Benefits : No manual checks, no time spent inspecting… just a quick visual scan of the area provides assurance all is well in minutes, not hours. So safety managers can spend more time on the job, not auditing equipment
    • User Options : Confidence beep
    • Warranty : Full two‑year (Honeywell BW™ MicroClip XL) or three‑year (Honeywell BW™ MicroClip X3) warranty
    • Wireless Technology : BLE
    • Gas Type : H2S, CO, O2, LEL
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    MCXL-000M-Y-CN
    MCXL - CO - Yellow - CN
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-CN
    MCXL - CO - Yellow - CN
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-EU
    GasAlert MicroClip XL CO (R,Y,EU)
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-EU
    GasAlert MicroClip XL CO (R,Y,EU)
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-NA
    GasAlert MicroClip XL CO (R,Y,NA)
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-NA
    GasAlert MicroClip XL CO (R,Y,NA)
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-OE
    MCXL - CO - Yellow - OE
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-OE
    MCXL - CO - Yellow - OE
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-OR
    MCXL - CO - Yellow - OR
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-OR
    MCXL - CO - Yellow - OR
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-UK
    GasAlert MicroClip XL CO (R,Y,UK)
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-000M-Y-UK
    GasAlert MicroClip XL CO (R,Y,UK)
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-00H0-B-AU
    MCXL - H2S - Black - AU
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-00H0-B-AU
    MCXL - H2S - Black - AU
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-00H0-B-BR
    MCXL - H2S - Black - BR
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-00H0-B-BR
    MCXL - H2S - Black - BR
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-00H0-Y-CN
    MCXL - H2S - Yellow - CN
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-00H0-Y-CN
    MCXL - H2S - Yellow - CN
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-00H0-Y-EU
    GasAlert MicroClip XL H₂S (R,Y,EU)
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
    MCXL-00H0-Y-EU
    GasAlert MicroClip XL H₂S (R,Y,EU)
    https://honeywell.scene7.com/is/image/Honeywell65/BW-MicroClip-XL-1800x1800
