    General Purpose Handheld

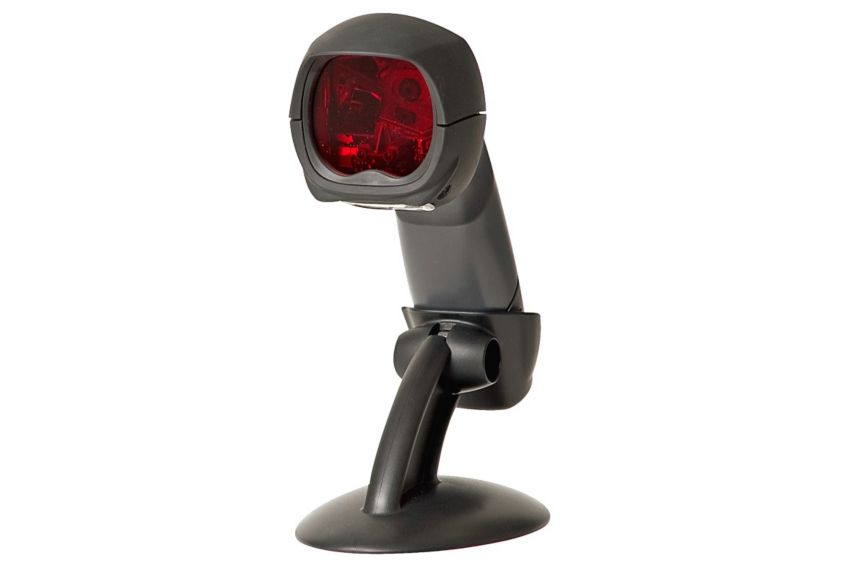

    Fusion 3780 Handheld/Hands-Free Scanner

    Fusion 3780 Handheld/Hands-Free Scanner

    Overview

    The Fusion™: 3780 laser barcode scanner is ideal for medium-volume retailers. It combines omnidirectional and single-line laser scanning into a lightweight, ergonomic handheld device that’:s also affordable. And the scanner&apos:s automatic stand detection lets you seamlessly switch from handheld to hands-free presentation scanning on the fly.

    • Automatic In-Stand Detection: Hands-free operation for presentation scanning reduces operator fatigue.
    • Sleep Mode With IR Wake Up: Multiple sleep modes reduce power consumption, extending life and lowering cost of operation.
    • Optional Integration of RF EAS Antenna: Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes.
    • Primary Omnidirectional Scan Pattern: Aggressive scanning in any orientation, increasing throughput.
    • Secondary Single-Line Scan Pattern: With a push of a button, switch to a targeted single-line for menu scanning applications.

    The Fusion 3780 is an affordable handheld devices that provides omnidirectional laser scanning plus single-line scanning capability for standard 1D and GS1 DataBar symbologies. The device’:s 20-line scan pattern provides superior scanning over existing single line handheld scanners making it ideal for medium-volume retailers, including specialty stores, pharmacies, liquor stores, and convenience stores.The Fusion 3780 scanner also offers attractive features and options that increase operator control, productivity and ease of use even further.Patented CodeGate™: technology lets you easily target the desired barcode and complete data transmission with the press of a single button. Automatic in-stand operation lets you scan barcodes hands free. The adjustable stand features 50 degrees of tilt and three locking positions so your cashiers can position the scanner for their individual comfort and optimal performance. Stabilized with a weighted metal base: hard-mount the stand to a checkout counter or wall. Optional integration of RF EAS Antenna increases efficiency by letting you simultaneously deactivate RF EAS tags and decode barcodes. Standard features such as Flash ROM, MetroSelect™: and MetroSet™:2 programming, and user replaceable cables protect your investment by enabling the Fusion 3780 scanner to grow with you and your application needs.

    Specifications

    Features

    • Features
      • CodeGate™ Technology
      • Flash ROM, MetroSelect™ and MetroSet™2 Programming
      • Omni-Directional & Single Line Scanning
      • Simultaneous Deactivation of RF EAS Tags & Barcode Decoding

    Dimensions

    • Overall Dimensions
      • 18.9 x 6.5 x 7.3 cm
      • 7.4 x 2.6 x 2.9 in

    Scanning Specifications

    • Depth of Field
      • 1 - 12 in
    • Scanning Range
      • Standard range (SR)
    • Scan Pattern
      • Omni-Directional
    • Skew
      • 60
    • Print Contrast
      • 35
    • Decode Capability
      • 1D
    • Pitch
      • 60

    Network

    • Bluetooth
      • No
    • Bluetooth Specifications
      • N/A

    Hardware

    • Wireless
      • No
    • Engine Type
      • 1D Laser
    • Host System Interface
      • KBW
      • OCIA
      • RS-232
      • RS-485
      • USB

    Electrical

    • Standby Power
      • 1

    Environmental

    • Operating Humidity
      • 5 - 95 %

    Standards & Approvals

    • Drop Specifications
      • Multiple 1.5 m (5 ft) drops

    Others

    • Form Factor
      • Gun Shape
    • Operating Power
      • 1.4 W
    • Input voltage
      • 5 V DC
    • Operating temperature
      • - 20 - 40 °C
    • Warranty Duration
      • 3 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Corded

    Features

    • Features
      • CodeGate™ Technology
      • Flash ROM, MetroSelect™ and MetroSet™2 Programming
      • Omni-Directional & Single Line Scanning
      • Simultaneous Deactivation of RF EAS Tags & Barcode Decoding

    Dimensions

    • Overall Dimensions
      • 18.9 x 6.5 x 7.3 cm
      • 7.4 x 2.6 x 2.9 in

    Scanning Specifications

    • Depth of Field
      • 1 - 12 in
    • Scanning Range
      • Standard range (SR)
    • Scan Pattern
      • Omni-Directional
    • Skew
      • 60
    • Print Contrast
      • 35
    • Decode Capability
      • 1D
    • Pitch
      • 60

    Network

    • Bluetooth
      • No
    • Bluetooth Specifications
      • N/A

    Hardware

    • Wireless
      • No
    • Engine Type
      • 1D Laser
    • Host System Interface
      • KBW
      • OCIA
      • RS-232
      • RS-485
      • USB

    Electrical

    • Standby Power
      • 1

    Environmental

    • Operating Humidity
      • 5 - 95 %

    Standards & Approvals

    • Drop Specifications
      • Multiple 1.5 m (5 ft) drops

    Others

    • Form Factor
      • Gun Shape
    • Operating Power
      • 1.4 W
    • Input voltage
      • 5 V DC
    • Operating temperature
      • - 20 - 40 °C
    • Warranty Duration
      • 3 yr
    • Brand
      • Honeywell
    • Power Connector Type
      • Corded
    • Form Factor : Gun Shape
    • Features : CodeGate™ Technology|Flash ROM, MetroSelect™ and MetroSet™2 Programming|Omni-Directional & Single Line Scanning|Simultaneous Deactivation of RF EAS Tags & Barcode Decoding
    • Overall Dimensions : 18.9 x 6.5 x 7.3 cm|7.4 x 2.6 x 2.9 in
    • Depth of Field : 1 - 12 in
    • Scanning Range : Standard range (SR)
    • Scan Pattern : Omni-Directional
    • Skew : 60
    • Print Contrast : 35
    • Decode Capability : 1D
    • Pitch : 60
    • Bluetooth : No
    • Bluetooth Specifications : N/A
    • Wireless : No
    • Engine Type : 1D Laser
    • Host System Interface : KBW|OCIA|RS-232|RS-485|USB
    • Operating Power : 1.4 W
    • Standby Power : 1
    • Input voltage : 5 V DC
    • Operating Humidity : 5 - 95 %
    • Operating temperature : - 20 - 40 °C
    • Drop Specifications : Multiple 1.5 m (5 ft) drops
    • Warranty Duration : 3 yr
    • Brand : Honeywell
    • Power Connector Type : Corded
