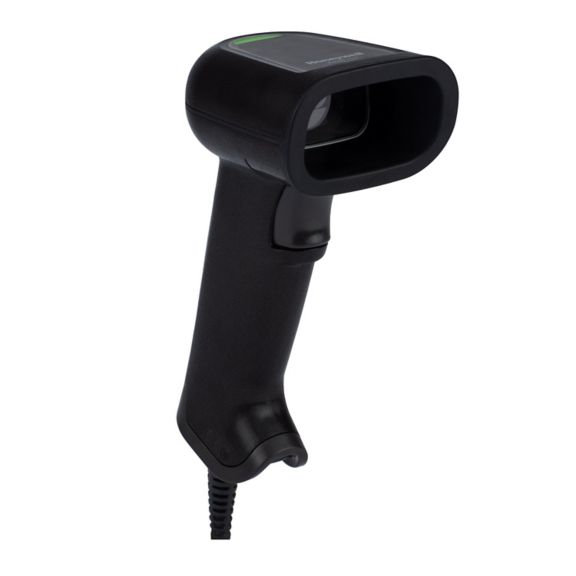

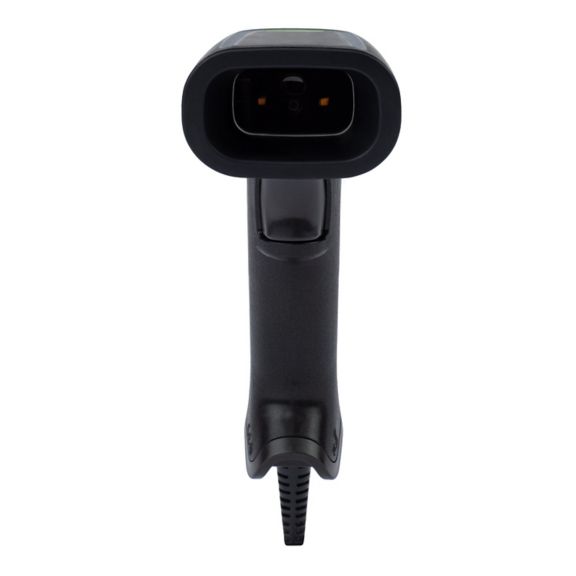

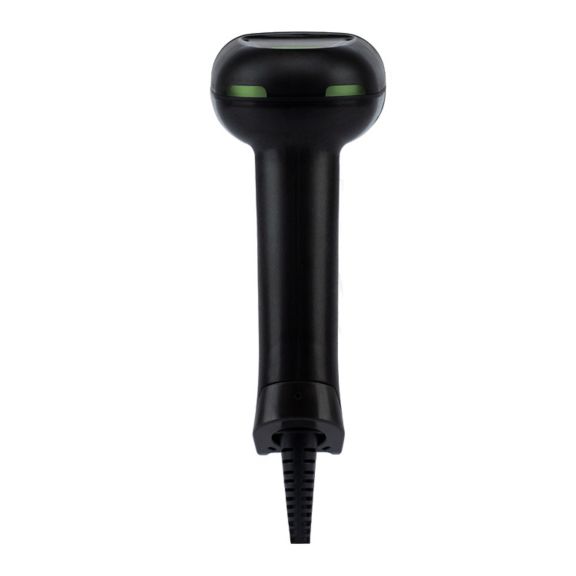

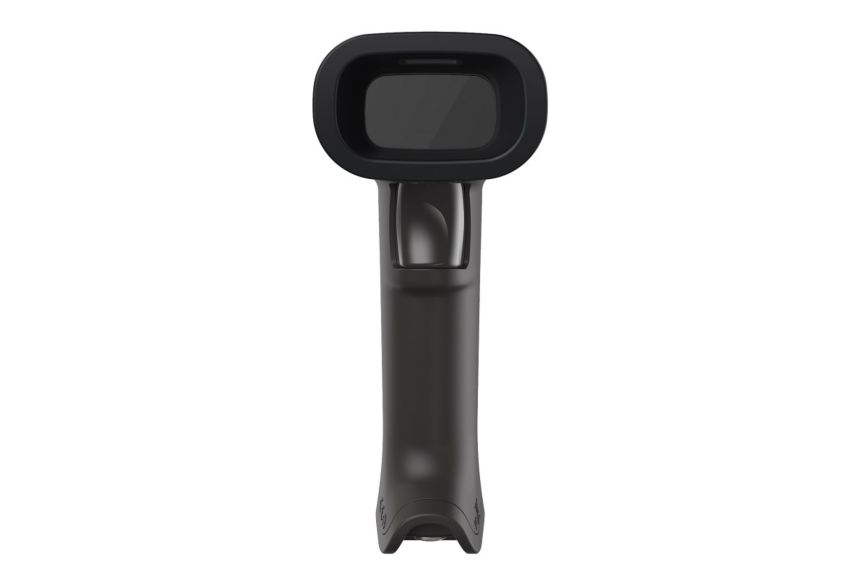

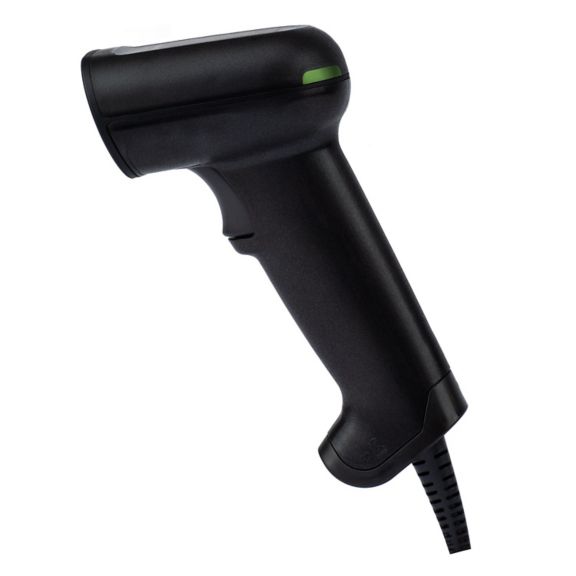

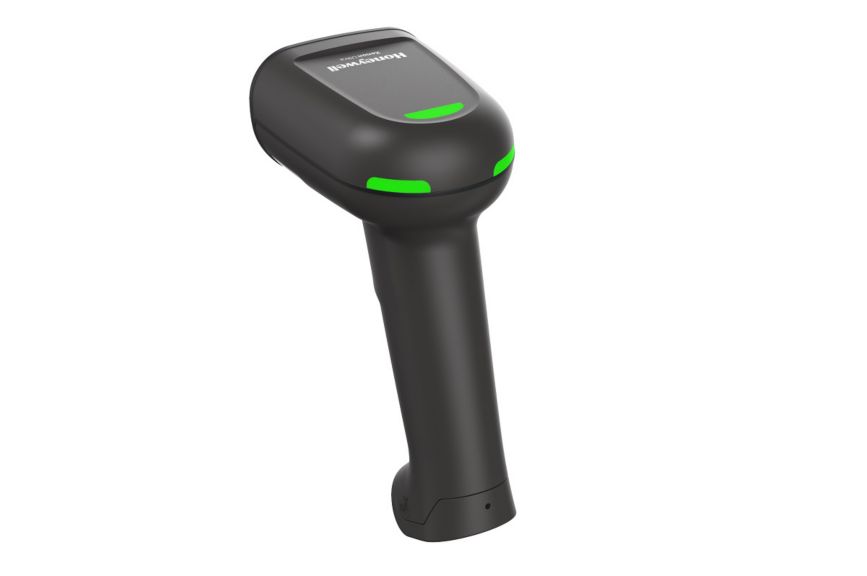

General Purpose Handheld
Xenon Ultra 1960 Scanner
The Xenon Ultra family of handheld scanners is a premium evolution of the widely known legacy Xenon and Xenon XP general purpose scanners, taking our industry-leading scan performance and reliability one step further.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Reliable ScanningTechnology ForwardUltra Performance
- The Xenon Ultra 1960 corded scanner is designed with green-dot LED aimers, helping users ensure accurate scans with each use.
- Warm-white illumination and print contrast down to 15% enables users to capture ultra high-density barcodes, even down to 2 mils.
- The green-dot LED aimer and white illumination aids in easier targeting and enhances scan accuracy on high-density and low-quality codes in high-throughput environments.
- With added IR capabilities, reduce annoying false activations, enabling illumination only when needed. IR even helps to reduce the gap between point-and-shoot and hands-free modes of operations.
- Xenon Ultra 1960 corded scanners are the first of its kind built on the Ultra platform. Taking the trusted performance of the Extreme Performance (XP) platform one step further.
- With optimized illumination and processor, the Xenon Ultra 1960 achieve snappier scanning and improved data captures – regardless of size, surface, marking method or contrast
- Utilize the cable from an existing Xenon XP 1950 on your new deployment of Xenon Ultra 1960.
- The Xenon Ultra 1960 corded scanner offers superior scanning performance even on damaged or poor-quality barcodes and is engineered to perform with a high degree of accuracy minimizing the need to rescan trouble barcodes and help support top-line revenues.
- A modernized design offers an improved aesthetic enhancing user experience and meets durability needs that businesses depend upon. The scanner housing has full product gasketing reducing the chance of water and dust ingress.
- The Honeywell Scanner Management Utility (SMU) creates a holistic solution helping to automate scanner deployment and updates in any environment.
Specifications
Features
- Features
- Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
- Object Detection (IR): Avoid false scanner wake ups to lower/prevent patient annoyance or disturbances
- Optimized Illumination
Dimensions
- Overall Dimensions
- 108.2mm x 70.4mm x 160.2mm
- 4.3in x 2.8in x 6.3in
Scanning Specifications
- Motion Tolerance
- For 13 mil UPC at optimal focusSR – 4 meters/secondHD – 3.4 meters/second
- Scan Pattern
- Area Imager
- Decode Capability
- 1D/2D
- Scanning Range
- Standard Range (SR) and High Density (HD) Capabilites
- Brightness
- 0 - 100,000 Lux
Hardware
- Aimer Type
- Green Dot LED
- Host System Interface
- Keyboard Wedge
- RS-232
- USB
- Wireless
- No, corded only connection
Environmental
- Storage Temperature Range
- -40°C to 70°C
- -40°F to 158°F
- Operating Humidity
- 0 to 95% relative humidity, non-condensing
Standards & Approvals
- Protection Ratings
- IP52
- Drop Specifications
- Engineered to withstand 50 1.8 m drops to concrete across operating temp range
- Tumble Specifications
- 2,000 0.5m tumbles
- 2,000 1.6ft tumbles
Others
- Application
- Assembly Line
- Component Tracking
- Electronic Manufacturing and Retail
- High and low throughput POS
- In-store inventory
- Self-Checkout
- Form Factor
- Gun Shape
- Operating Power
- 2.5W (500 mA @ 5V DC)
- Operating temperature
- 0°C to 50°C
- 32°F to 122°F
- Warranty Duration
- 5 years
- Power Connector Type
- Corded
Features
- Features
- Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
- Object Detection (IR): Avoid false scanner wake ups to lower/prevent patient annoyance or disturbances
- Optimized Illumination
Dimensions
- Overall Dimensions
- 108.2mm x 70.4mm x 160.2mm
- 4.3in x 2.8in x 6.3in
Scanning Specifications
- Motion Tolerance
- For 13 mil UPC at optimal focusSR – 4 meters/secondHD – 3.4 meters/second
- Scan Pattern
- Area Imager
- Decode Capability
- 1D/2D
- Scanning Range
- Standard Range (SR) and High Density (HD) Capabilites
- Brightness
- 0 - 100,000 Lux
Hardware
- Aimer Type
- Green Dot LED
- Host System Interface
- Keyboard Wedge
- RS-232
- USB
- Wireless
- No, corded only connection
Environmental
- Storage Temperature Range
- -40°C to 70°C
- -40°F to 158°F
- Operating Humidity
- 0 to 95% relative humidity, non-condensing
Standards & Approvals
- Protection Ratings
- IP52
- Drop Specifications
- Engineered to withstand 50 1.8 m drops to concrete across operating temp range
- Tumble Specifications
- 2,000 0.5m tumbles
- 2,000 1.6ft tumbles
Others
- Application
- Assembly Line
- Component Tracking
- Electronic Manufacturing and Retail
- High and low throughput POS
- In-store inventory
- Self-Checkout
- Form Factor
- Gun Shape
- Operating Power
- 2.5W (500 mA @ 5V DC)
- Operating temperature
- 0°C to 50°C
- 32°F to 122°F
- Warranty Duration
- 5 years
- Power Connector Type
- Corded
- Application : Assembly Line|Component Tracking|Electronic Manufacturing and Retail|High and low throughput POS|In-store inventory|Self-Checkout
- Form Factor : Gun Shape
- Features : Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.|Object Detection (IR): Avoid false scanner wake ups to lower/prevent patient annoyance or disturbances|Optimized Illumination
- Overall Dimensions : 108.2mm x 70.4mm x 160.2mm|4.3in x 2.8in x 6.3in
- Motion Tolerance : For 13 mil UPC at optimal focusSR – 4 meters/secondHD – 3.4 meters/second
- Scan Pattern : Area Imager
- Decode Capability : 1D/2D
- Scanning Range : Standard Range (SR) and High Density (HD) Capabilites
- Brightness : 0 - 100,000 Lux
- Aimer Type : Green Dot LED
- Host System Interface : Keyboard Wedge|RS-232|USB
- Wireless : No, corded only connection
- Operating Power : 2.5W (500 mA @ 5V DC)
- Storage Temperature Range : -40°C to 70°C|-40°F to 158°F
- Operating temperature : 0°C to 50°C|32°F to 122°F
- Operating Humidity : 0 to 95% relative humidity, non-condensing
- Protection Ratings : IP52
- Drop Specifications : Engineered to withstand 50 1.8 m drops to concrete across operating temp range
- Tumble Specifications : 2,000 0.5m tumbles|2,000 1.6ft tumbles
- Warranty Duration : 5 years
- Power Connector Type : Corded
