torque transducers

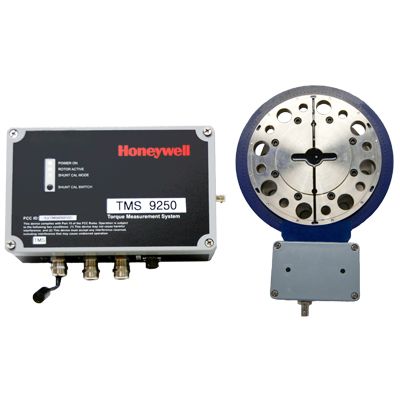

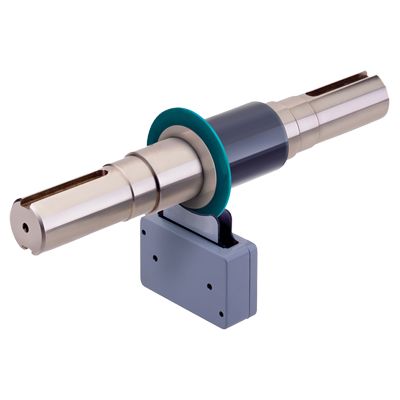

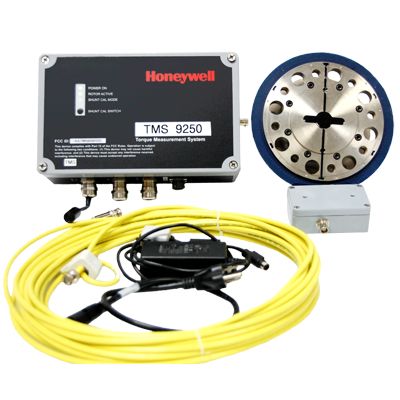

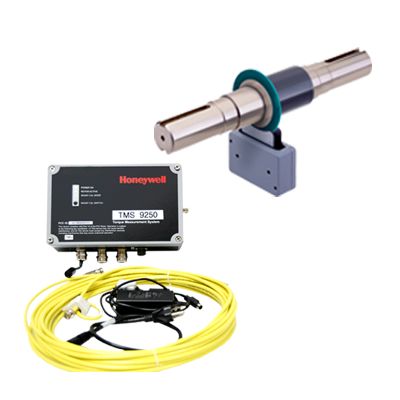

TMS9250
디지털 원격 측정, 비접촉. 0.05 %FS, 총 시스템 정확도. DIN 컴패니언 플랜지 호환 가능. 높은 비틀림 경도
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명
수많은 다양한 구성으로 제공되는 새로운 TMS 9250 디지털 원격측정 로터리 토크 측정 시스템은 특정 토크 측정 응용 분야의 요구사항을 충족하는 수많은 서로 다른 구성으로 출시되어 있습니다. Honeywell의 입증된 TMS 디지털 토크 플랫폼을 기반으로 제작된 TMS 9250은 다음과 같은 기능을 제공합니다:
명세서
Others
- UNSPSC 상품
- 힘 또는 토크 센서
- 회전 관성
- 0.0002kg-m2
- 0.001kg-m2
- 0.001lb-in-sec2
- 0.002lb-in-sec2
- 0.006kg-m2
- 0.009lb-in-sec2
- 0.015kg-m2
- 0.029kg-m2
- 0.05lb-in-sec2
- 0.094kg-m2
- 0.13lb-in-sec2
- 0.26lb-in-sec2
- 0.83lb-in-sec2
- 토크 유형
- 디지털 원격 측정 - 비접촉
- 토크 범위
- 10000Nm
- 1000Nm
- 1000ft-lb
- 100Nm
- 100ft-lb
- 2000Nm
- 2000ft-lb
- 200Nm
- 250ft-lb
- 3000Nm
- 3000ft-lb
- 300Nm
- 4000ft-lb
- 5000Nm
- 500Nm
- 500ft-lb
- 50ft-lb
- 8000ft-lb
- 출력
- 전압 ±10Vdc, 사인파 주파수 출력
- 주문 코드
- 92511-100FTLBS,1AE,56J,61A
- 92511-100NM,1AE,56J,61A
- 92511-200NM,1AE,56J,61A
- 92511-50FTLBS,1AE,56J,61A
- 92512-250FTLBS,1AE,56J,61A
- 92512-300NM,1AE,56J,61A
- 92512-500FTLBS,1AE,56J,61A
- 92512-500NM,1AE,56J,61A
- 92513-1KFTLBS,1AE,56J,61A
- 92513-1KNM,1AE,56J,61A
- 92513-2KNM,1AE,56J,61A
- 92514-2KFTLBS,1AE,56J,61A
- 92514-3KFTLBS,1AE,56J,61A
- 92514-3KNM,1AE,56J,61A
- 92515-4KFTLBS,1AE,56J,61A
- 92515-5KNM,1AE,56J,61A
- 92516-10KNM,1AE,56J,61A
- 92516-8KFTLBS,1AE,56J,61A
- 제품 규격
- Ø106,7mm[Ø4.2인치]
- Ø132,1mm[Ø5.2인치]
- Ø162,6mm [Ø6.4인치]
- Ø190,5mm[Ø7.5인치]
- Ø221mm[Ø8.7인치]
- Ø266,7mm[Ø10.5인치]
- 제품
- 92511-100
- 92511-100NM
- 92511-200NM
- 92511-50
- 92512-250
- 92512-300NM
- 92512-500
- 92512-500NM
- 92513-1K
- 92513-1KNM
- 92513-2KNM
- 92514-2K
- 92514-3K
- 92514-3KNM
- 92515-4K
- 92515-5KNM
- 92516-10KNM
- 92516-8K
- 정확도
- 시스템 판독 0.05% FS 일반
- 온도(작동)
- -40°C~85°C[-40°F~185°F](센서 및 CCM)
- 온도(보정)
- 5°C~75°C[40°F~170°F](센서 및 CCM)
- 온도 효과(출력)
- ±0.003%FS/°F
- 온도 효과(영점)
- ±0.003%FS/°F
- 시리즈 이름
- TMS9250
- 속도 등급
- 12000rpm
- 14000rpm
- 16000rpm
- 18000rpm
- 20000rpm
- 8000rpm
- 상승 시간
- 30~45분(준비 시간)
- 비틀림 경도
- 13,000,000lb-in/rad
- 1470kNm/rad
- 2,750,000lb-in/rad
- 205,000,000lb-in/rad
- 23000kNm/rad
- 311kNm/rad
- 35,000,000lb-in/rad
- 395,000lb-in/rad
- 3950kNm/rad
- 5,500,000lb-in/rad
- 621kNm/rad
- 80,000,000lb-in/rad
- 867,000lb-in/rad
- 9000kNm/rad
- 98kNm/rad
- 분해능
- 아날로그-디지털(A/D) 주파수, 24비트(0.01%FS), 일반 모드 주파수, 16비트(0.01%FS)
- 기관 승인 및 표준
- 모든 EMC 방출 및 감도 요구사항을 충족하는 FCC 및 CE 인증
- 과부하
- 100lb-ft
- 10k Nm
- 16kft-lb
- 1k Nm
- 1k lb-ft
- 200Nm
- 200lb-ft
- 20k Nm
- 2k Nm
- 2k lb-ft
- 400Nm
- 4k Nm
- 4k ft-lb
- 500lb-ft
- 600Nm
- 6k Nm
- 6k ft-lb
- 8k ft-lb
- UNSPSC 코드
- 41111934
Others
- UNSPSC 상품
- 힘 또는 토크 센서
- 회전 관성
- 0.0002kg-m2
- 0.001kg-m2
- 0.001lb-in-sec2
- 0.002lb-in-sec2
- 0.006kg-m2
- 0.009lb-in-sec2
- 0.015kg-m2
- 0.029kg-m2
- 0.05lb-in-sec2
- 0.094kg-m2
- 0.13lb-in-sec2
- 0.26lb-in-sec2
- 0.83lb-in-sec2
- 토크 유형
- 디지털 원격 측정 - 비접촉
- 토크 범위
- 10000Nm
- 1000Nm
- 1000ft-lb
- 100Nm
- 100ft-lb
- 2000Nm
- 2000ft-lb
- 200Nm
- 250ft-lb
- 3000Nm
- 3000ft-lb
- 300Nm
- 4000ft-lb
- 5000Nm
- 500Nm
- 500ft-lb
- 50ft-lb
- 8000ft-lb
- 출력
- 전압 ±10Vdc, 사인파 주파수 출력
- 주문 코드
- 92511-100FTLBS,1AE,56J,61A
- 92511-100NM,1AE,56J,61A
- 92511-200NM,1AE,56J,61A
- 92511-50FTLBS,1AE,56J,61A
- 92512-250FTLBS,1AE,56J,61A
- 92512-300NM,1AE,56J,61A
- 92512-500FTLBS,1AE,56J,61A
- 92512-500NM,1AE,56J,61A
- 92513-1KFTLBS,1AE,56J,61A
- 92513-1KNM,1AE,56J,61A
- 92513-2KNM,1AE,56J,61A
- 92514-2KFTLBS,1AE,56J,61A
- 92514-3KFTLBS,1AE,56J,61A
- 92514-3KNM,1AE,56J,61A
- 92515-4KFTLBS,1AE,56J,61A
- 92515-5KNM,1AE,56J,61A
- 92516-10KNM,1AE,56J,61A
- 92516-8KFTLBS,1AE,56J,61A
- 제품 규격
- Ø106,7mm[Ø4.2인치]
- Ø132,1mm[Ø5.2인치]
- Ø162,6mm [Ø6.4인치]
- Ø190,5mm[Ø7.5인치]
- Ø221mm[Ø8.7인치]
- Ø266,7mm[Ø10.5인치]
- 제품
- 92511-100
- 92511-100NM
- 92511-200NM
- 92511-50
- 92512-250
- 92512-300NM
- 92512-500
- 92512-500NM
- 92513-1K
- 92513-1KNM
- 92513-2KNM
- 92514-2K
- 92514-3K
- 92514-3KNM
- 92515-4K
- 92515-5KNM
- 92516-10KNM
- 92516-8K
- 정확도
- 시스템 판독 0.05% FS 일반
- 온도(작동)
- -40°C~85°C[-40°F~185°F](센서 및 CCM)
- 온도(보정)
- 5°C~75°C[40°F~170°F](센서 및 CCM)
- 온도 효과(출력)
- ±0.003%FS/°F
- 온도 효과(영점)
- ±0.003%FS/°F
- 시리즈 이름
- TMS9250
- 속도 등급
- 12000rpm
- 14000rpm
- 16000rpm
- 18000rpm
- 20000rpm
- 8000rpm
- 상승 시간
- 30~45분(준비 시간)
- 비틀림 경도
- 13,000,000lb-in/rad
- 1470kNm/rad
- 2,750,000lb-in/rad
- 205,000,000lb-in/rad
- 23000kNm/rad
- 311kNm/rad
- 35,000,000lb-in/rad
- 395,000lb-in/rad
- 3950kNm/rad
- 5,500,000lb-in/rad
- 621kNm/rad
- 80,000,000lb-in/rad
- 867,000lb-in/rad
- 9000kNm/rad
- 98kNm/rad
- 분해능
- 아날로그-디지털(A/D) 주파수, 24비트(0.01%FS), 일반 모드 주파수, 16비트(0.01%FS)
- 기관 승인 및 표준
- 모든 EMC 방출 및 감도 요구사항을 충족하는 FCC 및 CE 인증
- 과부하
- 100lb-ft
- 10k Nm
- 16kft-lb
- 1k Nm
- 1k lb-ft
- 200Nm
- 200lb-ft
- 20k Nm
- 2k Nm
- 2k lb-ft
- 400Nm
- 4k Nm
- 4k ft-lb
- 500lb-ft
- 600Nm
- 6k Nm
- 6k ft-lb
- 8k ft-lb
- UNSPSC 코드
- 41111934
- UNSPSC 상품 : 힘 또는 토크 센서
- 회전 관성 : 0.0002kg-m2|0.001kg-m2|0.001lb-in-sec2|0.002lb-in-sec2|0.006kg-m2|0.009lb-in-sec2|0.015kg-m2|0.029kg-m2|0.05lb-in-sec2|0.094kg-m2|0.13lb-in-sec2|0.26lb-in-sec2|0.83lb-in-sec2
- 토크 유형 : 디지털 원격 측정 - 비접촉
- 토크 범위 : 10000Nm|1000Nm|1000ft-lb|100Nm|100ft-lb|2000Nm|2000ft-lb|200Nm|250ft-lb|3000Nm|3000ft-lb|300Nm|4000ft-lb|5000Nm|500Nm|500ft-lb|50ft-lb|8000ft-lb
- 출력 : 전압 ±10Vdc, 사인파 주파수 출력
- 주문 코드 : 92511-100FTLBS,1AE,56J,61A|92511-100NM,1AE,56J,61A|92511-200NM,1AE,56J,61A|92511-50FTLBS,1AE,56J,61A|92512-250FTLBS,1AE,56J,61A|92512-300NM,1AE,56J,61A|92512-500FTLBS,1AE,56J,61A|92512-500NM,1AE,56J,61A|92513-1KFTLBS,1AE,56J,61A|92513-1KNM,1AE,56J,61A|92513-2KNM,1AE,56J,61A|92514-2KFTLBS,1AE,56J,61A|92514-3KFTLBS,1AE,56J,61A|92514-3KNM,1AE,56J,61A|92515-4KFTLBS,1AE,56J,61A|92515-5KNM,1AE,56J,61A|92516-10KNM,1AE,56J,61A|92516-8KFTLBS,1AE,56J,61A
- 제품 규격 : Ø106,7mm[Ø4.2인치]|Ø132,1mm[Ø5.2인치]|Ø162,6mm [Ø6.4인치]|Ø190,5mm[Ø7.5인치]|Ø221mm[Ø8.7인치]|Ø266,7mm[Ø10.5인치]
- 제품 : 92511-100|92511-100NM|92511-200NM|92511-50|92512-250|92512-300NM|92512-500|92512-500NM|92513-1K|92513-1KNM|92513-2KNM|92514-2K|92514-3K|92514-3KNM|92515-4K|92515-5KNM|92516-10KNM|92516-8K
- 정확도 : 시스템 판독 0.05% FS 일반
- 온도(작동) : -40°C~85°C[-40°F~185°F](센서 및 CCM)
- 온도(보정) : 5°C~75°C[40°F~170°F](센서 및 CCM)
- 온도 효과(출력) : ±0.003%FS/°F
- 온도 효과(영점) : ±0.003%FS/°F
- 시리즈 이름 : TMS9250
- 속도 등급 : 12000rpm|14000rpm|16000rpm|18000rpm|20000rpm|8000rpm
- 상승 시간 : 30~45분(준비 시간)
- 비틀림 경도 : 13,000,000lb-in/rad|1470kNm/rad|2,750,000lb-in/rad|205,000,000lb-in/rad|23000kNm/rad|311kNm/rad|35,000,000lb-in/rad|395,000lb-in/rad|3950kNm/rad|5,500,000lb-in/rad|621kNm/rad|80,000,000lb-in/rad|867,000lb-in/rad|9000kNm/rad|98kNm/rad
- 분해능 : 아날로그-디지털(A/D) 주파수, 24비트(0.01%FS), 일반 모드 주파수, 16비트(0.01%FS)
- 기관 승인 및 표준 : 모든 EMC 방출 및 감도 요구사항을 충족하는 FCC 및 CE 인증
- 과부하 : 100lb-ft|10k Nm|16kft-lb|1k Nm|1k lb-ft|200Nm|200lb-ft|20k Nm|2k Nm|2k lb-ft|400Nm|4k Nm|4k ft-lb|500lb-ft|600Nm|6k Nm|6k ft-lb|8k ft-lb
- UNSPSC 코드 : 41111934
