토크 변환기
모델 9300
클램프온 회전 토크 변환기 시스템. 샤프트를 토크 변환기로 변환
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명

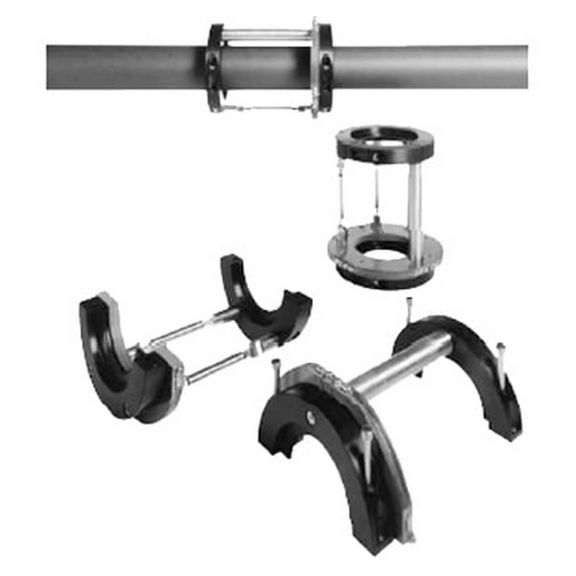

시리즈 9300 비틀림계는 가동 중단 시간이 거의 없을 수 있는 기계의 토크를 측정하는 데 이상적입니다. 사전 보정된 벤딩 빔이 있는 클램프-온 칼라를 빠르게 설치하면 I/O 샤프트가 즉각적인 토크 변환기로 변환됩니다. 9300 시리즈는 동일한 시스템의 반복 테스트를 수반하는 애플리케이션에 이상적임. 클램프 온 9300 시리즈는 토크를 감지하기 위해 헤비월 또는 솔리드 샤프트 주위의 카운터밸런스 칼라에 의해 양쪽 끝에 고정되는 사전 보정된 굽힘 빔을 사용합니다.
설치할 때마다 다양한 굽힘 빔 길이 중 하나를 사용하여 온보드 RF 송신기에 대한 특정 출력을 생성합니다. 그런 다음, 스트레인 게이지 출력은 RF 원격 측정 패키지를 통해 판독 장치 또는 제어 루프에 결합됩니다. 직경 2.5 in ~ 15.4 in의 높은 토크 범위 및 샤프트를 수용할 수 있는 다양한 색상 및 굽힘 빔이 제공됩니다. 실행 속도는 2,500 RPM에서 0 RPM까지입니다. 내장 송신기는 열악한 환경과 고진동을 위해 환경적으로 밀봉할 수 있습니다.
기능
- 0.15% 비선형성
- 단기 테스트에 적합
- 모든 샤프트를 토크 변환기로 변환
- 63.5[2.5 in ~ 391,16[15.4 in]의 샤프트 직경에 다양한 칼라 및 굽힘 빔 제공
- 2500RPM을 0 RPM 실행 속도로 낮춥니다.
- 혹독한 환경과 높은 진동에 적합
