압력 변환기
모델 811FM
2선 게이지/절대 압력 송신기. psig/a ~ 10,000 psig/a. 4 mA ~ 20 mA 출력. 0.25 % 정확도. 진정한 게이지 설계 밀폐형
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명

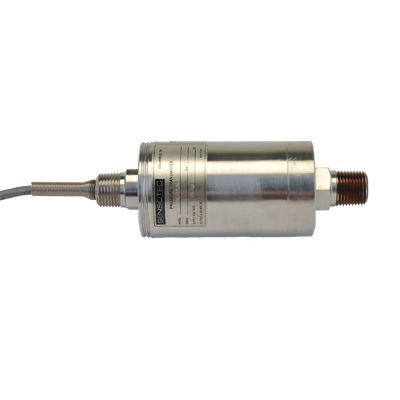

모델 811FM은 액체, 가스 또는 부식성 증기와 함께 사용하기 위한 용접 스테인리스 스틸 다이어프램을 갖춘 2선 송신기입니다. 모델 811FM 압력 변환기는 2,000psi 미만에서는 17-4 PH 스테인리스 스틸, 습식 재질로, 2,000psi 이상에서는 15-5 PH 스테인리스 스틸, 습식 재질로 제작되는 센서입니다. 이 모델에는 조정이 필요 없는 밀폐형 스테인리스 스틸 케이스가 있습니다. 이 변환기는 부식 및 충격에 강할 뿐만 아니라 역극성을 보호합니다. 4 mA ~ 20 mA 출력은 긴 케이블이 높은 신호 대 잡음비로 작동하게 합니다. 용이한 벌크헤드 장착을 위한 이중 파이프 나사 압력 피팅
기능
- 1psig/a~psig/a 범위
- 벌크헤드 장착
- 전체 용접, 스테인리스 스틸, "진정한 게이지 또는 절대적" 설계
- 방폭
- 정확도 0.25%
