LVDT
모델 S3C 시리즈
dc-dc 긴 행정 변위 트랜스듀서 고정형 유도 스프링 복귀 전기자. 범위 ±0.1in ~ ±0.4in. ±0.25% F.S. 비선형
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명

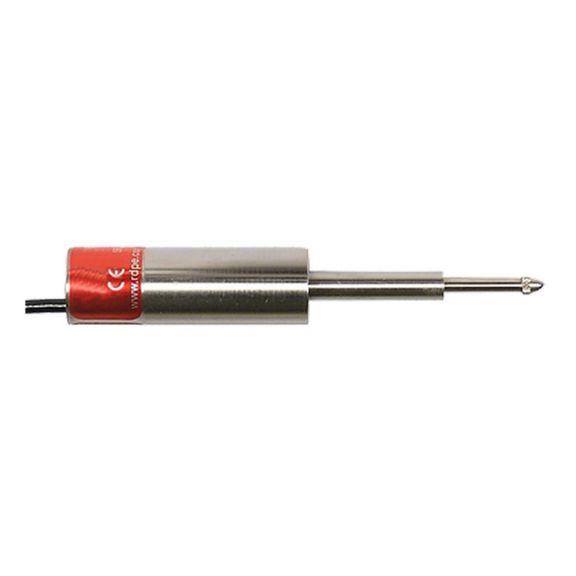

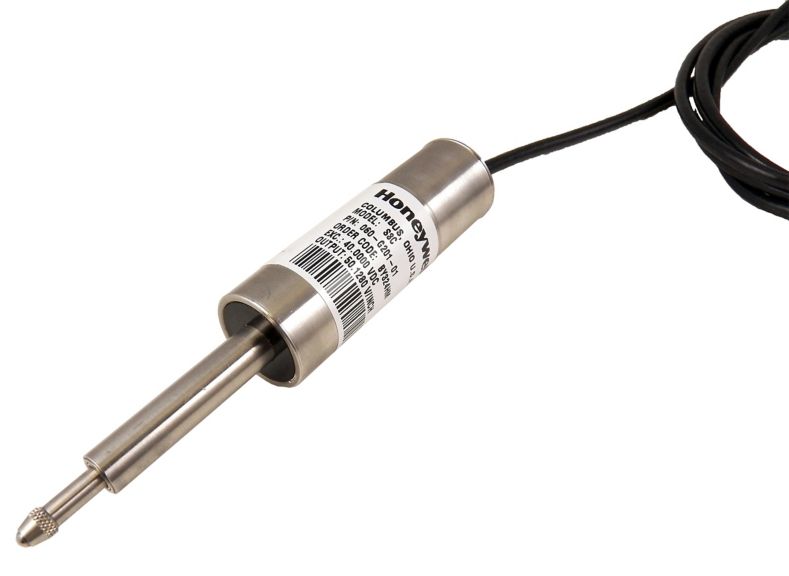

고정형 유도 스프링 복귀 전기자를 포함한 모델 S3C DC-DC 소형 변위 트랜스듀서의 전체 범위는 ±0.1in ~ ±0.4in이며 정확도는 풀 스케일의 ±0.25%입니다. 서플라이를 사용하는 ±5Vdc 0 또는 ~ 10Vdc의 출력은 ±12 Vdc ~ ±20Vdc의 이중 파워서플라이 또는 24Vdc ~ 40Vdc 단일 파워서플라이에서 모두 작동합니다. 장비는 -58°F~+158°F 온도에서 작동될 수 있고 스테인리스강 본체로 제작되며 6ft 길이의 다중도체 차폐 케이블이 있습니다.
기능
- 소형 설계
- 비용 효율적
- 0.25% 비선형성
- 스레인리스강 구조
- ±0.1in ~ ±0.4in 범위
- 무한 분해능
- 단일 또는 이중 공급 배선(현장 선택 가능)
- 고정 유도 스프링 반환식 전기자
- RoHS 비준수
