로드셀
모델 3170 시리즈
인장/압축 낮은 높이 로드셀. 용량 200lb ~ 100,000lb. 전체 구간범위 정확도 ±0.07%
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명

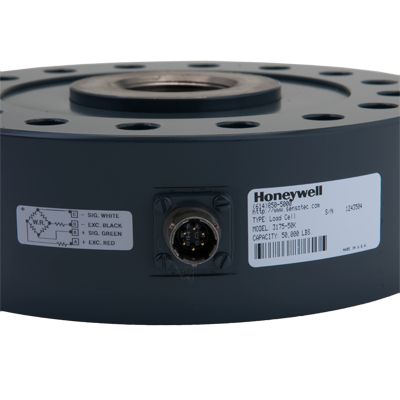

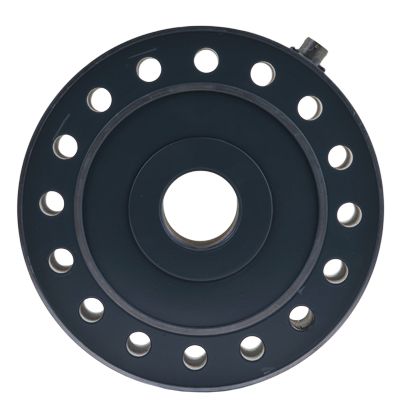

Honeywell의 비용 효과적인 범용 탄소강 팬케이크 로드셀은 토크, 굽힘 동작 및 측면 부하 등 외부 부하를 견디는 탁월한 구조적 기능이 범용 적용을 위한 높은 정확도와 결합된 것이 특징인 소형 설계를제공합니다.
인장/압축을 측정하기 위해 설계된 이 로드셀은 정확성이 최고 0.07%까지 강화되었고 측정 범위는 5lb ~ 100,000lb입니다. 극도로 높은 주기 계수 분야에 사용하기 위한 피로 내성 및 피로 비율 모델이있습니다. 특별한 수정이나 맞춤 설계가 필요합니다. 모델 3170 시리즈. 전화해 주셔서 고객님의 요구 사항에 대해 상담해 주십시오.
기능
- 영어 나사
- 향상된 정확도, 0.07%
- 낮은 굴절
- 내피로성 설계 및 향상된 성능
- 낮은 전체 구간범위 용량
- 로우 프로파일
- 외부 부하에 대한 감도 감소
당사에 연락하여 귀하의 요구조건에 대해 논의하십시오.
데이터시트
