토글 및 로커 스위치
TL 시리즈
군사 등급 토글. MIL-DTL-3950, UL, CSA, CE. 최대 20A(저항). 다양한 액추에이터, 액션, 단자 및 회로
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명

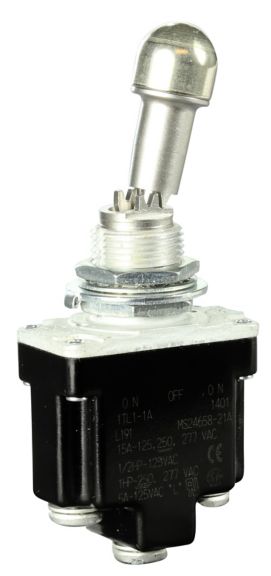

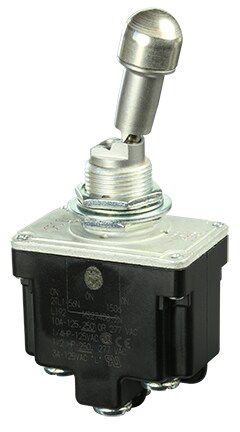

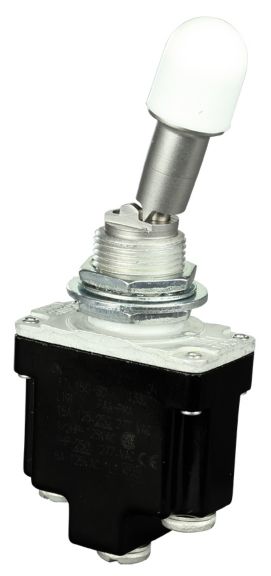

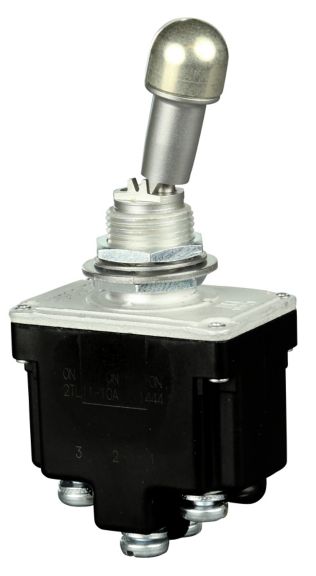

Honeywell 마이크로 스위치 TL 시리즈 토글 스위치는 밀폐형 토글 스위치에 대한 MIL-DTL-3950에 대한 군수품 인증 사양을 준수합니다. 품질 구성 특징에는 토글 레버와 부싱 사이, 덮개와 케이스 사이의 본드 씰이 포함됩니다.
내구성이 뛰어난 TL 시리즈 토글 설계는 많은 군수용, 항공우주용 및 신뢰성이 필수적인 기타 까다로운 응용 분야에 적합합니다. 이러한 응용 분야에는 패널에 기계적 충격, 진동 및 극단적인 온도뿐만 아니라 먼지, 습기 또는 수압이 가해지는 환경이 포함됩니다.
TL 시리즈 토글 스위치는 여러 응용 분야에 쉽게 통합할 수 있는 다양한 회로 및 극 옵션을 제공합니다. 군사 및 항공우주 분야의 오랜 역사를 가진 TL 시리즈 토글은 가장 까다로운 조건에서도 장시간의 작동 수명을 보장합니다.
