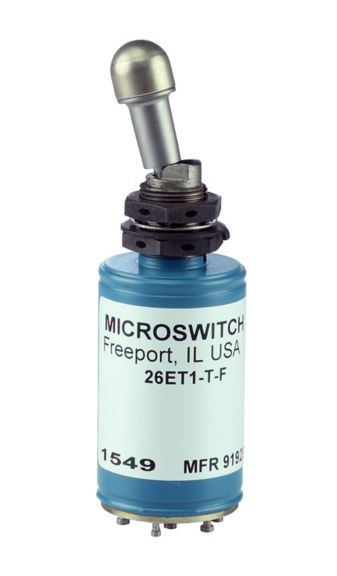

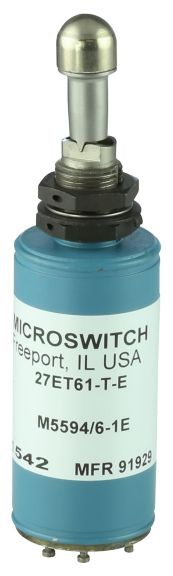

토글 및 로커 스위치
ET 시리즈
자기 방식 토글. MIL-S-5594. 최대 7A 파인 실버 접촉부. 나사, 도선 및 터렛 단자
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명
마이크로 스위치 ET 시리즈 토글 스위치는 전기 래칭 메커니즘이 있는 특수 유형의 토글 스위치입니다. 래칭 메커니즘(스위치의 내부 솔레노이드)은 토글 스위치가 수동으로 작동하면 순간 스위치 접점을 닫힌 상태로 유지하도록 설계되었습니다. 보조 세트 또는 원격 접점 세트는 스위치의 솔레노이드 회로를 열고 닫힌 상태로 유지된 스위치 접점을 여는 동안 토글 레버 메커니즘을 해제합니다.
다양한 응용 분야에서 사용할 수 있도록 ET 토글 스위치는 최대 4개의 극, 2개 또는 3개의 토글 레버 위치, 레버 잠금 장치가 있거나 없는 옵션으로 제공됩니다. 대부분의 ET 시리즈 토글 스위치는 인기 사이즈인 직경 15/32인치 홀에 장착됩니다. ET 토글 스위치는 SAE AS55941의 군사 표준에 맞게 설계되었으며 많은 스위치가 군사용 자격을 획득했습니다.
데이터시트
Name
Description
File Size
Date
Size
MICRO SWITCH ET Series Magnetically Held Toggle Switches
application/pdf 698.78 KB
9/14/2021
698.78 KB
매뉴얼 및 가이드
Name
Description
File Size
Date
Size
Aerospace and Defense Product Range Guide
application/pdf 19.65 MB
9/23/2024
19.65 MB
Basic, Toggle, and Rocker Switches Range Guide -
application/pdf 6.48 MB
10/25/2022
6.48 MB
브로슈어
Name
Description
File Size
Date
Size
Toggle Switch Comparison Table
application/pdf 267.57 KB
3/4/2024
267.57 KB
Toggle Switches Selection Guide
application/pdf 2.2 MB
2/29/2024
2.2 MB
Partners Providing Technical Safety and Productivity Solutions -
application/pdf 1.04 MB
4/11/2024
1.04 MB
어플리케이션 노트
Name
Description
File Size
Date
Size
Exploded view diagram of Honeywell sensors and switches in oil rig applications
application/pdf 6.36 MB
12/12/2024
6.36 MB
eBook
Name
Description
File Size
Date
Size
Redefining Road Rail & Rugged Applications
application/pdf 28.35 MB
12/20/2022
28.35 MB
인포그래픽
Name
Description
File Size
Date
Size
Micro Switch Toggle Switches - Infographic
application/pdf 1.13 MB
3/8/2024
1.13 MB
제품 사진
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Aerospace and Defense Product Range Guide
application/pdf 19.65 MB
9/23/2024
19.65 MB
Micro Switch Toggle Switches - Infographic
application/pdf 1.13 MB
3/8/2024
1.13 MB
Toggle Switch Comparison Table
application/pdf 267.57 KB
3/4/2024
267.57 KB
Toggle Switches Selection Guide
application/pdf 2.2 MB
2/29/2024
2.2 MB
Redefining Road Rail & Rugged Applications
application/pdf 28.35 MB
12/20/2022
28.35 MB
Exploded view diagram of Honeywell sensors and switches in oil rig applications
application/pdf 6.36 MB
12/12/2024
6.36 MB
Basic, Toggle, and Rocker Switches Range Guide -
application/pdf 6.48 MB
10/25/2022
6.48 MB
Partners Providing Technical Safety and Productivity Solutions -
application/pdf 1.04 MB
4/11/2024
1.04 MB
MICRO SWITCH ET Series Magnetically Held Toggle Switches
application/pdf 698.78 KB
9/14/2021
698.78 KB
Name
Description
File Size
Date
Size
MICRO SWITCH ET Series Magnetically Held Toggle Switches
698.78 KB
9/14/2021
Aerospace and Defense Product Range Guide
19.65 MB
9/23/2024
Basic, Toggle, and Rocker Switches Range Guide -
6.48 MB
10/25/2022
Partners Providing Technical Safety and Productivity Solutions -
1.04 MB
4/11/2024
Exploded view diagram of Honeywell sensors and switches in oil rig applications
6.36 MB
12/12/2024
Redefining Road Rail & Rugged Applications
28.35 MB
12/20/2022
Micro Switch Toggle Switches - Infographic
1.13 MB
3/8/2024
Product Number
제발 귀하의 계정을 기반으로 구매 가능한 부품 번호를 보려면 로그인하세요 로그인
Part Number
Description
Leaf Category
Thumbnail
Add to list
25ET61-6
ET Series Toggle Switch, 1 pole, Electrically held- 2 position, Leadwire terminal, Standard Lever, Military Part Number M55941-1
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
25ET61-6
ET Series Toggle Switch, 1 pole, Electrically held- 2 position, Leadwire terminal, Standard Lever, Military Part Number M55941-1
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
25ET78-S
ET Series Toggle Switch, 1 pole, Electrically held- 2 position, Screw terminal, Standard Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
25ET78-S
ET Series Toggle Switch, 1 pole, Electrically held- 2 position, Screw terminal, Standard Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
25ET79-S
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
25ET79-S
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
25ET79-S-G
ET Series Toggle Switch, 1 pole, Electrically held- 2 position, Screw terminal, Locking Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
25ET79-S-G
ET Series Toggle Switch, 1 pole, Electrically held- 2 position, Screw terminal, Locking Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
25ET79-S=JRH
25ET79-S SEALED OI SWITCH
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
25ET79-S=JRH
25ET79-S SEALED OI SWITCH
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
26ET1-T
ET Series Toggle Switch, 2 pole, Electrically held- 2 position, Solder T type terminal, Standard Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
26ET1-T
ET Series Toggle Switch, 2 pole, Electrically held- 2 position, Solder T type terminal, Standard Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
26ET31-2-G
ET Series Toggle Switch, 2 pole, Electrically held- 2 position, Leadwire terminal, Locking Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
26ET31-2-G
ET Series Toggle Switch, 2 pole, Electrically held- 2 position, Leadwire terminal, Locking Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
26ET65-T
ET Series Toggle Switch, 2 pole, Electrically held- 2 position, Solder T type terminal, Standard Lever, Military Part Number M55942-2
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
26ET65-T
ET Series Toggle Switch, 2 pole, Electrically held- 2 position, Solder T type terminal, Standard Lever, Military Part Number M55942-2
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
26ET86-2-G
ET Series Toggle Switch, 2 pole, Electrically held- 2 position, Leadwire terminal, Locking Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
26ET86-2-G
ET Series Toggle Switch, 2 pole, Electrically held- 2 position, Leadwire terminal, Locking Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
27ET109-T
ET Series Toggle Switch, 2 pole, Electrically held- 3 position, Solder T type terminal, Standard Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
27ET109-T
ET Series Toggle Switch, 2 pole, Electrically held- 3 position, Solder T type terminal, Standard Lever
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-26et1-t-highres-ciid-160957
