속도 센서
SNDH-H 시리즈
견고한 스테인리스강 또는 플라스틱 하우징. 다중 탐침 길이, 커넥터 옵션. 디지털 출력. 영점 속도
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명

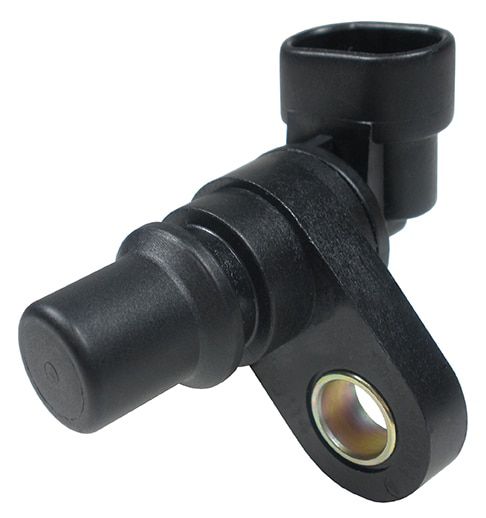

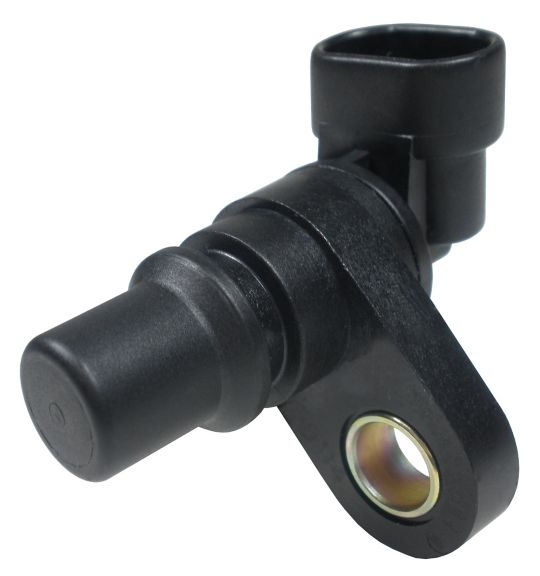

SNDH-H 시리즈 홀 이펙트 속도 센서는 자기적으로 편향된 홀 이펙트 통합 회로를 이용하여 철금속 물질의 움직임을 정확하게 감지합니다. 특수 설계된 IC(통합 회로)와 영구 자석은 견고한 탐침형 패키지에 밀폐되어 있습니다. 철금속에 가까이 가면 영구 자석의 플럭스 밀도가 변화합니다.
이는 홀 IC에 의해 검출됩니다. 예를 들어, 센서를 회전하는 기어 휠의 원주에 배치하면 센서는 톱니와 공간을 탐지하여 기어 휠의 속도에 비례하여 진동수와 함께 디지털 펄스 출력을 제공합니다. 최적의 성능은 목표 물질, 형상 및 속도, 센서/목표 간극 및 환경 온도와 같이 조합하여 고려해야 하는 변수에 따라 달라집니다.
