힘 센서

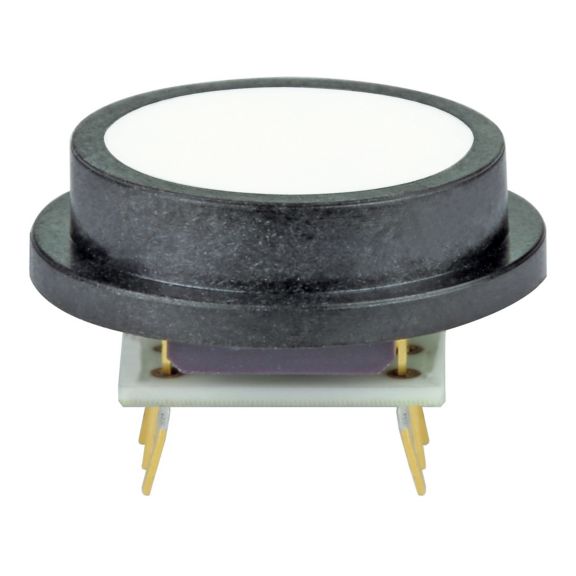

1865 시리즈
액체 매체 psi 압력 범위 비증폭, 보정됨. 전류 자극 mA 또는 전압 자극 mV 출력
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
제품설명
1865 시리즈는 고성능 트랜스듀서로 의료 및 특수 OEM 분야의 요구사항에 부응하여 특별히 설계됐습니다. 이 제품은 레이저 절삭 보정을 통해 정전류 또는 전압 공급으로 작동하도록 지정할 수 있습니다.
이 제품은 플라스틱 패키지에 장착된 반도체를 이용한 압전저항체 압력 트랜스듀서를 이용합니다. 주입 펌프 등과 같이 유연막으로 센서에 힘을 가하는 응용 분야에서, 정밀한 높이 실리콘 다이어프램은 긴 수명을 제공하고 오랜 힘 또는 로드셀 트랜스듀서의 신뢰할 수 있는 대안입니다. 실리콘 고무 다이어프램을 이용하기 때문에 이 제품은 일부 액체 매질 응용 분야와 호환됩니다.
1865 시리즈를 사용하면 중환자용 의료 기기에서 폐색 압력 또는 침윤 감지와 같은 중요한 안전 기능을 사용할 수 있습니다. 압력 데이터는 의료진에게 환자의 순환계통의 상태에 관한 유용한 진단 정보를 제공할 수 있습니다. 이 힘/압력 트랜스듀서는 시린지 펌프 등의 기타 의료 투여 장치와 함께 사용되어 안전성과 정확도를 향상시킬 수 있습니다.
