ロードセル

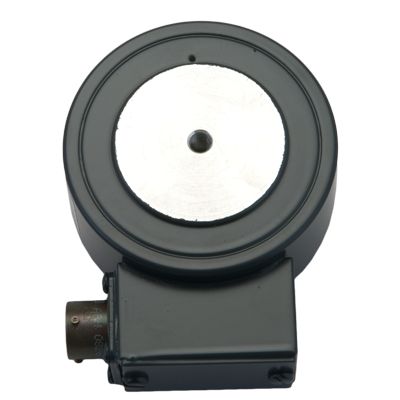

モデル 3397シリーズ

張力/圧縮、薄型のロードセル、25lb、50lb、100lb、200lb、300lbの容量、フルスケール精度 ±0.07%

製品概要
Model 3397 Series

ハネウェルの費用効果の高い汎用カーボン鋼製パンケーキ型ロードセルは、トルク、曲げ動作、側面荷重などの余分な負荷に耐えられる優れた構造能力と汎用用途での高い精度を兼ね備えたコンパクトな設計になっています。

張力/圧縮を測定する設計を持つこれらのロードセルは0.07%という高精度を誇り、測定レンジは5lb~100,000lbです。超高サイクル数のアプリケーションで使用できる耐疲労性の疲労寿命モデルもご利用いただけます。特別な変更が必要な場合、またはカスタム設計したモデル3397シリーズが必要な場合は、当社までお問い合わせください。

機能
  • 精度:0.05%
  • 範囲:25lb~300lb
  • 外部からの荷重に対する低感度
  • 低いたわみ
  • 温度補償素子を埋め込み
