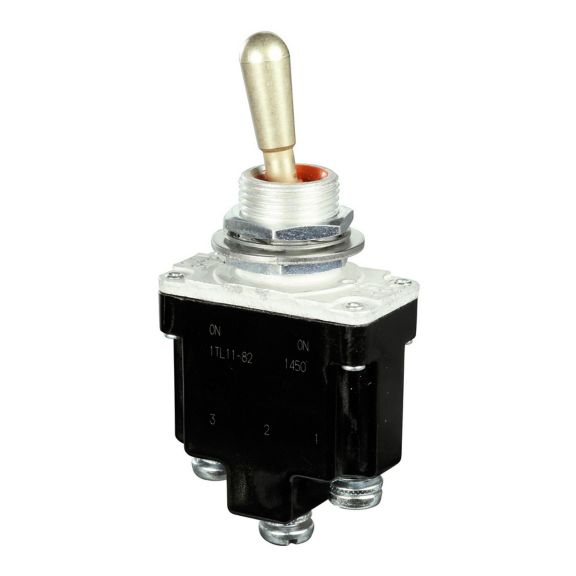

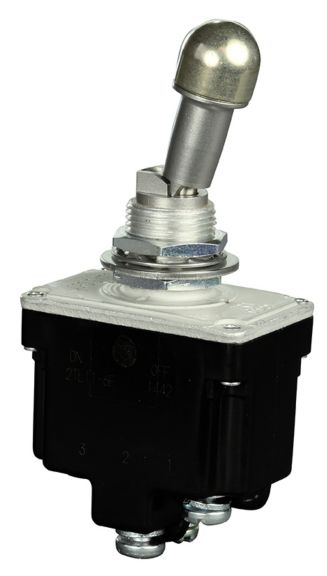

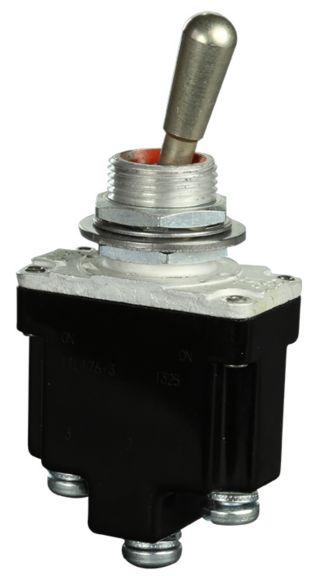

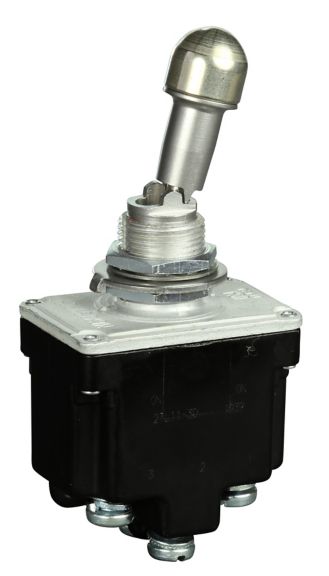

トグルスイッチ&ロッカースイッチ
TLシリーズ
ミリタリーグレード トグル MIL-DTL-3950、UL、CSA、CE 最大 20A（抵抗） 多様なアクチュエータ、アクション、終端、回路
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
製品概要
ハネウェルのMICRO SWITCH TLシリーズのトグルスイッチは、密封したトグルスイッチの仕様であるMIL-DTL-3950に基づいて軍用認定されたスイッチです。品質構造の特長には、トグルレバーとブッシュ間、カバーとケース間の接着シールが含まれます。
TLシリーズトグルの堅牢な設計は、多くの軍事、航空宇宙、その他、高信頼性が不可欠である要求の厳しいアプリケーションに最適です。これらのアプリケーションは、パネルが、機械的衝撃、振動、極端な温度だけでなく、埃、飛沫、ホースからの水にされされる環境で使用されます。
TLシリーズトグルスイッチは、多様なアプリケーションに簡単に統合するため、様々な回路と極のオプションを提供します。軍事および航空宇宙アプリケーションで利用されてきた長い歴史を誇るTLシリーズトグルは、過酷な条件下で、長寿命かつ信頼性の高いパフォーマンスを実現してきました。
