基本的なスイッチ

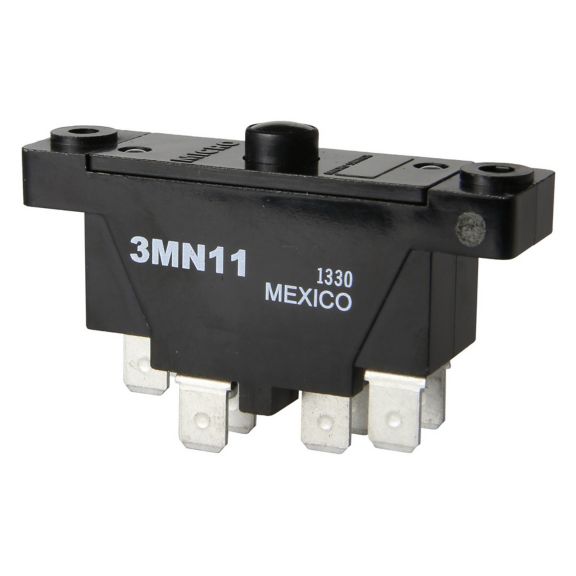

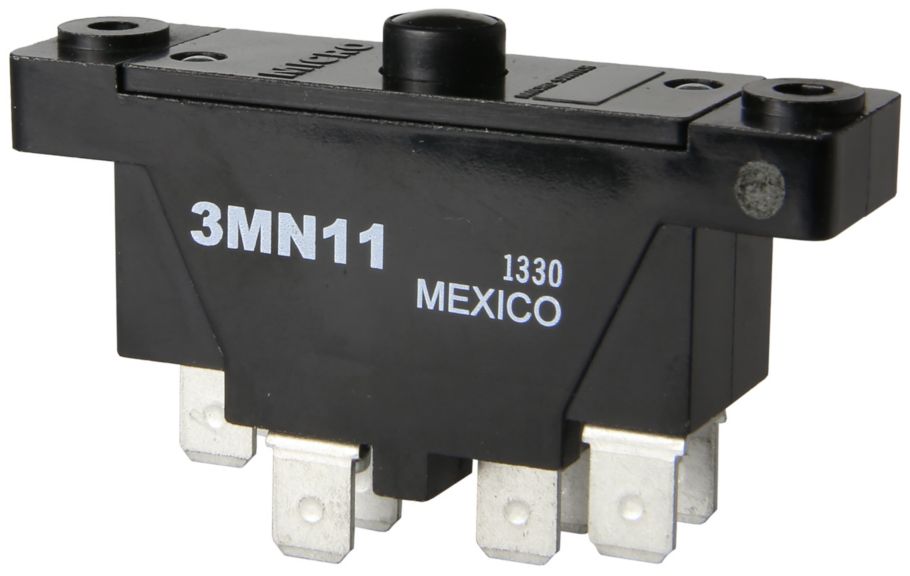

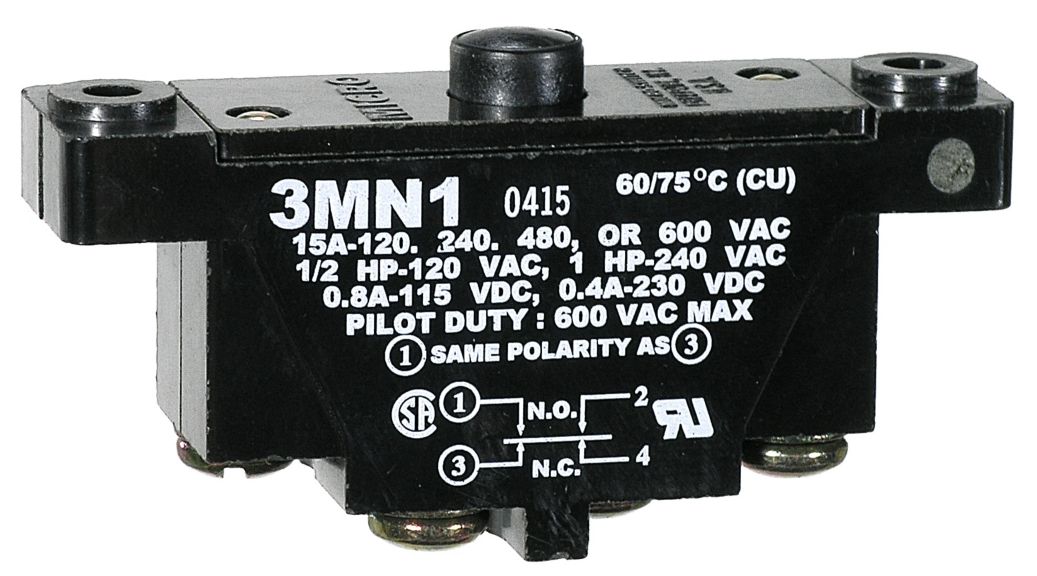

3MNシリーズ
AC 15A（ULとCSA）、DC定格 ダブルブレーク接点 スクリュー式またはクイックコネクト端子、54.0mmセンター トップマウント
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
製品概要
MNシリーズの単極二重投ダブルブレークスイッチは、ギャング取り付けが容易で、工作機械、プレス、その他の装置の制限または制御メカニズムで使用されます。
データシート
