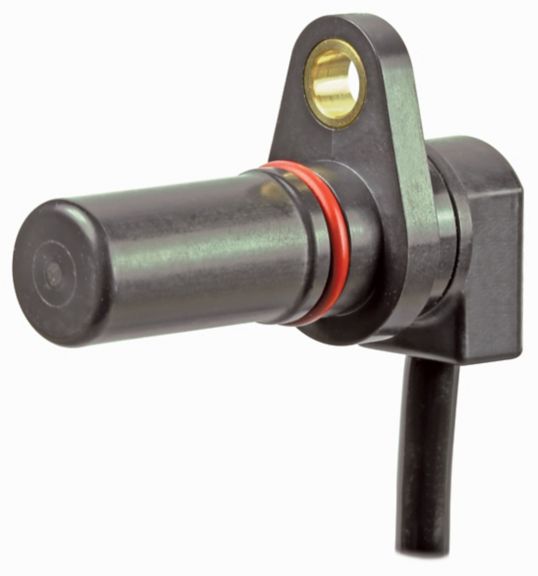

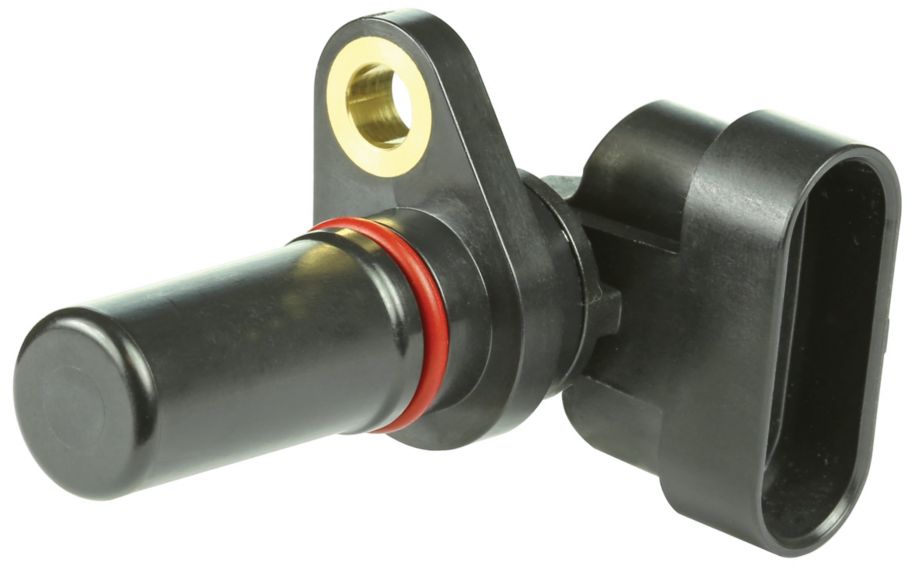

速度センサ
SNG-Qシリーズ
直交出力付きホール効果速度および方向センサ 供給電圧：4.5Vdc～26Vdc 動作周波数：3Hz～20kHz
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
製品概要
ハネウェルのSNG-Qシリーズ直交速度および方向センサは、速度と方向の両方の情報を提供するように設計されています。速度情報は、デジタル方形波出力から提供されます。方向は、信号90°位相が互いにシフトされた直交出力を使用して提供されます。直交出力では、ターゲット方向は、出力リード/ラグ位相シフトによって 決定されます。
お客様にとっての価値
- 高信頼性：IP69K定格、EMC放射イミュニティ保護、Oリングシール、および広い動作温度範囲：
- 装置のアップタイム向上
- サービスコストの最小化
- 電気ノイズ耐性規格
- 水分侵入保護規格
- 広い動作温度範囲
- お客さまのブランドエクィティの大幅な強化を図ります。
- 高コスト競争力：プラットフォームベースのアプローチを使用して設計・製造されており、コスト競争力の向上と機械・電気的な構成変更可能性を提供します。
- 精度向上：デュアル差動ホール効果センサIC技術により、小さなターゲット固定具を検知する強化機能を実現します。
- 適応性：幅広い動作温度範囲、堅牢な電気ノイズ耐性、および強化された耐環境シールの機能により、アプリケーションにおける用途の柔軟性が実現します。
- 取付時間の短縮：圧力アプリケーション用のOリングシールと固定取付けフランジは、留め具1つを使用するだけの簡単な取付け作業を実現します。
