    磁気センサ

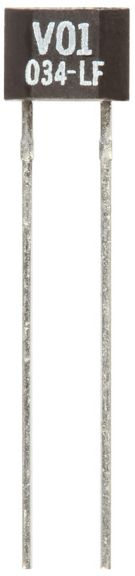

    VF401

    2線式MRファインピッチリング マグネットセンサIC フラットなTO-92スタイルのパッケージ 向上した感度、標準 ±7G デジタルソース出力

    製品概要

    VF401は、ファインピッチリングマグネットを検知するよう設計された、ミニチュア、フラット、TO-92スタイル、プラスティックパッケージ入りで電流出力付きの高パフォーマンス、デジタルの2線式MR(磁気抵抗)センサです。

    独自のVF401ブリッジアレイ(特許番号6,297,628)は、センサ信号や精度のロスを低減し、ターゲットとセンサとの間のエアギャップを広げられるよう調整されています。

    VF401は、ランアウト(リングマグネットの内径または外径に対するセンサ位置のシフト)に対し強くなっています。また傾斜公差(センシング素子とリングマグネットの並行ポジショニングからの偏差)にも強く、従来のリングマグネットセンサが2°~3°であるのに対して最大10°まで対応でき、ねじれ(極遷移に対するブリッジランナー完全角度位置の偏差)に対しても高い許容性を示します。
