磁気センサ
SS400、SS500シリーズ
低ガウス双極ホール効果デジタルセンサIC フラットなTO-92 スタイル、SOT-89Bパッケージ デジタルシンク出力
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
製品概要
SS400、SS500シリーズICは、永久磁石、電磁石の磁場により動作する小型多目的デジタルホール効果デバイスで、N極とS極に交互に反応するか、S極だけに反応するように設計されています。バイポーラ、ラッチング、ユニポーラ磁石がご利用いただけます。
バンドギャップ調整によって、3.8 Vdc ～ 30 Vdcの供給電圧範囲で、安定度の高いオペレーションが実現しました。これらセンサはシンク出力20 mAの継続が可能で、最大50 mAで循環します。3.8 Vなので低電圧のアプリケーションにも使用可能です。
デジタル、オープンコレクタシンク出力は、様々な電子回路と簡単に連動できます。
信頼性の高い製品と一貫した品質を提供するために、これらの製品は25°C [75°F]と125°C [257°F]の両方で検査を受けています。すべてのカタログリストは最大150 °C [302 °F]の動作に最適です。
柔軟性のある設計のリード線とパッケージングのオプションは次の通りです。
- ストレート リード線、長さ 14.99mm [0.59in] （バルクまたはアンモパック テープインボックス）
- ストレート リード線、18.7mm [0.735in] ロング（バルク）
- 成形リード線、長さ 14.99mm [0.59in]（バルクまたはアンモパック テープインボックス）
- SOT-89B
Data Sheet
Name
Description
File Size
Date
Size
SS400 Series, SS500 Series Bipolar, Latching, and Unipolar Hall-effect Digital Position Sensor ICs
application/pdf 1.27 MB
8/13/2025
1.27 MB
Manuals and Guides
Name
Description
File Size
Date
Size
Position Sensors Product Range Guide
application/pdf 4.85 MB
8/13/2025
4.85 MB
Installation Instructions
Name
Description
File Size
Date
Size
SS400 Series Temperature Compensated Digital Hall-Effect Sensor ICs
application/pdf 347.42 KB
8/13/2025
347.42 KB
CAD Model
Name
Description
File Size
Date
Size
Magnetic Sensor IC Flat TO-92-Style CAD Model
application/zip 13.27 KB
7/15/2021
13.27 KB
Magnetic Sensor IC SOT-89B CAD Model
application/zip 32.96 KB
7/15/2021
32.96 KB
Magnetic Sensors CAD Models - grouped
application/zip 130.4 KB
7/15/2021
130.4 KB
Brochure
Name
Description
File Size
Date
Size
Controlling the Future with Technology
application/pdf 11.81 MB
8/11/2025
11.81 MB
Embedded Products in Hospital Applications
application/pdf 4.68 MB
2/11/2025
4.68 MB
Sensing Solutions For Industrial Applications
application/pdf 16.68 MB
8/11/2025
16.68 MB
Embedded Products in Hospital Applications
application/pdf 4.71 MB
8/11/2025
4.71 MB
Technical Note
Name
Description
File Size
Date
Size
Magnetic Sensor IC Product Line Card
application/pdf 480.99 KB
8/13/2025
480.99 KB
Achieving High Sensitivity and Magnetic Stability without the Use of Chopper Stabilization in Latching Hall-Effect Sensorsfor Brushless DC Motor Applications Technical Note
application/pdf 117.53 KB
8/13/2025
117.53 KB
Magnetic Sensor IC Selection Chart
application/pdf 383.21 KB
8/13/2025
383.21 KB
White Paper
Name
Description
File Size
Date
Size
Non-chopper-stabilized versus chopper-stabilized bipolar latching Hall-effect sensors
application/pdf 950.68 KB
8/12/2025
950.68 KB
How to select Hall-effect sensors for brushless dc motors
application/pdf 379.18 KB
8/12/2025
379.18 KB
Application Note
Name
Description
File Size
Date
Size
Construction Vehicles Application Note
application/pdf 984.29 KB
8/13/2025
984.29 KB
Defence Ground Vehicles Application Note
application/pdf 872.87 KB
8/13/2025
872.87 KB
Industrial Warehouse Solutions
application/pdf 2.85 MB
8/13/2025
2.85 MB
Agricultural Vehicles Application Note
application/pdf 1.11 MB
8/20/2025
1.11 MB
Defence Ground Vehicles Application Note
application/pdf 872.87 KB
8/13/2025
872.87 KB
Solutions for Hemodialysis Machines Application Note
application/pdf 2.66 MB
8/20/2025
2.66 MB
Sensors in Sleep Apnea Machines
application/pdf 1.88 MB
8/13/2025
1.88 MB
Agricultural Vehicles Application Note
application/pdf 1.11 MB
8/20/2025
1.11 MB
Solutions For Healthier Air & HVAC Systems
application/pdf 3.88 MB
8/12/2025
3.88 MB
Sensors and Switches in Front Loaders
application/pdf 2.54 MB
8/13/2025
2.54 MB
Sensors and Switches: Solutions for Medical Applications
application/pdf 1.34 MB
8/13/2025
1.34 MB
eBook
Name
Description
File Size
Date
Size
eBook About Redefining Road Rail & Rugged Applications.
application/pdf 28.69 MB
8/19/2025
28.69 MB
Product Photo
Name
Description
File Size
Date
Size

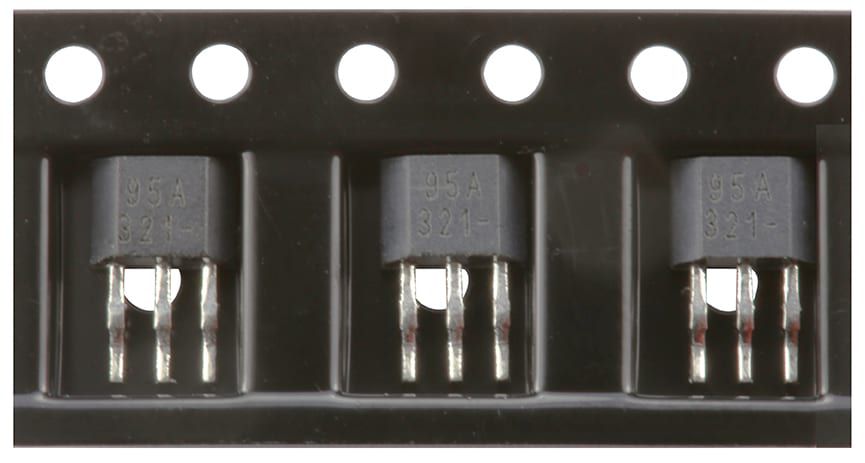

Flat TO-92-style surface mount pocket tape and reel lowres photo
