limit switches
HDLS Stainless Series
Stainless steel housing. Non-plug in. NEMA 1, 3, 3R, 4, 4X, 6, 6P, 13 sealing. 30 mm x 60 mm mounting centers. UL, CSA, CE, UKCA and CCC approvals
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
MICRO SWITCH HDLS switches are also available in all stainless-steel versions. Designed for use in highly corrosive environments, such as petrochemical plants, food processing plants, shipboard, and dockside locations. The type 316 cast stainless steel body is designed to minimize crevices where food particles could become trapped in water. The actuator, operating head, and screws are also stainless steel. All seals are fluorocarbon to provide excellent chemical resistance and to withstand operating temperatures up to 121 °C [250 °F] and pressurized steam cleaning. Pre-leaded and epoxy-filled versions also available.
- Corrosion-resistant stainless steel non-plug in body, head, and rotary shaft
- Stainless steel levers
- Fluorocarbon seals (low temperature fluorosilicone seals available)
- NEMA 1, 3, 3R, 4, 4X, 6, 6P, and 13
- UL, CSA, CE, UKCA and CCC
Specifications
Others
- Industry
- Energy
- Logistics & Warehouses
- Manufacturing
- Retail
Others
- Industry
- Energy
- Logistics & Warehouses
- Manufacturing
- Retail
- Industry : Energy|Logistics & Warehouses|Manufacturing|Retail
Please sign in to access more documents.
Once signed in, you may be able to access additional documents for your account.
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
LS2A4K
LIMIT SWITCH
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2A4K
LIMIT SWITCH
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2A4KC
Series HDLS Stainless Steel Non Plug-in: Side Rotary - Lever Not Included; 1NC 1NO Single-Pole, Double Throw, Snap-Action, Double-Break; 6-foot Cable
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2A4KC
Series HDLS Stainless Steel Non Plug-in: Side Rotary - Lever Not Included; 1NC 1NO Single-Pole, Double Throw, Snap-Action, Double-Break; 6-foot Cable
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2A4KPC
Series HDLS Stainless Steel Non Plug-in: Side Rotary - Lever Not Included; 1NC 1NO Single-Pole, Double Throw, Snap-Action, Double-Break; 20-foot Cable
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2A4KPC
Series HDLS Stainless Steel Non Plug-in: Side Rotary - Lever Not Included; 1NC 1NO Single-Pole, Double Throw, Snap-Action, Double-Break; 20-foot Cable
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2A4KY-FP
Series HDLS Stainless Steel Non Plug-in: Side Rotary - Lever Not Included; 1NC 1NO Single-Pole, Double Throw, Snap-Action, Double-Break; 12-foot Cable
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2A4KY-FP
Series HDLS Stainless Steel Non Plug-in: Side Rotary - Lever Not Included; 1NC 1NO Single-Pole, Double Throw, Snap-Action, Double-Break; 12-foot Cable
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2A4L
LIMIT SWITCH
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2A4L
LIMIT SWITCH
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2C4L
Series HDLS Stainless Steel Non Plug-in: Top Plunger; 2NC 2NO Double-Pole, Double-Throw, Snap-Action, Double-Break; 0.75 in - 14NPT conduit
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2C4L
Series HDLS Stainless Steel Non Plug-in: Top Plunger; 2NC 2NO Double-Pole, Double-Throw, Snap-Action, Double-Break; 0.75 in - 14NPT conduit
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441

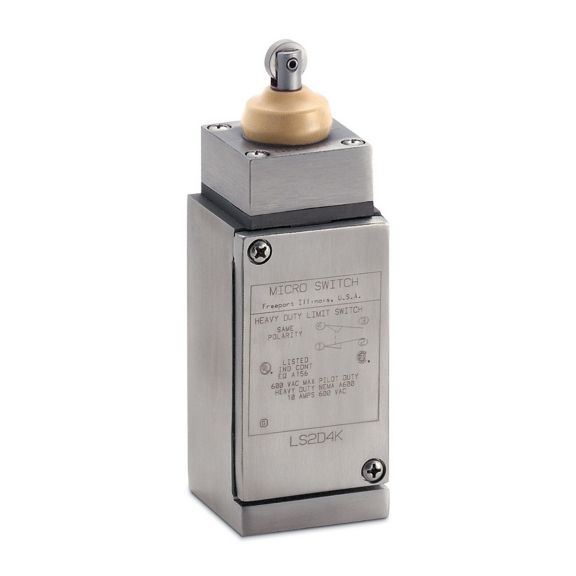

LS2D4K
Series HDLS Stainless Steel Non Plug-in: Top Roller Plunger; 1NC 1NO Single-Pole, Double-Throw, Snap-Action, Double-Break; 0.75 in - 14NPT conduit
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2D4K
Series HDLS Stainless Steel Non Plug-in: Top Roller Plunger; 1NC 1NO Single-Pole, Double-Throw, Snap-Action, Double-Break; 0.75 in - 14NPT conduit
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2D4L
LIMIT SWITCH
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2D4L
LIMIT SWITCH
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2E4K
Series HDLS Stainless Steel Non Plug-in: Side Plunger - Standard; 1NC 1NO Single-Pole, Double-Throw, Snap-Action, Double-Break; 0.75 in - 14NPT conduit
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2E4K
Series HDLS Stainless Steel Non Plug-in: Side Plunger - Standard; 1NC 1NO Single-Pole, Double-Throw, Snap-Action, Double-Break; 0.75 in - 14NPT conduit
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2E4L
Series HDLS Stainless Steel Non Plug-in: Side Plunger - Standard; 2NC 2NO Double-Pole, Double-Throw, Snap-Action, Double-Break; 0.75 in - 14NPT conduit
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
LS2E4L
Series HDLS Stainless Steel Non Plug-in: Side Plunger - Standard; 2NC 2NO Double-Pole, Double-Throw, Snap-Action, Double-Break; 0.75 in - 14NPT conduit
https://s7d1.scene7.com/is/image/Honeywell65/sps-siot-ls2d4k-highres-ciid-161441
