basic switches
ZM1 Series
Up to 16.1 A ac (UL, cUL, ENEC, CQC). Variety of actuators, forces, terminations & contacts. 9,5 mm centers side mount.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

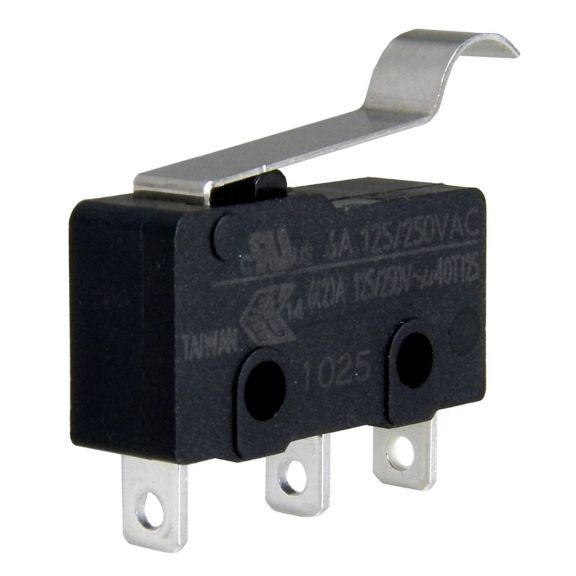

Although small in size, the ZM and ZM1 Series are rated for controlling electrical loads ranging from logic level (computer based circuits) to power duty switching (up to 16.1 A and 250 Vac). The package size of the subminiature switch is ideal for applications where space on the equipment is at a premium. The overall length of the ZM and ZM1 Series are less than 20 mm [0.78 in].
