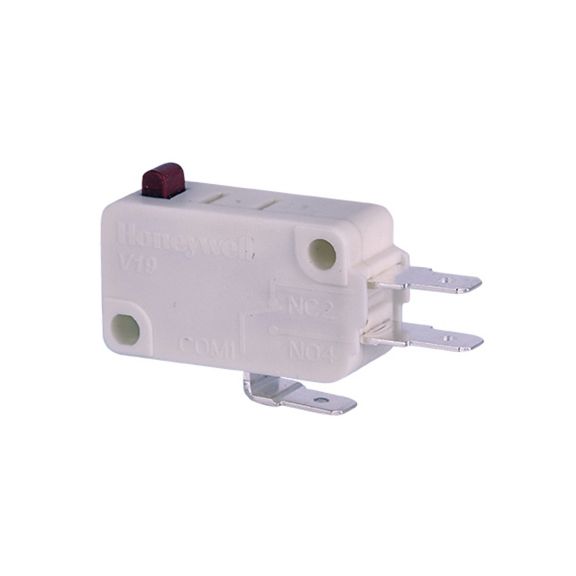

Basic Switches
V19 Series

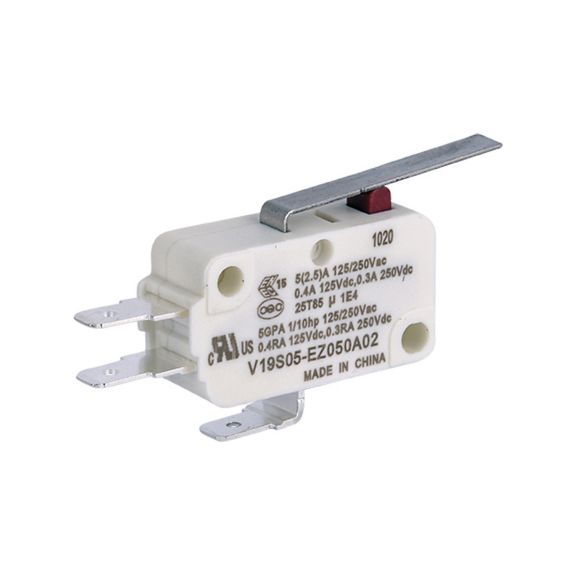

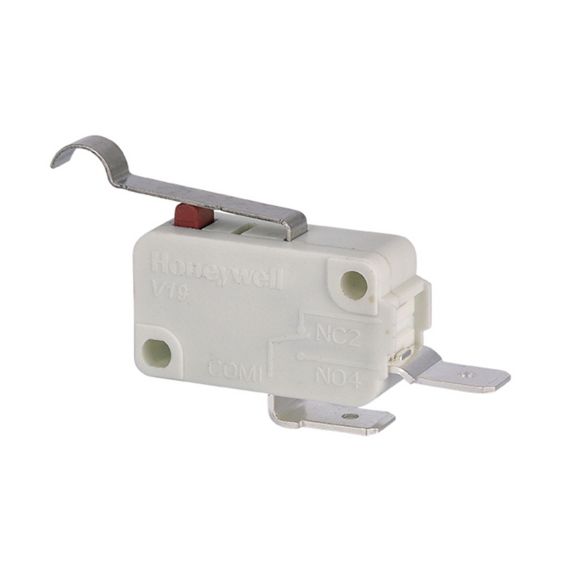

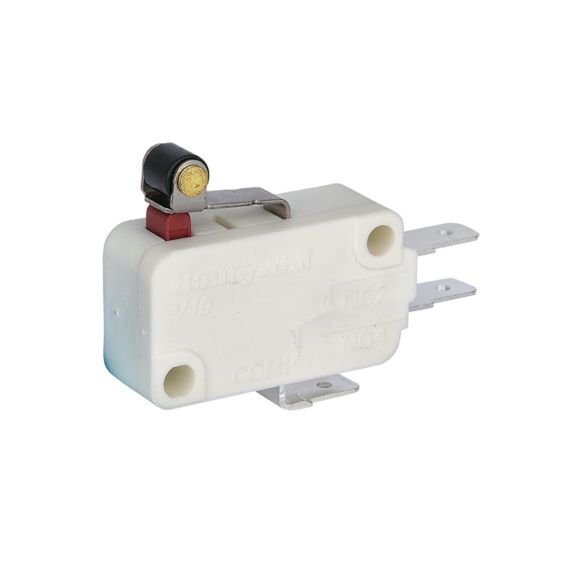

5 A & 16 A. > 1M mechanical operations. UL/CSA, cUL, ENEC, CQC. Variety of termination and lever options. Cadmium-free contacts
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

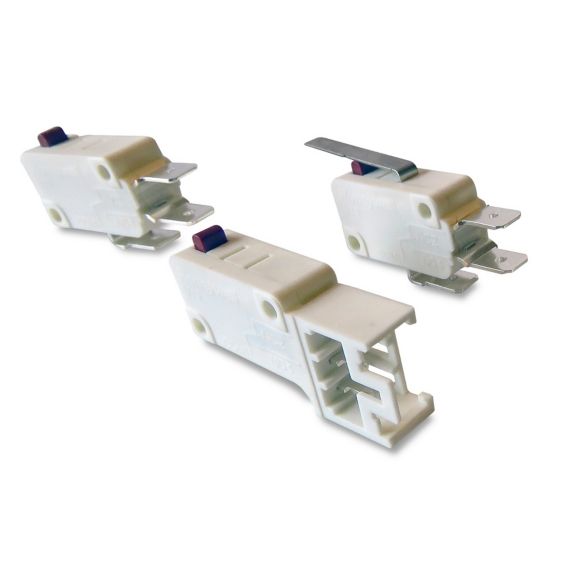

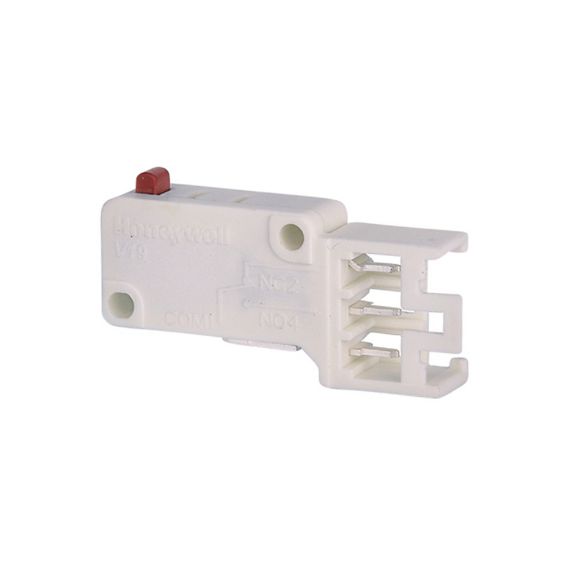

The V19, Honeywell’s unsealed MICRO SWITCH family provides a cost-conscious switch solution to assist in hitting overall system-level cost and design goals in high volume applications. The V19 switch provides a fully certified, reliable, and repeatable solution over the lifetime of the product. RAST 2.5, 5, and 7 termination styles available for automated manufacturing requirements (white goods).
Applications
- Presence Detection - Ensures door latching and safe operation
- Float Switch - On/off power to stop overflow conditions
- Flow Switch - Enables safe and efficient water usage
- Power Switch - Reliable system control for motors, pumps, fans
- Operator Controls - Interface control for system auxiliary functions
Specifications
