Multi-Gas

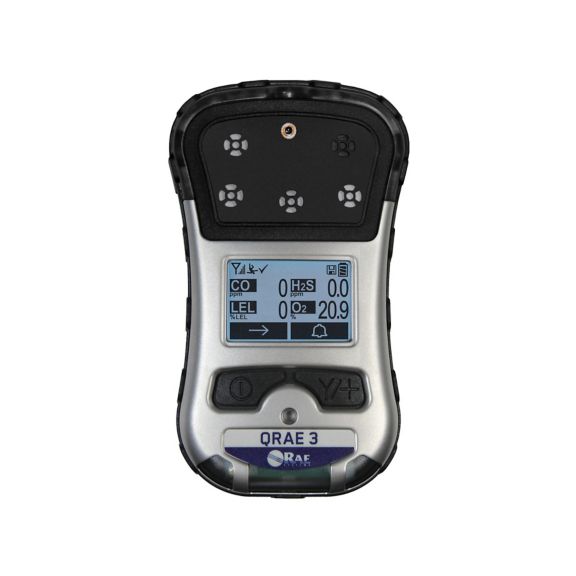

QRAE 3 PGM-2560 Series (LEL / H2S / CO / O2 / SO2 / HCN / PH3 / NH3 / Cl2 / NO2 ) Pumped
Versatile Compact wireless monitor for up to four gases
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Brand
- Brand
- RAE
Category
- Sub-Category
- Multi-Gas
Dimension & Weight
- Instrument Size
- 5.7 "H x 3.2 "W x 1.7" D (145 mm x 82 mm x 42mm)
Range
- Sensor Range
- O2 (0-30%vol), LEL (0-100% LEL), CO (0-500ppm), H2S (0-100ppm), SO2 (0-20ppm), HCN (0-50ppm), NH3 (0-100ppm), PH3 (0-20ppm), CL2 (0-50ppm), NO2 (0-50ppm)
- Humidity Range
- 0%-95% percent
Alarm
- Alarm Type
- Audible, Visual, Vibrating
Certifications
- Standards & Certifications
- US and Canada: classified for use in Class I
Datalogging
- Datalogging
- Continuous datalogging (3 months for 4 sensors at 1-minute intervals-
Features & Benefits
- Features & Benefits
- Available in Diffusion
Options
- User Options
- Alarms: latching- non latching or manual override
Sampling
- Sampling Pump Range
- 100ft (30m) meter
Warranty
- Warranty
- 2-year warranty on device
Wireless
- Wireless Technology
- MESH
Additional Specifications
- Gas Type
- O2, LEL, CO, H2S, SO2, HCN, NH3, PH3, CL2, NO2
- Ingress Protection
- IP65
Others
- Weight
- 410 gram
- Minimum Temperature
- -20 degree Celsius
- Maximum Temperature
- 50 degree Celsius
Brand
- Brand
- RAE
Category
- Sub-Category
- Multi-Gas
Dimension & Weight
- Instrument Size
- 5.7 "H x 3.2 "W x 1.7" D (145 mm x 82 mm x 42mm)
Range
- Sensor Range
- O2 (0-30%vol), LEL (0-100% LEL), CO (0-500ppm), H2S (0-100ppm), SO2 (0-20ppm), HCN (0-50ppm), NH3 (0-100ppm), PH3 (0-20ppm), CL2 (0-50ppm), NO2 (0-50ppm)
- Humidity Range
- 0%-95% percent
Alarm
- Alarm Type
- Audible, Visual, Vibrating
Certifications
- Standards & Certifications
- US and Canada: classified for use in Class I
Datalogging
- Datalogging
- Continuous datalogging (3 months for 4 sensors at 1-minute intervals-
Features & Benefits
- Features & Benefits
- Available in Diffusion
Options
- User Options
- Alarms: latching- non latching or manual override
Sampling
- Sampling Pump Range
- 100ft (30m) meter
Warranty
- Warranty
- 2-year warranty on device
Wireless
- Wireless Technology
- MESH
Additional Specifications
- Gas Type
- O2, LEL, CO, H2S, SO2, HCN, NH3, PH3, CL2, NO2
- Ingress Protection
- IP65
Others
- Weight
- 410 gram
- Minimum Temperature
- -20 degree Celsius
- Maximum Temperature
- 50 degree Celsius
- Weight : 410 gram
- Minimum Temperature : -20 degree Celsius
- Maximum Temperature : 50 degree Celsius
- Brand : RAE
- Sub-Category : Multi-Gas
- Instrument Size : 5.7 "H x 3.2 "W x 1.7" D (145 mm x 82 mm x 42mm)
- Sensor Range : O2 (0-30%vol), LEL (0-100% LEL), CO (0-500ppm), H2S (0-100ppm), SO2 (0-20ppm), HCN (0-50ppm), NH3 (0-100ppm), PH3 (0-20ppm), CL2 (0-50ppm), NO2 (0-50ppm)
- Humidity Range : 0%-95% percent
- Alarm Type : Audible, Visual, Vibrating
- Standards & Certifications : US and Canada: classified for use in Class I
- Datalogging : Continuous datalogging (3 months for 4 sensors at 1-minute intervals-
- Features & Benefits : Available in Diffusion
- User Options : Alarms: latching- non latching or manual override
- Sampling Pump Range : 100ft (30m) meter
- Warranty : 2-year warranty on device
- Wireless Technology : MESH
- Gas Type : O2, LEL, CO, H2S, SO2, HCN, NH3, PH3, CL2, NO2
- Ingress Protection : IP65
