    ACM 150G2

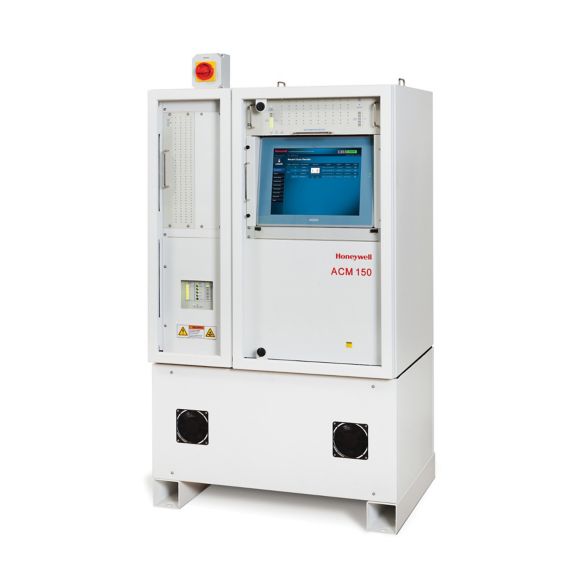

    ACM 150G2 FTIR Centralized Gas Monitoring System

    Overview
    Overview:Detect more gases, in many cases at lower levels, with proof of response through state-of-the-art Human Machine Interface (HMI). Promote uptime, low cost of ownership, and reliable performance with ACM 150G2 by Honeywell.Product Overview:Increase productivity demands with a newly designed FTIR bench that provides a better Lower Detectable Limit (LDL) for many gases through the instrument. Choose Honeywell ACM 150G2 for enhanced safety, improved performance, and lower cost-per-point monitoring.
    • Up to 40 measuring points can be centrally located on one device, such as process tools, gas and chemical storage units, gas cabinets, distribution boxes, process tools, emission measurement, and ambient air monitoring.
    • Up to 15 gases can be detected per measuring point, lowering your cost-per-gas-per-point monitoring.
    • Self-diagnostic programming detects faults and critical alarms, eliminating many maintenance calls.
    • Communications options meet unique site requirements (Open Platform Communications (OPC), ControlNet™, Modbus®, and Profibus®
    Improved Gas Monitoring Performance with the ACM 150G2Increase productivity demands with a newly designed FTIR bench that provides a better Lower Detectable Limit (LDL) for many gases through the instrument. Choose Honeywell ACM 150G2 for enhanced safety, improved performance, and lower cost-per-point monitoring.Features and Benefits:Integrate gas detection into a single unit:
    • Detect multiple gases, chemicals, or odors in an industrial process*
    • Overlay the spectrum of detected gas against a library of spectra for precise detection as a user validation tool
    • Up to 40 measuring points can be detected sequentially
    • 80 configurable relay points for increased flexibility
    Promote uptime:
    • Sealed aluminum body prevents moisture intrusion, protecting critical internal components
    • Double IR scan ensures reliable performance and reduces false alarms
    • Optimized built-in measuring/self-diagnostics eliminate on-site gas calibration
    • Desiccant replacement cycle of 3-to-5 years
    Boost gas monitoring performance:
    • Composite sampling of up to four measuring points provides faster measurement
    • Easy-to-service gas cell with stainless-steel body construction prevents costly downtime
    • Better Signal to Noise Ratio (SNR) performance allows for lower LDL measurements
    Simplified touchscreen operation:
    • Improved HMI with modernized solid-state computer operating on a world-proven operating system
    • Large user-friendly touchscreen interface
    • Flexible communications options meet unique site requirements
    • Robust solid-state drive
    • Embedded web server for remote access
    • Refer to the ACM 150G2/100 Gas List or ask your regional sales rep for more information. More than two hundred gases detectable. Our engineers may be able to generate a new method for gases not listed.
    Quick Specs:
    • Analysis method: Continuous scan FTIR (Fourier Transform Infrared) analyzer
    • Gas cell path: 5.0 m path length
    • Scanning rate: ≤ 15 sec per point
