Mobile Printers
LNX3
Durable, rugged direct thermal printer with intuitive set-up and interface for premium printing performance for transportation and logistics, retail, and manufacturing applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

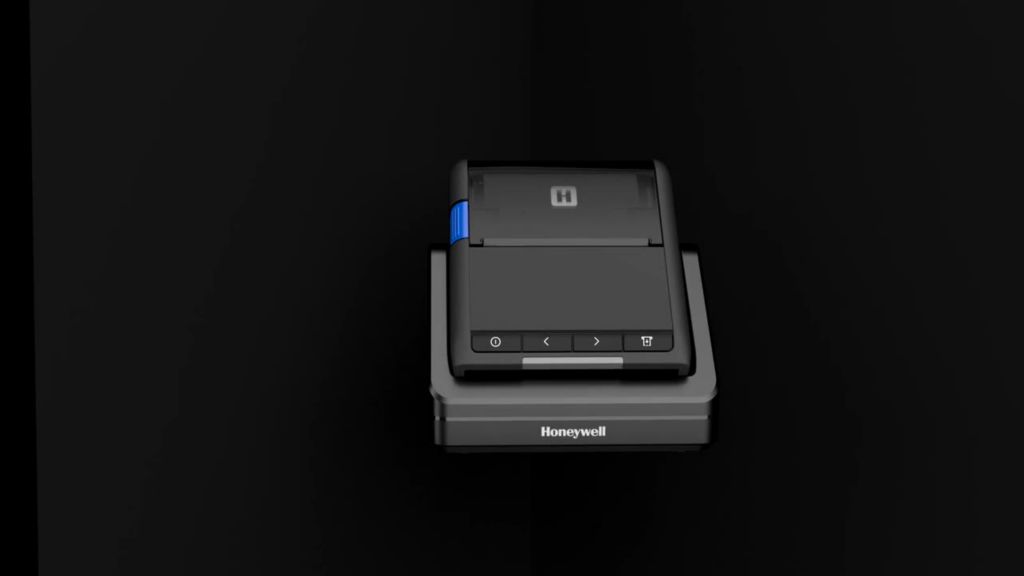

LNX3 mobile label and receipt printer brings the power and reliability of Honeywell printers into a durable, lightweight, direct thermal printer meeting or exceeding industry printer specifications.
The large 2.4 inch color screen display streamlines configuration and operation at the touch of a button and is backed up by a fast energy-saving processor and powerful printheads and high-performance motors.
With leading print speeds up to 5ips, the LNX3 printer supports large-volume label and receipt printing requirements in longer intervals helping boost productivity. A removable high-capacity battery and precise power management system provides uninterrupted printing across long operating and standby times.
Effortlessly connect with MFi, NFC pairing, and both Bluetooth® and Wi-Fi options. Print from almost any device with Windows®, iOS, and Android™ compatibility.
Drive productivity and improve inventory management with the LNX3 Mobile Printer.
Specifications
Features
- Compatible Drivers
- Driver for Linux
- Windows
Dimensions
- Overall Dimensions
- H x W x D: 117 mm x 137 mm x 55 mm (4.53 in x 5.31 in x 2.05 in)
Software & Firmware
- 2D Barcodes
- All major 2D barcodes
- Linear Barcodes
- All major 1D barcodes
- Downloadable Font Type
- Bitmap Font
- TrueType Font
- Printer Command Language
- CPCL
- ESC/P
- ESC/POS
- XSIM
- ZPL
- Image File Format
- BMP
- Bitmap
Printing Specifications
- Resolutions
- 203 dpi
- Print Speeds
- 25-125 mm/s (1-5 ips)
- Print Method
- Direct Thermal
Media
- Printer Media Type
- Label
- Receipt
- Maximum Media Roll Diameter
- 43 mm (1.69 in)
Hardware
- Printer Connection Interface
- USB C
Electrical
- Battery Capacity Options
- 2800 mAh
- Operating Voltage
- 100 to 240 VAC
Environmental
- Operating Humidity
- 10% - 90 % non-condensing
Standards & Approvals
- Protection Ratings
- IP54
- Drop Specifications
- 1.8 m (6 ft)
- Tumble Specifications
- 1,000 cycles at 0.5 m (1.6 ft) with carrying bag
Network
- Bluetooth Specifications
- Bluetooth 5.0 + BLE
Others
- Features
- Rugged and reliable
- Application
- Healthcare
- Manufacturing
- Retail
- T&L
- Wireless Communication
- IEEE 802.11 a/b/g/n
- NFC for pairing
- Storage Temperature
- -20°C to +70°C (-4°F to +158°F)
- Operating Temperature
- -15°C to 55°C (5°F to 131°F)
- Warranty Duration
- One year factory warranty
- Print Width
- 3 inch
- Print Volume
- Up to 2,000
- Print Technology
- Direct Thermal
- Print Resolution
- 203 dpi
- Platform
- Others
- Connectivity
- Bluetooth
- Wi-Fi
Features
- Compatible Drivers
- Driver for Linux
- Windows
Dimensions
- Overall Dimensions
- H x W x D: 117 mm x 137 mm x 55 mm (4.53 in x 5.31 in x 2.05 in)
Software & Firmware
- 2D Barcodes
- All major 2D barcodes
- Linear Barcodes
- All major 1D barcodes
- Downloadable Font Type
- Bitmap Font
- TrueType Font
- Printer Command Language
- CPCL
- ESC/P
- ESC/POS
- XSIM
- ZPL
- Image File Format
- BMP
- Bitmap
Printing Specifications
- Resolutions
- 203 dpi
- Print Speeds
- 25-125 mm/s (1-5 ips)
- Print Method
- Direct Thermal
Media
- Printer Media Type
- Label
- Receipt
- Maximum Media Roll Diameter
- 43 mm (1.69 in)
Hardware
- Printer Connection Interface
- USB C
Electrical
- Battery Capacity Options
- 2800 mAh
- Operating Voltage
- 100 to 240 VAC
Environmental
- Operating Humidity
- 10% - 90 % non-condensing
Standards & Approvals
- Protection Ratings
- IP54
- Drop Specifications
- 1.8 m (6 ft)
- Tumble Specifications
- 1,000 cycles at 0.5 m (1.6 ft) with carrying bag
Network
- Bluetooth Specifications
- Bluetooth 5.0 + BLE
Others
- Features
- Rugged and reliable
- Application
- Healthcare
- Manufacturing
- Retail
- T&L
- Wireless Communication
- IEEE 802.11 a/b/g/n
- NFC for pairing
- Storage Temperature
- -20°C to +70°C (-4°F to +158°F)
- Operating Temperature
- -15°C to 55°C (5°F to 131°F)
- Warranty Duration
- One year factory warranty
- Print Width
- 3 inch
- Print Volume
- Up to 2,000
- Print Technology
- Direct Thermal
- Print Resolution
- 203 dpi
- Platform
- Others
- Connectivity
- Bluetooth
- Wi-Fi
- Features : Rugged and reliable
- Compatible Drivers : Driver for Linux|Windows
- Application : Healthcare|Manufacturing|Retail|T&L
- Overall Dimensions : H x W x D: 117 mm x 137 mm x 55 mm (4.53 in x 5.31 in x 2.05 in)
- 2D Barcodes : All major 2D barcodes
- Resolutions : 203 dpi
- Print Speeds : 25-125 mm/s (1-5 ips)
- Linear Barcodes : All major 1D barcodes
- Downloadable Font Type : Bitmap Font|TrueType Font
- Printer Media Type : Label|Receipt
- Wireless Communication : IEEE 802.11 a/b/g/n|NFC for pairing
- Printer Command Language : CPCL|ESC/P|ESC/POS|XSIM|ZPL
- Image File Format : BMP|Bitmap
- Printer Connection Interface : USB C
- Battery Capacity Options : 2800 mAh
- Storage Temperature : -20°C to +70°C (-4°F to +158°F)
- Operating Temperature : -15°C to 55°C (5°F to 131°F)
- Operating Humidity : 10% - 90 % non-condensing
- Protection Ratings : IP54
- Drop Specifications : 1.8 m (6 ft)
- Warranty Duration : One year factory warranty
- Tumble Specifications : 1,000 cycles at 0.5 m (1.6 ft) with carrying bag
- Print Width : 3 inch
- Print Volume : Up to 2,000
- Print Technology : Direct Thermal
- Print Resolution : 203 dpi
- Print Method : Direct Thermal
- Platform : Others
- Operating Voltage : 100 to 240 VAC
- Maximum Media Roll Diameter : 43 mm (1.69 in)
- Connectivity : Bluetooth|Wi-Fi
- Bluetooth Specifications : Bluetooth 5.0 + BLE
