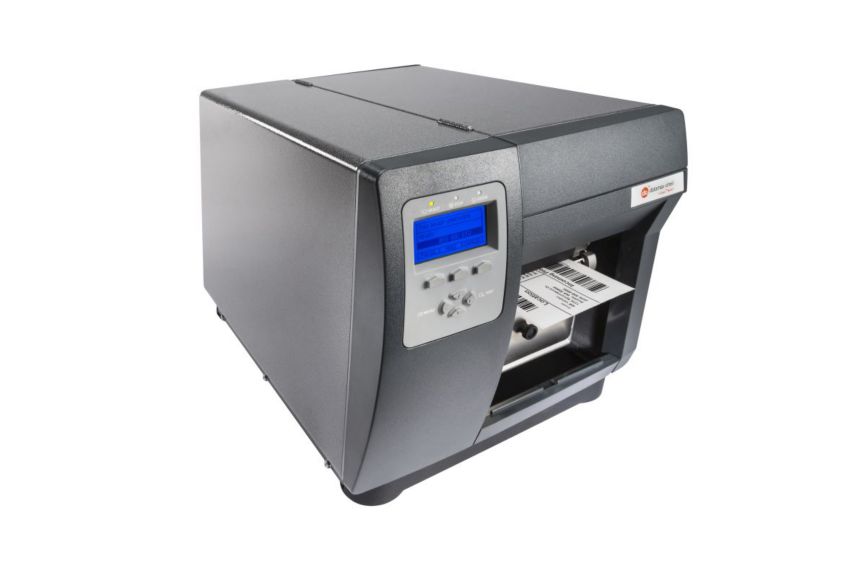

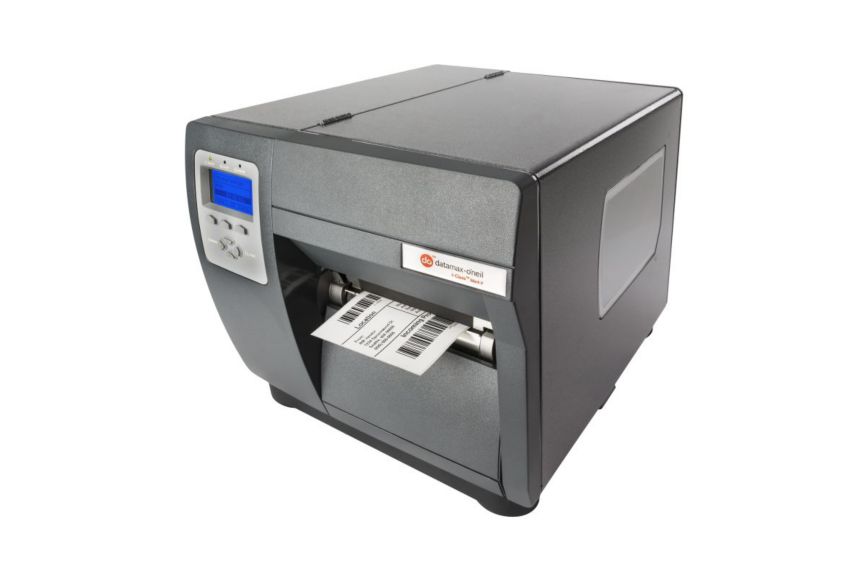

I-Class Mark II Industrial Printer
I-Class Mark II Industrial Printer
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product is discontinued. We may offer firmware, drivers and manuals for your convenience, as well as online tech support. If you require additional support, please contact us using the links above.
Product Discontinuation Date:March 31, 2023
Service & Support Discontinuation Date: December 31, 2026
Product Replacement:
PM45
The I-Class Mark II family of mid-range industrial barcode printers can easily keep up with high-speed label demand applications. With a state-of-the-art processor, printer throughput is very fast. And thanks to a modular design, it’:s easy to add and/or change printer options to upgrade and reconfigure as your business needs grow.
- Communication ports include serial, parallel, USB, LAN, and two USB Host ports and an SDIO, WLAN, and GPIO interface card.
- Modular design allows for user field-upgradeable options like thermal transfer and internal rewinder.
- Wide printhead access makes the I-Class Mark II easy to maintain with quick printhead and platen roller replacement.
- Rugged construction features a gear-driven design and durable die-cast aluminum frame.
- Graphic display includes an easy-to-read 7-button 128 x 64 LCD display for user-friendly label configuration.
I-Class Mark II mid-range industrial barcode printers have the speed and rugged durability you need for high-productivity applications in shipping and receiving, product identification, pharmacy labeling and asset tracking.With a legendary reputation in the industry as a high-quality printer, I-Class Mark II printers are competitively priced, reliable and easy to integrate.I-Class Mark II printers are loaded with many standard features, including a fast processor, large memory, and a wide selection of communication ports. Plus, the IntelliSEAQ™: print head features a durable coating, better abrasion resistance, and longer life.I-Class Mark II printers are versatile, too. Use them in a wide variety of industrial applications with a range of media compatibility, connectivity, emulation support and options.
Specifications at a glance:
- Printhead: Direct thermal: optional thermal transfer
- Media roll width: 25.4 mm to 118.1 mm (1.0 in to 4.7 in)
- Maximum print width: 105.7 mm (4.16 in)
- Print speed: •: I-4212e: 304 mms (12 ips), 8 mmps (203 dpi) •: I-4310: 254 mms (10 ips), 12 mmps (300 dpi) •: I-4606: 152 mms (6 ips), 24 mmps (600 dpi)
- Ethernet-wired LAN 10/100, W-LAN with WPA2 security protocol, 2 USB Host Ports and SDIO, GPIO interface card
Specifications
Applications & Compatibility
- Compatible Software
- NETira CT
- NETira LD
- Application
- Distribution
- Pharmaceuticals
Technical Specifications
- Compatible Drivers
- Windows NT
- Windows Vista
- Windows XP
- Downloadable Font Type
- Bitmap
- TrueType
- Font Modification
- Expansion
- Mirror Image
- Rotation
- Linear Barcodes
- Codabar
- Code 11
- Code 128
- Code 3 of 9
- Code 93
- EAN-13
- EAN-8
- FIM
- HIBC
- Industrial 2 of 5
- Planetcode
- Plessey
- Postnet
- Std 2 of 5
- Telepen
- UCC/EAN Code 128
- UPC 2- and 5-Digit Addendums
- UPC-A
- UPC-E
- USPS-4 State
- Print Speeds
- 10 ips
- 12 ips
- 6 ips
- Print Method
- Direct Thermal
- Thermal Transfer
- Resolutions
- 203 dpi
- 300 dpi
- 600 dpi
- Printer Media Type
- Label
- Ribbon
- Wireless Communication
- WiFi
- Printer Command Language
- DPL
- PL-I
- ZPL-II
- Image File Format
- BMP
- IMG
- PCX
- Operating Frequency
- 47 - 63 Hz
- RFID Specifications
- RFID
Features
- Door Options
- Standard
- Features
- 5 Languages
- Easy to Upgrade
- Rugged
- 2D Barcodes
- Aztec
- Codablock
- Code 16k
- Data Matrix
- GS1 Databar
- MaxiCode
- Micro PDF417
- PDF417
- QR-Code
- TLC 39
- USD-8
Dimensions & Weight
- Overall Dimensions
- 12.7 x 12.6 x 18.6 in
- 32.26 x 32.05 x 47.24 cm
- Maximum Ribbon Length
- 1,968 ft
- 600 ft
Electrical Specifications
- Operating Voltage
- 180 - 264 V AC
- 90 - 132 V AC
Operating Characteristics
- Operating Temperature
- 0 - 40 °C
- 32 - 104 °F
Overview
- Warranty Duration
- 1 yr
- Brand
- Honeywell
Applications & Compatibility
- Compatible Software
- NETira CT
- NETira LD
- Application
- Distribution
- Pharmaceuticals
Technical Specifications
- Compatible Drivers
- Windows NT
- Windows Vista
- Windows XP
- Downloadable Font Type
- Bitmap
- TrueType
- Font Modification
- Expansion
- Mirror Image
- Rotation
- Linear Barcodes
- Codabar
- Code 11
- Code 128
- Code 3 of 9
- Code 93
- EAN-13
- EAN-8
- FIM
- HIBC
- Industrial 2 of 5
- Planetcode
- Plessey
- Postnet
- Std 2 of 5
- Telepen
- UCC/EAN Code 128
- UPC 2- and 5-Digit Addendums
- UPC-A
- UPC-E
- USPS-4 State
- Print Speeds
- 10 ips
- 12 ips
- 6 ips
- Print Method
- Direct Thermal
- Thermal Transfer
- Resolutions
- 203 dpi
- 300 dpi
- 600 dpi
- Printer Media Type
- Label
- Ribbon
- Wireless Communication
- WiFi
- Printer Command Language
- DPL
- PL-I
- ZPL-II
- Image File Format
- BMP
- IMG
- PCX
- Operating Frequency
- 47 - 63 Hz
- RFID Specifications
- RFID
Features
- Door Options
- Standard
- Features
- 5 Languages
- Easy to Upgrade
- Rugged
- 2D Barcodes
- Aztec
- Codablock
- Code 16k
- Data Matrix
- GS1 Databar
- MaxiCode
- Micro PDF417
- PDF417
- QR-Code
- TLC 39
- USD-8
Dimensions & Weight
- Overall Dimensions
- 12.7 x 12.6 x 18.6 in
- 32.26 x 32.05 x 47.24 cm
- Maximum Ribbon Length
- 1,968 ft
- 600 ft
Electrical Specifications
- Operating Voltage
- 180 - 264 V AC
- 90 - 132 V AC
Operating Characteristics
- Operating Temperature
- 0 - 40 °C
- 32 - 104 °F
Overview
- Warranty Duration
- 1 yr
- Brand
- Honeywell
- Compatible Software : NETira CT|NETira LD
- Compatible Drivers : Windows NT|Windows Vista|Windows XP
- Door Options : Standard
- Application : Distribution|Pharmaceuticals
- Features : 5 Languages|Easy to Upgrade|Rugged
- Overall Dimensions : 12.7 x 12.6 x 18.6 in|32.26 x 32.05 x 47.24 cm
- Downloadable Font Type : Bitmap|TrueType
- Font Modification : Expansion|Mirror Image|Rotation
- Linear Barcodes : Codabar|Code 11|Code 128|Code 3 of 9|Code 93|EAN-13|EAN-8|FIM|HIBC|Industrial 2 of 5|Planetcode|Plessey|Postnet|Std 2 of 5|Telepen|UCC/EAN Code 128|UPC 2- and 5-Digit Addendums|UPC-A|UPC-E|USPS-4 State
- Print Speeds : 10 ips|12 ips|6 ips
- Print Method : Direct Thermal|Thermal Transfer
- Resolutions : 203 dpi|300 dpi|600 dpi
- 2D Barcodes : Aztec|Codablock|Code 16k|Data Matrix|GS1 Databar|MaxiCode|Micro PDF417|PDF417|QR-Code|TLC 39|USD-8
- Maximum Ribbon Length : 1,968 ft|600 ft
- Printer Media Type : Label|Ribbon
- Wireless Communication : WiFi
- Printer Command Language : DPL|PL-I|ZPL-II
- Image File Format : BMP|IMG|PCX
- Operating Frequency : 47 - 63 Hz
- Operating Voltage : 180 - 264 V AC|90 - 132 V AC
- Operating Temperature : 0 - 40 °C|32 - 104 °F
- Warranty Duration : 1 yr
- Brand : Honeywell
- RFID Specifications : RFID
