Wearable Computers

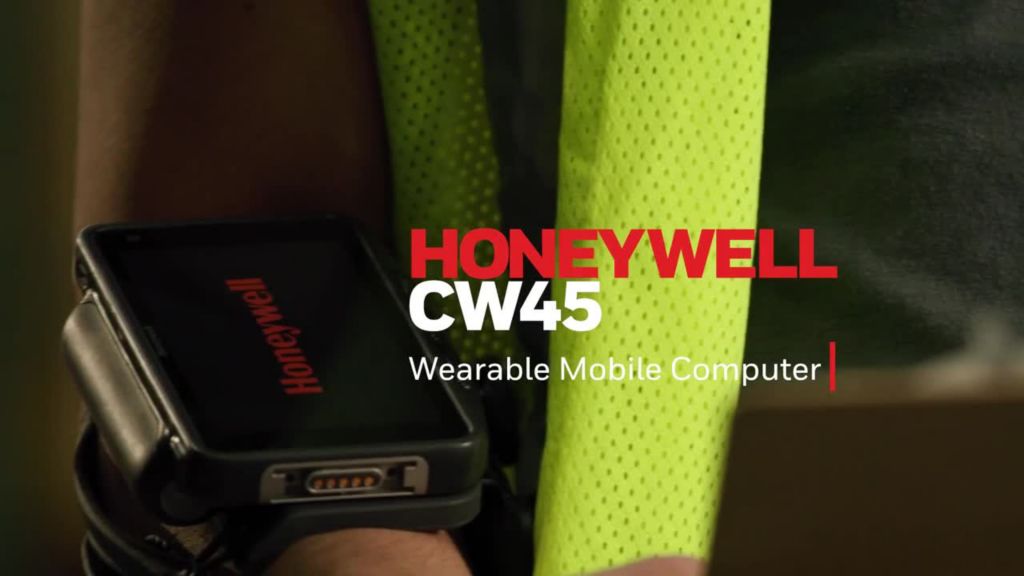

CW45 Wearable Computer

The CW45 wearable mobile computer brings optimized ergonomics and performance to arm-worn applications. Comfortable, powerful, compact, durable, and easy to use, the CW45 provides maximum solution return on investment.

Overview
CW45 Wearable Computer
The CW45 wearable computer is a rugged performance tool that improves productivity by ergonomically presenting the workflow information at the point of activity and integrating the tools needed to perform the job at hand. Ultra-reliable performance, data connectivity, and communications for frontline mobile workers in warehouse/DC, retail, logistics, and manufacturing is always where it is needed, when it is needed. Designed from the ground up for comfort, ease of use, and reliability, the CW45 offers a low profile, large 4.7 inch HD display, enterprise-level ruggedness, and comfortable, easy-to-wear accessories. The CW45 is designed for businesses that invest in sophisticated solutions and want a durable, stable, secure platform on which to implement them. Built on the newest generation of Honeywell's Mobility Edge™ platform, the CW45 delivers the lifecycle, security, and durability to optimize solution return on investment in the long term.
Specifications

Dimensions

  • Overall Dimensions
    • 133 mm x 86 mm x 14 mm

Scanning Specifications

  • Decode Capability
    • Can read barcodes with paired scanner accessory, or via integrated camera

Network

  • Computer Wireless Communication
    • WLAN, Bluetooth, NFC
  • Bluetooth Specifications
    • Bluetooth 5.1, classic and BLE
  • WLAN Specifications
    • Wi-Fi6 certified: IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO

Memory & Data

  • Memory
    • 6 GB DDR4x RAM, 64 GB UFS Flash

Electrical

  • Battery Types
    • Li-ion

Environmental

  • Storage Temperature Range
    • -30°C to +70°C (-22°F to +158°F)
  • Operating Humidity
    • 5% to 95% (non-condensing)
  • Cold Storage
    • Yes, -20C minimum operating temperature

Standards & Approvals

  • Tumble Specifications
    • Exceeds 1,000 times at 0.5m (1.64 ft) per IEC 60068-2-32 specification
  • Drop Specifications
    • Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
  • Protection Ratings
    • Independently certified to meet IP65 and IP67 standards for moisture and particle intrusion

Others

  • Application
    • DC
    • E-Commerce
    • Manufacturing
    • Retail
    • Warehouse
  • Features
    • Compact and comfortable wearable MobilityEdge™ computer
  • Processor
    • Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
  • Battery Capacity
    • 3400 mAh (standard)
    • 6800 mAh (extended)
  • Operating Temperature
    • -20°C to +50°C (-4°F to +122°F)
  • Warranty Duration
    • One year factory warranty
  • Keypad
    • Full Touchscreen
  • Scan Distance
    • No Scanner
  • Connectivity
    • Wi-Fi
  • Environment
    • Standard

Dimensions

  • Overall Dimensions
    • 133 mm x 86 mm x 14 mm

Scanning Specifications

  • Decode Capability
    • Can read barcodes with paired scanner accessory, or via integrated camera

Network

  • Computer Wireless Communication
    • WLAN, Bluetooth, NFC
  • Bluetooth Specifications
    • Bluetooth 5.1, classic and BLE
  • WLAN Specifications
    • Wi-Fi6 certified: IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO

Memory & Data

  • Memory
    • 6 GB DDR4x RAM, 64 GB UFS Flash

Electrical

  • Battery Types
    • Li-ion

Environmental

  • Storage Temperature Range
    • -30°C to +70°C (-22°F to +158°F)
  • Operating Humidity
    • 5% to 95% (non-condensing)
  • Cold Storage
    • Yes, -20C minimum operating temperature

Standards & Approvals

  • Tumble Specifications
    • Exceeds 1,000 times at 0.5m (1.64 ft) per IEC 60068-2-32 specification
  • Drop Specifications
    • Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
  • Protection Ratings
    • Independently certified to meet IP65 and IP67 standards for moisture and particle intrusion

Others

  • Application
    • DC
    • E-Commerce
    • Manufacturing
    • Retail
    • Warehouse
  • Features
    • Compact and comfortable wearable MobilityEdge™ computer
  • Processor
    • Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
  • Battery Capacity
    • 3400 mAh (standard)
    • 6800 mAh (extended)
  • Operating Temperature
    • -20°C to +50°C (-4°F to +122°F)
  • Warranty Duration
    • One year factory warranty
  • Keypad
    • Full Touchscreen
  • Scan Distance
    • No Scanner
  • Connectivity
    • Wi-Fi
  • Environment
    • Standard
  • Application : DC|E-Commerce|Manufacturing|Retail|Warehouse
  • Features : Compact and comfortable wearable MobilityEdge™ computer
  • Overall Dimensions : 133 mm x 86 mm x 14 mm
  • Decode Capability : Can read barcodes with paired scanner accessory, or via integrated camera
  • Computer Wireless Communication : WLAN, Bluetooth, NFC
  • Bluetooth Specifications : Bluetooth 5.1, classic and BLE
  • WLAN Specifications : Wi-Fi6 certified: IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO
  • Memory : 6 GB DDR4x RAM, 64 GB UFS Flash
  • Processor : Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
  • Battery Capacity : 3400 mAh (standard)|6800 mAh (extended)
  • Battery Types : Li-ion
  • Storage Temperature Range : -30°C to +70°C (-22°F to +158°F)
  • Operating Temperature : -20°C to +50°C (-4°F to +122°F)
  • Operating Humidity : 5% to 95% (non-condensing)
  • Cold Storage : Yes, -20C minimum operating temperature
  • Tumble Specifications : Exceeds 1,000 times at 0.5m (1.64 ft) per IEC 60068-2-32 specification
  • Drop Specifications : Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
  • Protection Ratings : Independently certified to meet IP65 and IP67 standards for moisture and particle intrusion
  • Warranty Duration : One year factory warranty
  • Keypad : Full Touchscreen
  • Scan Distance : No Scanner
  • Connectivity : Wi-Fi
  • Environment : Standard
Data Sheet
Name
Description
File Size
Date
Size
CW45 Wearable Mobile Computer Datasheet
application/pdf 197.53 KB
1/26/2023
197.53 KB
Manuals and Guides
Name
Description
File Size
Date
Size
User Guide: Dolphin Power Tools for Devices Powered by Android 12 (PTL-A-EN-UG Rev B)
application/pdf 1.35 MB
10/1/2024
1.35 MB
User Guide: Enterprise Provisioner and Staging Hub Server Network Security (EPSH-W-EN-SG Rev B)
application/pdf 656.38 KB
10/1/2024
656.38 KB
User Guide: Launcher for Android (934-087-006 Rev C)
application/pdf 242.36 KB
10/1/2024
242.36 KB
User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
application/pdf 2.18 MB
10/23/2024
2.18 MB
User Guide: UEMConnect Settings (UEMConnect-EN-UG-1 Rev J)
application/pdf 801.53 KB
3/13/2025
801.53 KB
Decode Filter Script Command Reference Guide (HS-DFS-A-EN-CR-01 Rev D)
application/pdf 181.21 KB
10/1/2024
181.21 KB
User Guide: Enterprise Browser for Android (935-098-007 Rev C)
application/pdf 626.07 KB
10/1/2024
626.07 KB
User Guide: CW45 Wearable Computer (CW45-A-EN-UG-01 Rev E)
application/pdf 2.63 MB
5/28/2024
2.63 MB
Quick Start Guide: CW45 Wearable Computer (CW45-A-EN-QS-01 Rev G)
application/pdf 1.32 MB
3/28/2024
1.32 MB
User Guide: CW45 Accessories (CW45-ACC-EN-UG-01 Rev E)
application/pdf 1.64 MB
6/22/2023
1.64 MB
Cleaning Guide: General Purpose Devices without DRH (CLEAN-GP-EN-IN-01 Rev E)
application/pdf 70.47 KB
4/21/2025
70.47 KB
Quick Start Guide: CW45 - Arabic (CW45-A-AR-QS-01 Rev C)
application/pdf 1.34 MB
4/15/2024
1.34 MB
User Guide: HUpgrader (HUPGDR-A-EN-UG-01 Rev C)
application/pdf 438.97 KB
10/1/2024
438.97 KB
Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
application/pdf 397.98 KB
10/1/2024
397.98 KB
User Guide: 8675i Accessories (8675i -ACC-EN-UG-01 Rev D)
application/pdf 1.87 MB
4/4/2024
1.87 MB
Regulatory Information
Name
Description
File Size
Date
Size
Battery Pack Information: Models CW45-BAT-S/CW45-BAT-EX (CW45-BAT-ML-IN-01 Rev A)
application/pdf 475.71 KB
12/5/2022
475.71 KB
Regulatory Sheet: CK6x/CT3x/CT4x/CT6x/CW45 Accessories and EDA52 Display/Ethernet Docks (CT40-ACC-ML-RS-09 Rev A)
application/pdf 1.38 MB
3/17/2025
1.38 MB
Regulatory Sheet: CW45 Wearable Computer (CW45-ML-RS-04 Rev A)
application/pdf 1.31 MB
9/26/2024
1.31 MB
White Paper
Name
Description
File Size
Date
Size
White Paper: Battery Maintenance for Portable Devices - English
application/pdf 332.35 KB
10/1/2024
332.35 KB
Name
Description
File Size
Date
Size
User Guide: Dolphin Power Tools for Devices Powered by Android 12 (PTL-A-EN-UG Rev B)
application/pdf 1.35 MB
10/1/2024
1.35 MB
User Guide: Enterprise Provisioner and Staging Hub Server Network Security (EPSH-W-EN-SG Rev B)
application/pdf 656.38 KB
10/1/2024
656.38 KB
User Guide: Launcher for Android (934-087-006 Rev C)
application/pdf 242.36 KB
10/1/2024
242.36 KB
User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
application/pdf 2.18 MB
10/23/2024
2.18 MB
White Paper: Battery Maintenance for Portable Devices - English
application/pdf 332.35 KB
10/1/2024
332.35 KB
User Guide: UEMConnect Settings (UEMConnect-EN-UG-1 Rev J)
application/pdf 801.53 KB
3/13/2025
801.53 KB
Decode Filter Script Command Reference Guide (HS-DFS-A-EN-CR-01 Rev D)
application/pdf 181.21 KB
10/1/2024
181.21 KB
User Guide: Enterprise Browser for Android (935-098-007 Rev C)
application/pdf 626.07 KB
10/1/2024
626.07 KB
User Guide: CW45 Wearable Computer (CW45-A-EN-UG-01 Rev E)
application/pdf 2.63 MB
5/28/2024
2.63 MB
Battery Pack Information: Models CW45-BAT-S/CW45-BAT-EX (CW45-BAT-ML-IN-01 Rev A)
application/pdf 475.71 KB
12/5/2022
475.71 KB
Regulatory Sheet: CK6x/CT3x/CT4x/CT6x/CW45 Accessories and EDA52 Display/Ethernet Docks (CT40-ACC-ML-RS-09 Rev A)
application/pdf 1.38 MB
3/17/2025
1.38 MB
Quick Start Guide: CW45 Wearable Computer (CW45-A-EN-QS-01 Rev G)
application/pdf 1.32 MB
3/28/2024
1.32 MB
Regulatory Sheet: CW45 Wearable Computer (CW45-ML-RS-04 Rev A)
application/pdf 1.31 MB
9/26/2024
1.31 MB
User Guide: CW45 Accessories (CW45-ACC-EN-UG-01 Rev E)
application/pdf 1.64 MB
6/22/2023
1.64 MB
CW45 Wearable Mobile Computer Datasheet
application/pdf 197.53 KB
1/26/2023
197.53 KB
Cleaning Guide: General Purpose Devices without DRH (CLEAN-GP-EN-IN-01 Rev E)
application/pdf 70.47 KB
4/21/2025
70.47 KB
Quick Start Guide: CW45 - Arabic (CW45-A-AR-QS-01 Rev C)
application/pdf 1.34 MB
4/15/2024
1.34 MB
User Guide: HUpgrader (HUPGDR-A-EN-UG-01 Rev C)
application/pdf 438.97 KB
10/1/2024
438.97 KB
Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
application/pdf 397.98 KB
10/1/2024
397.98 KB
User Guide: 8675i Accessories (8675i -ACC-EN-UG-01 Rev D)
application/pdf 1.87 MB
4/4/2024
1.87 MB
Name
Date
Size
Showing 1 to 10 of 24 parts
Product Number
Part Number
Description
Leaf Category
Thumbnail
CW45-5CB-UVN-0
KIT,5-BAY CHARGE BASE,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-5CB-UVN-0
KIT,5-BAY CHARGE BASE,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-5CBS-UVN-0
CHARGER,5 BAY 4XCW45 AND 4X8675I
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-5CBS-UVN-0
CHARGER,5 BAY 4XCW45 AND 4X8675I
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-8675-CBL
CABLE,CW45 TO 8675I
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-8675-CBL
CABLE,CW45 TO 8675I
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-BAT-EX
EXT BATTERY,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-BAT-EX
EXT BATTERY,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-BAT-S
STD BATTERY,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-BAT-S
STD BATTERY,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-CB-UVN-0
KIT,4-BAY CHARGER,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-CB-UVN-0
KIT,4-BAY CHARGER,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-CPAD
ARM MOUNT COMFORT PAD 5PCS,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-CPAD
ARM MOUNT COMFORT PAD 5PCS,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-EB-UVN-0
KIT,ETHERNET HB CHARGER,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-EB-UVN-0
KIT,ETHERNET HB CHARGER,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-MOUNT
ARM MOUNT,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-MOUNT
ARM MOUNT,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-NB-UVN-0
4-BAY NETBASE,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798
CW45-NB-UVN-0
4-BAY NETBASE,CW45
https://honeywell.scene7.com/is/image/Honeywell65/sps-ppr-CW45-Front-Angle-Right-1200x798

Get More Productivity with the CW45 Wearable Mobile Computer

Complete Your Solution

Honeywell Operational Intelligence
Honeywell Operational Intelligence
Less risk and better ROI from your mobility solution. Less disruption and better operational performance.
Less risk and better ROI from your mobility solution. Less disruption and better operational performance.
Learn More
Honeywell Smart Talk
Honeywell Smart Talk
Enable employees to be more productive with a highly flexible enterprise grade Unified Communications solution.
Enable employees to be more productive with a highly flexible enterprise grade Unified Communications solution.
Learn More
Honeywell Support Services
Honeywell Support Services
Maximize the value of your mobile devices with complete support throughout the full lifecycle.
Maximize the value of your mobile devices with complete support throughout the full lifecycle.
Learn More
Feedback
