    IH45 RFID Handheld Reader

    Honeywell's next generation IH45 RFID Reader caters to workers in Retail, Warehouse, Transport & Logistics and Manufacturing.

    Overview
    IH45 RFID Reader augments retail’s storefront and warehouse inventory management, increasing inventory accuracy, reducing demand mismatch, and keeping inventory stocked. Accurate picking through IH45 drives omni channel enablement.
    With IH45 RFID readers warehouse workers can significantly reduce travel time when picking and putting away inventory, and dramatically improve the accuracy of inventory counts, order fulfillment, shipping & verification and proof of delivery. In Transport & Logistic vertical, workers can increase sorting and delivery efficiencies. Manufacturing workers can keep inventory stocked for the manufacturing line thus increasing overall output.
    Workers can count inventory in the store, warehouse, and manufacturing plant faster than with barcodes, often in a matter of a few hours, enabling more frequent inventory updates and closer management of inventory levels.

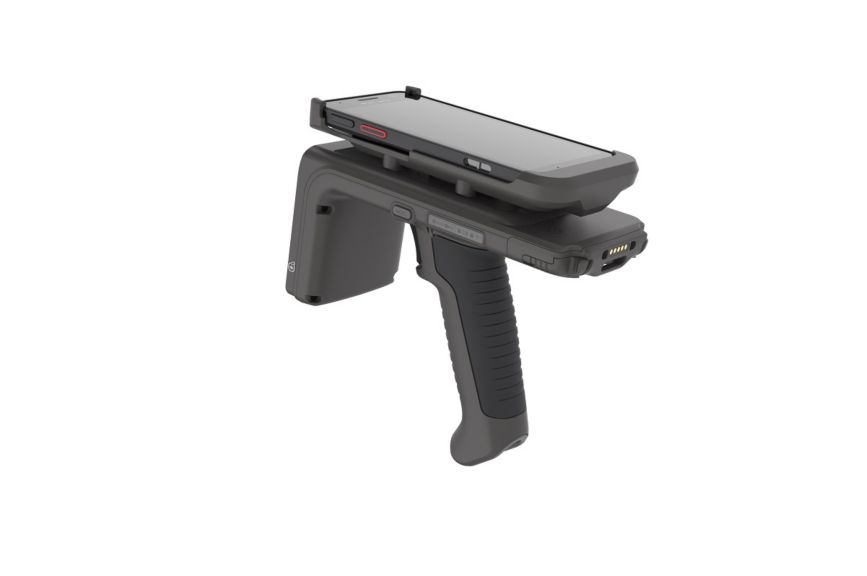

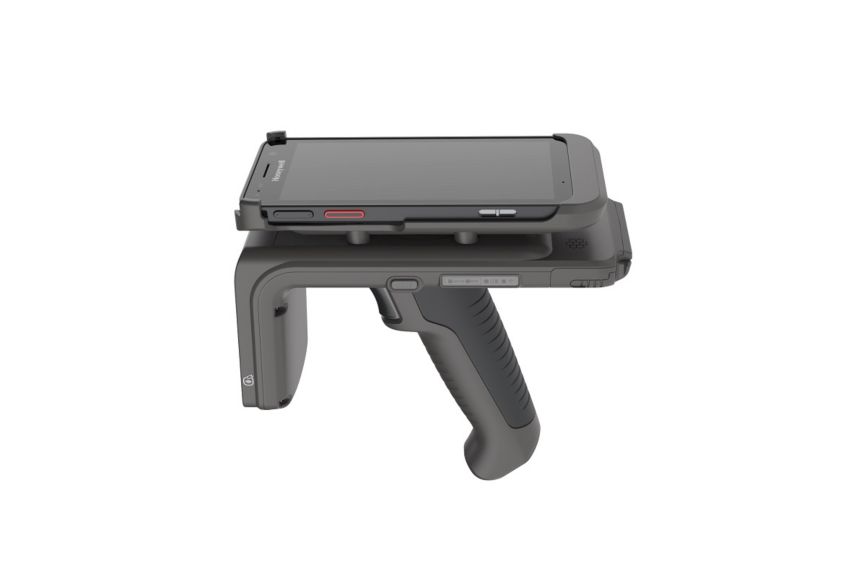

    Lightweight and ergonomically designed, Honeywell IH45, paired with a Honeywell high performance mobile computer, offers best in class UHF plus 1D/2D scanning, RFID range and speed. IH45 allows workers to capture RFID tags and barcodes with same device combo. Ideal for standard-range RFID applications, the IH45 can capture RFID tags up to 6 m (20 ft) away. The high capacity field-replaceable battery typically lasts a full shift, boosting task speed and ease of use.

    Key features include:
    • IH45 combined with a handheld device is a complete solution for retail inventory count, inventory management and other workflows, which increases revenue, margins, and customer engagement.
    • High tag read rate increases efficiency and reduces costs.

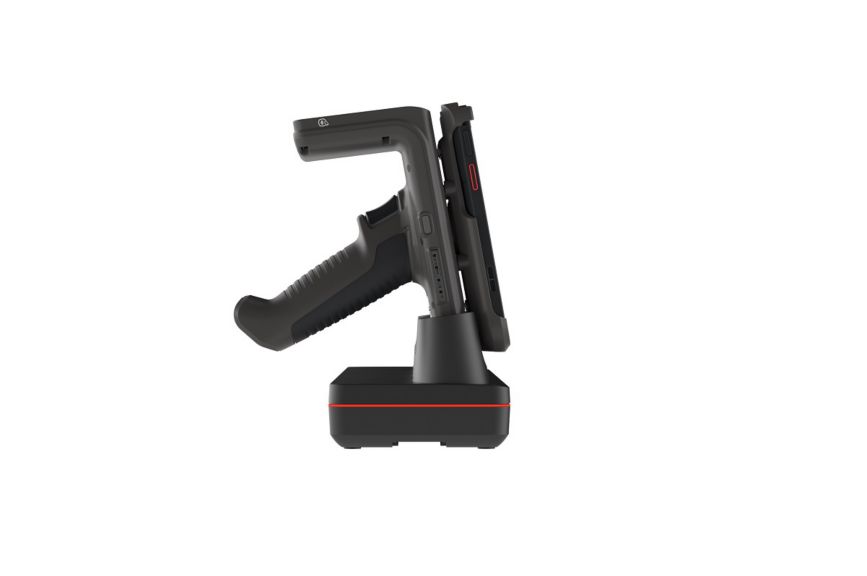

    • The IH45 and mobile computer attached charge together on a single charging station making it easy and faster to charge; Multiple charging options available for device and battery charging
    • Connects directly to device, zeroing device pairing time
    • Ergonomic handle, balanced design provides extended use in different usage scenarios
    • Exceptional read range, increases productivity and decreases manual effort
    • Large, 4000 mAH battery enables uninterrupted use over long periods, with easy to change battery flap
    Specifications

    Features

    • Compatible Device
      • CT30 XP
      • CT40/XP
      • CT45/XP
      • CT60/XP
      • EDA51/K
      • EDA52
      • EDA56
    • Features
      • Direct USB Connection
      • Easy to Charge
      • Efficient Read Rate
      • Ergonomic Design
      • Intergraded NFC Tag Reading
      • Large Capacity Battery
      • Light weight

    Dimensions

    • Overall Dimensions
      • 190 mm x 79 mm x 154 mm (7.5 in x 3.1 in x 6.1 in)

    Network

    • RFID Specifications
      • EPC Class 1 Gen2
      • ISO 18000- 6c
      • ISO 18000-63
    • RFID Frequency Band
      • EU: 865 MHz to 868 MHz
      • US: 902 MHz to 928 MHz
    • Bluetooth Specifications
      • V5.0 Bluetooth and BLE

    Electrical

    • Battery Types
      • Li-ion

    Environmental

    • Storage Temperature Range
      • -20°C to 60°C
    • Operating Humidity
      • 5% to 95% non-condensing

    Standards & Approvals

    • Protection Ratings
      • IP54
    • Drop Specifications
      • Multiple 1.2 m (4 ft) drops to concrete (0° to 40°)
    • Tumble Specifications
      • 1000 tumbles at 0.5 m (1.6 ft)

    Others

    • Battery capacity
      • 4000mAh
    • Operating temperature
      • -10°C to 40°C

    Features

    • Compatible Device
      • CT30 XP
      • CT40/XP
      • CT45/XP
      • CT60/XP
      • EDA51/K
      • EDA52
      • EDA56
    • Features
      • Direct USB Connection
      • Easy to Charge
      • Efficient Read Rate
      • Ergonomic Design
      • Intergraded NFC Tag Reading
      • Large Capacity Battery
      • Light weight

    Dimensions

    • Overall Dimensions
      • 190 mm x 79 mm x 154 mm (7.5 in x 3.1 in x 6.1 in)

    Network

    • RFID Specifications
      • EPC Class 1 Gen2
      • ISO 18000- 6c
      • ISO 18000-63
    • RFID Frequency Band
      • EU: 865 MHz to 868 MHz
      • US: 902 MHz to 928 MHz
    • Bluetooth Specifications
      • V5.0 Bluetooth and BLE

    Electrical

    • Battery Types
      • Li-ion

    Environmental

    • Storage Temperature Range
      • -20°C to 60°C
    • Operating Humidity
      • 5% to 95% non-condensing

    Standards & Approvals

    • Protection Ratings
      • IP54
    • Drop Specifications
      • Multiple 1.2 m (4 ft) drops to concrete (0° to 40°)
    • Tumble Specifications
      • 1000 tumbles at 0.5 m (1.6 ft)

    Others

    • Battery capacity
      • 4000mAh
    • Operating temperature
      • -10°C to 40°C
    • Compatible Device : CT30 XP|CT40/XP|CT45/XP|CT60/XP|EDA51/K|EDA52|EDA56
    • Features : Direct USB Connection|Easy to Charge|Efficient Read Rate|Ergonomic Design|Intergraded NFC Tag Reading|Large Capacity Battery|Light weight
    • Overall Dimensions : 190 mm x 79 mm x 154 mm (7.5 in x 3.1 in x 6.1 in)
    • RFID Specifications : EPC Class 1 Gen2|ISO 18000- 6c|ISO 18000-63
    • RFID Frequency Band : EU: 865 MHz to 868 MHz|US: 902 MHz to 928 MHz
    • Bluetooth Specifications : V5.0 Bluetooth and BLE
    • Battery capacity : 4000mAh
    • Battery Types : Li-ion
    • Storage Temperature Range : -20°C to 60°C
    • Operating temperature : -10°C to 40°C
    • Operating Humidity : 5% to 95% non-condensing
    • Protection Ratings : IP54
    • Drop Specifications : Multiple 1.2 m (4 ft) drops to concrete (0° to 40°)
    • Tumble Specifications : 1000 tumbles at 0.5 m (1.6 ft)
