IH25 RFID Handheld Reader
IH25 RFID Handheld Reader
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product is discontinued. We may offer firmware, drivers and manuals for your convenience, as well as online tech support. If you require additional support, please contact us using the links above.
Product Discontinuation Date:March 1, 2024
Service & Support Discontinuation Date: December 31, 2029
Product Replacement:
IH40 RFID Handheld Reader

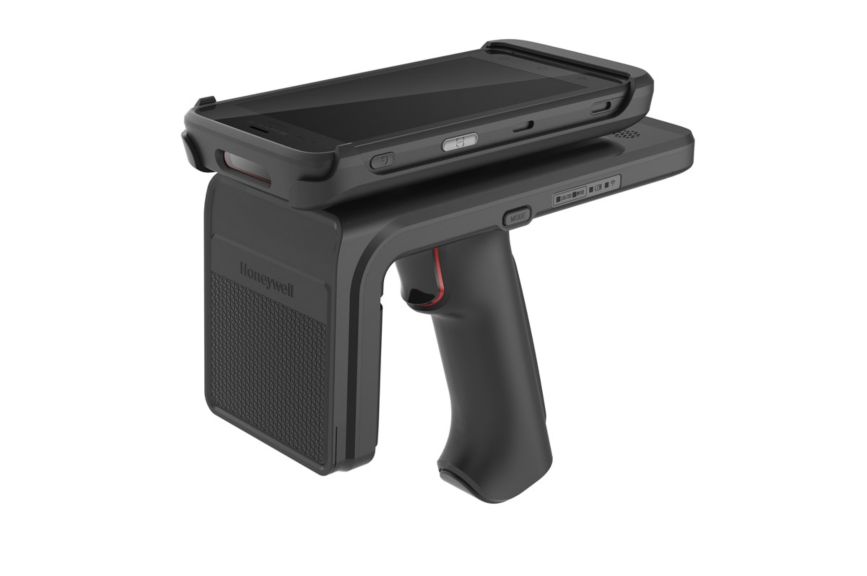

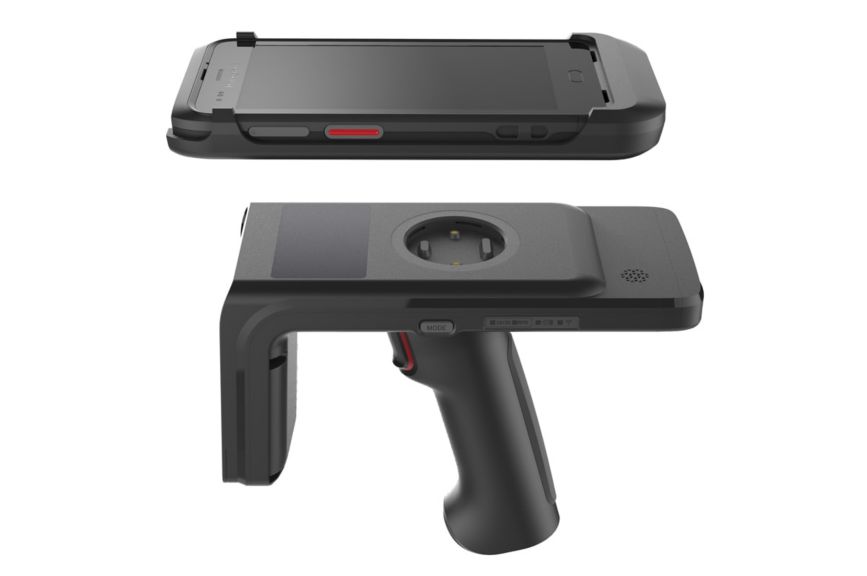

Honeywell’s new IH25 RFID reader, combined with RFID tagging, offers an easier solution to keep track of high moving inventory with less effort. Retailers can count inventory in the store and warehouse 25 times faster than with barcodes, often in a matter of a few hours, enabling more frequent inventory updates and closer management of inventory levels. Lightweight and ergonomically designed, the Honeywell IH25, paired with a Honeywell high performance mobile computer, offers best in class UHF plus 1D/2D scanning, RFID range and speed.
- High tag read rate increases efficiency and reduces costs.
- Single charging station for Reader and Computer makes it easy and faster to charge.
- Ergonomic, balanced design provides extended use in different usage scenarios.
- Exceptional read range, increases productivity and decreases manual effort.
- Large, 4000 mAH battery enables uninterrupted use over long periods.
Specifications
Features
- Features
- Easy to Charge
- Efficient Read Rate
- Ergonomic Design
- Geiger counting
- Large Battery Charge
- Wedge Support
- Compatible Device
- CT40/XP (booted and non booted)
- CT45
- CT60/XP
- EDA51/K
Dimensions
- Overall Dimensions
- Weight: 430g without Mobile Computer
- Without Mobile Computer 185*77.8*147mm
Network
- Bluetooth Specifications
- Bluetooth Pairing: Simple Secure Pairing
- V.5.0 DIS Profile, BAS Profile BLE
- RFID Frequency Band
- EU: 865-868 MHz
- US: 902-928 MHz
Environmental
- Operating Humidity
- 5-95% non-condensing
- Storage Temperature Range
- -20° to 60°
Standards & Approvals
- Tumble Specifications
- 1000 tumbles at 1.6ft/0.5m
- Drop Specifications
- Multiple 4ft/1.2m drops to concrete (0°-40°)
- Protection Ratings
- IP54
Others
- Application
- Asset Management
- Inventory Management
- Omni-channel fulfillment
- Operational Efficiencies
- For Use With
- CT40 (booted and non booted)
- CT60
- EDA51
- Operating temperature
- -10° to 40°
- Brand
- Honeywell
Features
- Features
- Easy to Charge
- Efficient Read Rate
- Ergonomic Design
- Geiger counting
- Large Battery Charge
- Wedge Support
- Compatible Device
- CT40/XP (booted and non booted)
- CT45
- CT60/XP
- EDA51/K
Dimensions
- Overall Dimensions
- Weight: 430g without Mobile Computer
- Without Mobile Computer 185*77.8*147mm
Network
- Bluetooth Specifications
- Bluetooth Pairing: Simple Secure Pairing
- V.5.0 DIS Profile, BAS Profile BLE
- RFID Frequency Band
- EU: 865-868 MHz
- US: 902-928 MHz
Environmental
- Operating Humidity
- 5-95% non-condensing
- Storage Temperature Range
- -20° to 60°
Standards & Approvals
- Tumble Specifications
- 1000 tumbles at 1.6ft/0.5m
- Drop Specifications
- Multiple 4ft/1.2m drops to concrete (0°-40°)
- Protection Ratings
- IP54
Others
- Application
- Asset Management
- Inventory Management
- Omni-channel fulfillment
- Operational Efficiencies
- For Use With
- CT40 (booted and non booted)
- CT60
- EDA51
- Operating temperature
- -10° to 40°
- Brand
- Honeywell
- Application : Asset Management|Inventory Management|Omni-channel fulfillment|Operational Efficiencies
- Features : Easy to Charge|Efficient Read Rate|Ergonomic Design|Geiger counting|Large Battery Charge|Wedge Support
- For Use With : CT40 (booted and non booted)|CT60|EDA51
- Compatible Device : CT40/XP (booted and non booted)|CT45|CT60/XP|EDA51/K
- Overall Dimensions : Weight: 430g without Mobile Computer|Without Mobile Computer 185*77.8*147mm
- Bluetooth Specifications : Bluetooth Pairing: Simple Secure Pairing|V.5.0 DIS Profile, BAS Profile BLE
- RFID Frequency Band : EU: 865-868 MHz|US: 902-928 MHz
- Operating Humidity : 5-95% non-condensing
- Operating temperature : -10° to 40°
- Storage Temperature Range : -20° to 60°
- Tumble Specifications : 1000 tumbles at 1.6ft/0.5m
- Drop Specifications : Multiple 4ft/1.2m drops to concrete (0°-40°)
- Protection Ratings : IP54
- Brand : Honeywell
