CT47 Handheld Computer

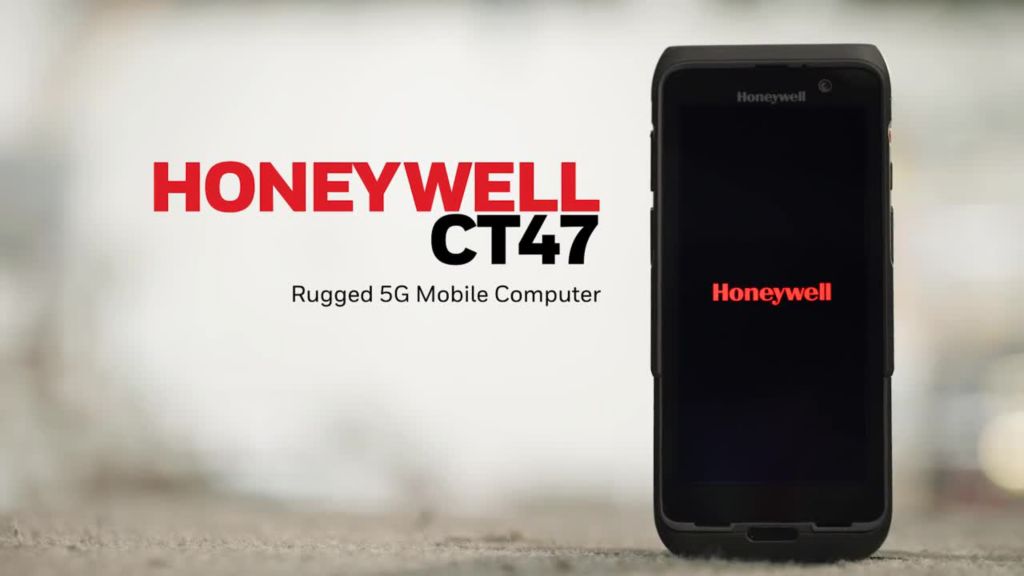

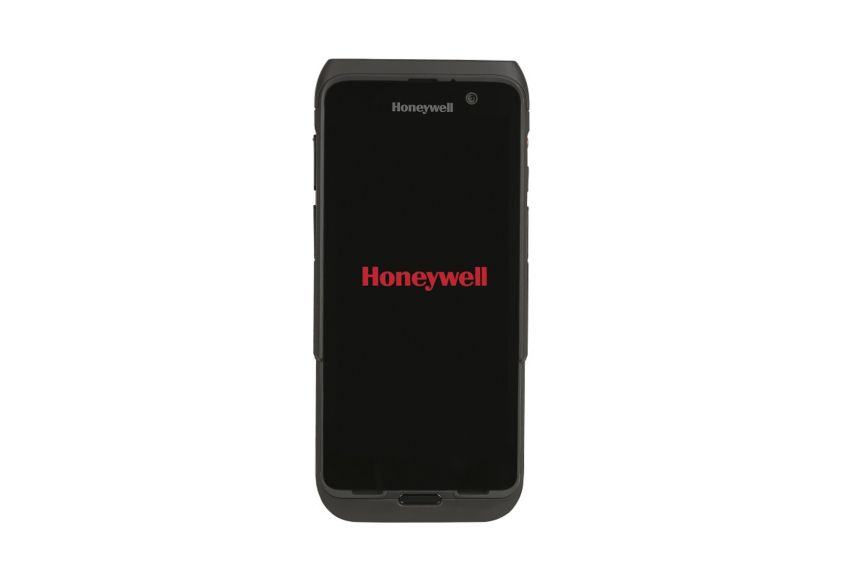

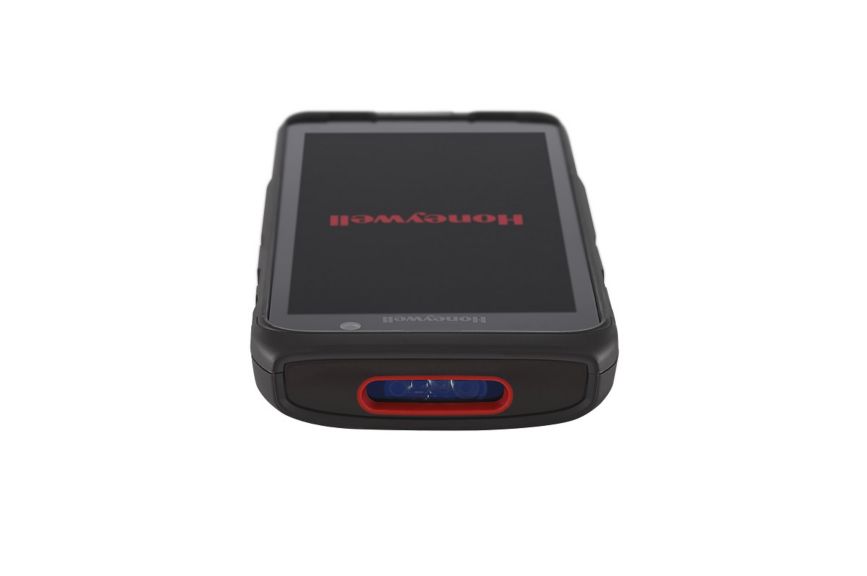

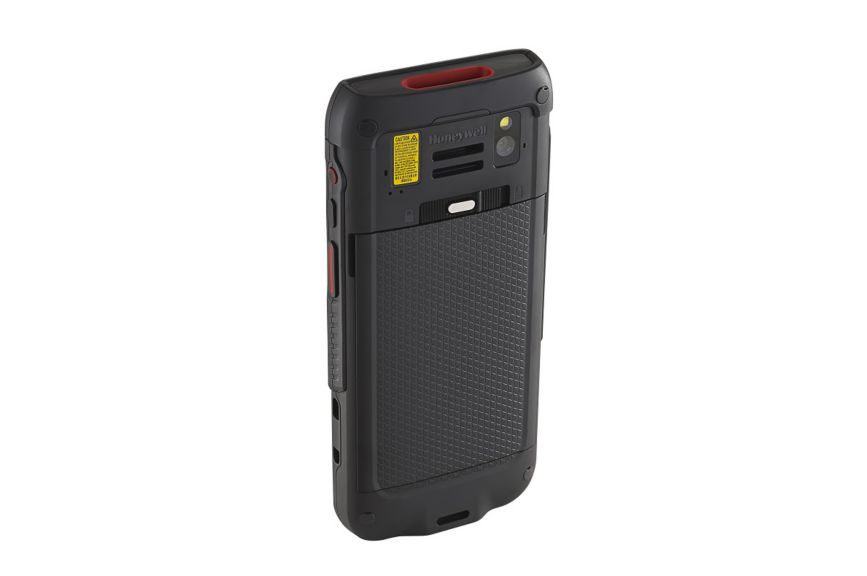

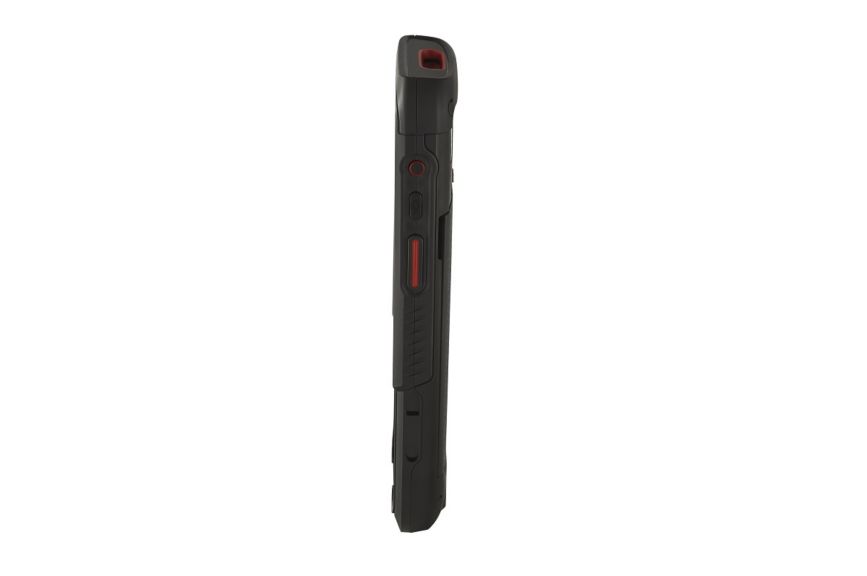

CT47 mobile computer, built on the Mobility Edge™ platform, are ultra-rugged, all-purpose productivity devices ensuring reliable performance, 5G data connectivity and communications for front-line mobile workers in logistics, warehouse and fieldwork
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
- Built on the newest generation of Mobility Edge™, a durable, stable and secure foundation for effective, long-lasting solutions.
- Uses the latest Qualcomm® QCM 6490 processor and memory technology for high performance.
- Guaranteed support through Android 15.
- Offers the latest 5G and Wi-Fi 6E technology to stay connected in various environments.
- Reliable uptime and connection regardless in 5G, Wi-Fi 6E and CBRS networks.
- Authentication technology means the CT47 keeps your data safe. Biometric login for simplified access and multiple-user logins are encrypted and stored locally.

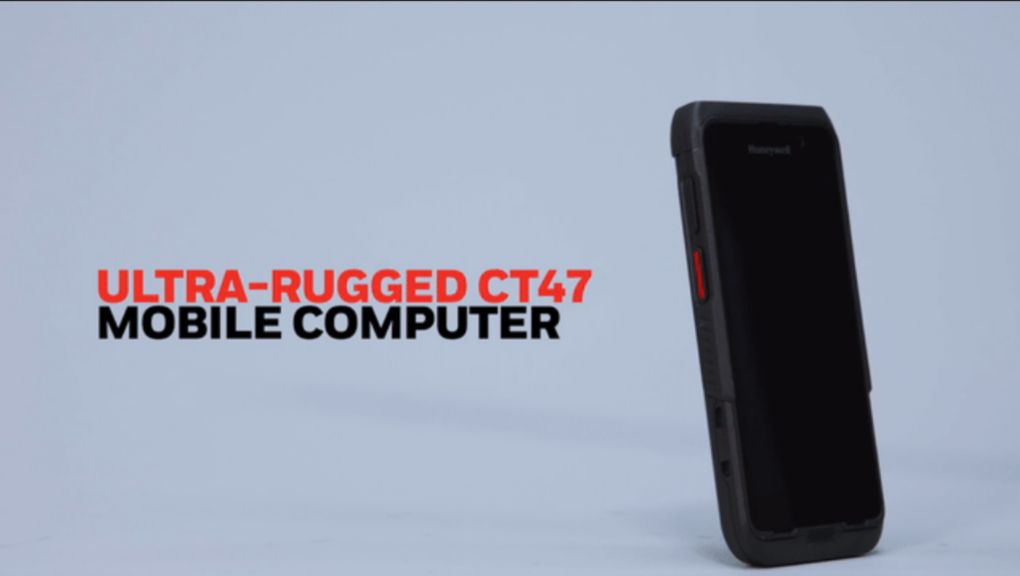

- The CT47’s ultra-rugged design allows it to withstand up to 8-foot drops and 3,500 real-world tumbles.
- 4775-mAh battery helps keep the CT47 up and running throughout demanding shifts, while Operational Intelligence works to provide powerful analytics on device usage and battery health.
- Certified dust- and water-protection matched with Gorilla Glass 5 FHD screen in a sleek form factor that can withstand the most rugged use cases and environments.
Features
- Application
- Transportation & Logistics, Warehouse, Manufacturing, Field Operations
Dimensions
- Overall Dimensions
- 170mm x 79mm x 19.2mm
Scanning Specifications
- Decode Capability
- Standard Range Engine S0703 (1D/2D barcode symbologies)Honeywell FlexRange™ N6803Honeywell FlexRange™ XLR S0803
Network
- WWAN Specifications
- WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)AT&T FirstNet CompliantLTE Advanced Support: Up to 390 Mbps CAT13 LTE downlink. Up to 75 Mbps CAT5 LTE uplink5G FR1: Bands 1, 2, 3, 4, 5, 7, 8, 12, 14, 20, 25, 28, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 38, 39, 40, 41, 42, 43, 66, 71UMTS/HSPA+ (3G): Bands 1, 2, 4, 5, 6, 8, 9, 19GSM: 850, 900, 1800, 1900 (Quad Bands)4X4 MIMO supported: 5G: n7, n38, n41, n48, n77, n78, n79. 4G: B7, B41, B42, B43, B48
- WLAN Specifications
- Wi-Fi certified; Wi-Fi™ 6E certifiedIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO; Wi-Fi™ 6E (801.11ax); Dual Band Simultaneous(DBS); IPv4, IPv6WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible
- Computer Wireless Communication
- 5G & WiFi 6E
- Bluetooth Specifications
- 5.2
Software & Firmware
- Operating System
- Released with Android 12 and guaranteed through Android 15
- Platform
- Mobility Edge
- Operating System Type
- Android
Memory & Data
- Memory
- 6GB DDR4x RAM, 128GB UFS Flash8GB DDR4x RAM, 128GB UFS FlashUser-accessible microSD card up to 2TB (SDXC/SDHC/SDIO – compliant)
Hardware
- Processor
- Qualcomm QCS6490/QCM6490 octa-core 2.7GHz
- Display Size
- 14 cm (5.5 in)
- 14cm (5.5in)
Electrical
- Battery Types
- Standard & Wireless
- Battery Type
- Lithium Ion
Environmental
- Storage Temperature Range
- -30°C to +70°C (-22°F to +158°F)
- -30°C to +70°C(-22°F to +158°F)
- Operating Temperature
- -20°C to +50°C (-4°F to +122°F)
Standards & Approvals
- Tumble Specifications
- Exceeds 2,000 tumbles at 1m (3.28ft) per IEC 60068-2-32 specificationExceeds 3,500 tumbles at 0.5m (1.64ft) per IEC 60068-2-32 specification
- Protection Ratings
- Certified for IP65 & IP68
- Drop Specifications
- Multiple 2.45m (8 ft.) drops to concrete per MIL-STD-810H
- Multiple 2.45m (8ft) drops to concrete per MIL-STD-810HMultiple 2.75m (9ft) drops to concrete with protective boot per MIL-STD-810H
- Multiple 2.75m (9 ft.) drops to concrete with protective boot per MIL-STD-810H
Service Terms
- Warranty Duration
- 1 year
Features
- Application
- Transportation & Logistics, Warehouse, Manufacturing, Field Operations
Dimensions
- Overall Dimensions
- 170mm x 79mm x 19.2mm
Scanning Specifications
- Decode Capability
- Standard Range Engine S0703 (1D/2D barcode symbologies)Honeywell FlexRange™ N6803Honeywell FlexRange™ XLR S0803
Network
- WWAN Specifications
- WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)AT&T FirstNet CompliantLTE Advanced Support: Up to 390 Mbps CAT13 LTE downlink. Up to 75 Mbps CAT5 LTE uplink5G FR1: Bands 1, 2, 3, 4, 5, 7, 8, 12, 14, 20, 25, 28, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 38, 39, 40, 41, 42, 43, 66, 71UMTS/HSPA+ (3G): Bands 1, 2, 4, 5, 6, 8, 9, 19GSM: 850, 900, 1800, 1900 (Quad Bands)4X4 MIMO supported: 5G: n7, n38, n41, n48, n77, n78, n79. 4G: B7, B41, B42, B43, B48
- WLAN Specifications
- Wi-Fi certified; Wi-Fi™ 6E certifiedIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO; Wi-Fi™ 6E (801.11ax); Dual Band Simultaneous(DBS); IPv4, IPv6WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible
- Computer Wireless Communication
- 5G & WiFi 6E
- Bluetooth Specifications
- 5.2
Software & Firmware
- Operating System
- Released with Android 12 and guaranteed through Android 15
- Platform
- Mobility Edge
- Operating System Type
- Android
Memory & Data
- Memory
- 6GB DDR4x RAM, 128GB UFS Flash8GB DDR4x RAM, 128GB UFS FlashUser-accessible microSD card up to 2TB (SDXC/SDHC/SDIO – compliant)
Hardware
- Processor
- Qualcomm QCS6490/QCM6490 octa-core 2.7GHz
- Display Size
- 14 cm (5.5 in)
- 14cm (5.5in)
Electrical
- Battery Types
- Standard & Wireless
- Battery Type
- Lithium Ion
Environmental
- Storage Temperature Range
- -30°C to +70°C (-22°F to +158°F)
- -30°C to +70°C(-22°F to +158°F)
- Operating Temperature
- -20°C to +50°C (-4°F to +122°F)
Standards & Approvals
- Tumble Specifications
- Exceeds 2,000 tumbles at 1m (3.28ft) per IEC 60068-2-32 specificationExceeds 3,500 tumbles at 0.5m (1.64ft) per IEC 60068-2-32 specification
- Protection Ratings
- Certified for IP65 & IP68
- Drop Specifications
- Multiple 2.45m (8 ft.) drops to concrete per MIL-STD-810H
- Multiple 2.45m (8ft) drops to concrete per MIL-STD-810HMultiple 2.75m (9ft) drops to concrete with protective boot per MIL-STD-810H
- Multiple 2.75m (9 ft.) drops to concrete with protective boot per MIL-STD-810H
Service Terms
- Warranty Duration
- 1 year
- Application : Transportation & Logistics, Warehouse, Manufacturing, Field Operations|
- Overall Dimensions : 170mm x 79mm x 19.2mm|
- Decode Capability : Standard Range Engine S0703 (1D/2D barcode symbologies)Honeywell FlexRange™ N6803Honeywell FlexRange™ XLR S0803|
- WWAN Specifications : WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)AT&T FirstNet CompliantLTE Advanced Support: Up to 390 Mbps CAT13 LTE downlink. Up to 75 Mbps CAT5 LTE uplink5G FR1: Bands 1, 2, 3, 4, 5, 7, 8, 12, 14, 20, 25, 28, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 38, 39, 40, 41, 42, 43, 66, 71UMTS/HSPA+ (3G): Bands 1, 2, 4, 5, 6, 8, 9, 19GSM: 850, 900, 1800, 1900 (Quad Bands)4X4 MIMO supported: 5G: n7, n38, n41, n48, n77, n78, n79. 4G: B7, B41, B42, B43, B48|
- WLAN Specifications : Wi-Fi certified; Wi-Fi™ 6E certifiedIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO; Wi-Fi™ 6E (801.11ax); Dual Band Simultaneous(DBS); IPv4, IPv6WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible|
- Computer Wireless Communication : 5G & WiFi 6E|
- Bluetooth Specifications : 5.2|
- Operating System : Released with Android 12 and guaranteed through Android 15|
- Memory : 6GB DDR4x RAM, 128GB UFS Flash8GB DDR4x RAM, 128GB UFS FlashUser-accessible microSD card up to 2TB (SDXC/SDHC/SDIO – compliant)|
- Processor : Qualcomm QCS6490/QCM6490 octa-core 2.7GHz|
- Display Size : 14 cm (5.5 in)|14cm (5.5in)|
- Battery Types : Standard & Wireless|
- Battery Type : Lithium Ion|
- Storage Temperature Range : -30°C to +70°C (-22°F to +158°F)|-30°C to +70°C(-22°F to +158°F)|
- Operating Temperature : -20°C to +50°C (-4°F to +122°F)|
- Tumble Specifications : Exceeds 2,000 tumbles at 1m (3.28ft) per IEC 60068-2-32 specificationExceeds 3,500 tumbles at 0.5m (1.64ft) per IEC 60068-2-32 specification|
- Protection Ratings : Certified for IP65 & IP68|
- Drop Specifications : Multiple 2.45m (8 ft.) drops to concrete per MIL-STD-810H|Multiple 2.45m (8ft) drops to concrete per MIL-STD-810HMultiple 2.75m (9ft) drops to concrete with protective boot per MIL-STD-810H|Multiple 2.75m (9 ft.) drops to concrete with protective boot per MIL-STD-810H|
- Warranty Duration : 1 year|
- Platform : Mobility Edge|
- Operating System Type : Android|
