CN75e Handheld Computer

CN75e Handheld-Computer

Overview

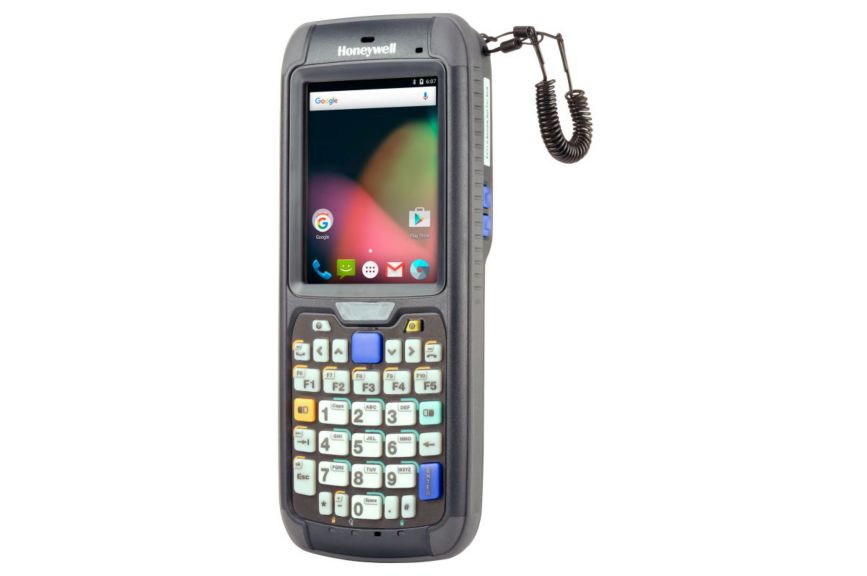

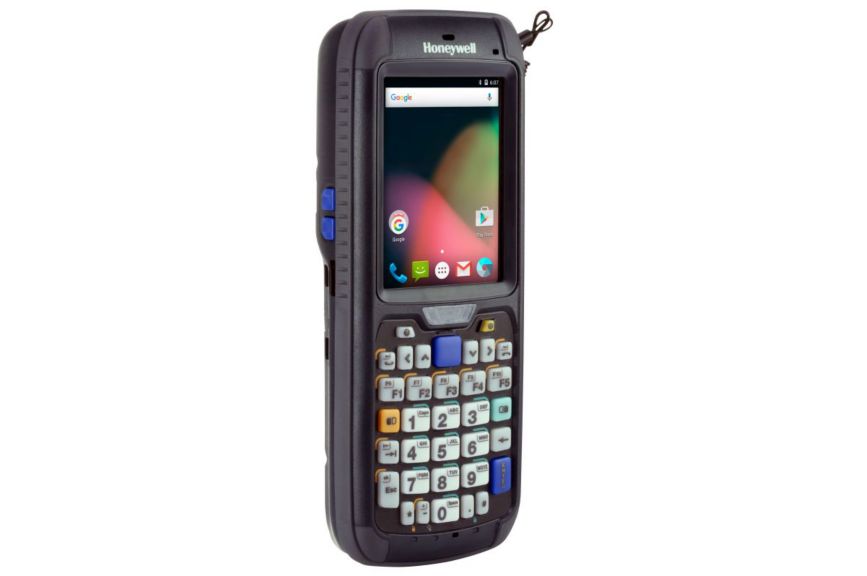

cn75e gallery image
This product is discontinued. We may offer firmware, drivers and manuals for your convenience, as well as online tech support. If you require additional support, please contact us using the links above.
Product Discontinuation Date:January 31, 2021
Service & Support Discontinuation Date: December 31, 2026

The Honeywell CN75e mobile computers offer the versatility companies demand, providing the choice of a Windows®: or Android™: operating system on a single device to meet changing enterprise business demands. The no-compromise design is powered by a 1.5 GHz dual-core, multi-engine processor with 2 GB RAM for the highest degree of future-proofing.

  • Flexible radio technology provides optimal network coverage and a superior solution for implementing least-cost routing strategies.
  • Advanced barcode imaging technology with motion tolerance for snappy scanning and white illumination with laser aiming for high read rates.
  • Supports Windows Embedded Handheld 6.5 and Android 6.0 Marshmallow operating systems for flexible application support and migration.
  • Full compatibility with printers, application software, communications and a complete set of peripherals and accessories, enabling a comprehensive enterprise business solution.
  • Withstands 2.4 m (8 ft) drops to concrete, 2,000 (1 m) tumbles and has an IP67 seal rating against rain and dust.

The Honeywell CN75e mobile computers offer the versatility customers demand, providing the choice of a Windows®: or Android™: operating system on a single device to meet changing enterprise business demands. The no-compromise design is powered by a 1.5 GHz dual-core, multi-engine processor with 2 GB RAM and 16 GB Flash, offering the highest degree of future-proofing capability.Specifically designed for mobile field service workers who need power and performance in a compact form factor, the Honeywell CN75e mobile computer offers the perfect balance of ruggedness, duty cycle and ergonomics while providing unparalleled versatility. The CN75e device offers a larger keypad design, making it ideal for delivery environments where workers may be wearing gloves or have more data input–:intensive applications. The CN75e mobile computers deliver unparalleled reliability with smart battery technology that provides enough power to last a full work shift, eliminating dead batteries and downtime. The CN75e mobile computers are also equipped with a high-performance imager that provides fast and accurate barcode scanning capabilities even in low-light scanning environments, with unmatched motion tolerance to eliminate costly delays in scan-intensive applications. The no-compromise design extends to radio connectivity, as well. The wide-area solutions feature a Flexible Network voice and data WWAN radio that operates on networks worldwide, offering switch-on-the-fly network selection capability and eliminating the need for multiple pools of devices dedicated to one network.

Specifications

Features

  • Housing Grade
    • Standard
  • Features
    • Compact
    • Rugged

Dimensions

  • Overall Dimensions
    • 19.5 x 8.0 x 3.4 cm
    • 7.66 x 3.15 x 1.34 in

Software & Firmware

  • Operating System
    • Android 6.0 Marshmallow
    • Windows Embedded Handheld 6.5

Hardware

  • Processor
    • Texas Instruments 1.5 GHz OMAP 4470 dual-core
  • Display Size
    • 3.5 in
    • 8.9 cm
  • Display Resolution
    • 480 x 640

Environmental

  • Storage Temperature Range
    • - 22 - 158 °F
    • - 30 - 70 °C
  • Operating Temperature
    • - 20 - 60 °C
    • - 4 - 140 °F

Standards & Approvals

  • Tumble Specifications
    • 2000 1.0 m tumbles
  • Drop Specifications
    • 2.4 m (8 ft) to concrete, 1.8 m (6 ft) to concrete across operating temperature range

ERP

  • Brand
    • Honeywell

Features

  • Housing Grade
    • Standard
  • Features
    • Compact
    • Rugged

Dimensions

  • Overall Dimensions
    • 19.5 x 8.0 x 3.4 cm
    • 7.66 x 3.15 x 1.34 in

Software & Firmware

  • Operating System
    • Android 6.0 Marshmallow
    • Windows Embedded Handheld 6.5

Hardware

  • Processor
    • Texas Instruments 1.5 GHz OMAP 4470 dual-core
  • Display Size
    • 3.5 in
    • 8.9 cm
  • Display Resolution
    • 480 x 640

Environmental

  • Storage Temperature Range
    • - 22 - 158 °F
    • - 30 - 70 °C
  • Operating Temperature
    • - 20 - 60 °C
    • - 4 - 140 °F

Standards & Approvals

  • Tumble Specifications
    • 2000 1.0 m tumbles
  • Drop Specifications
    • 2.4 m (8 ft) to concrete, 1.8 m (6 ft) to concrete across operating temperature range

ERP

  • Brand
    • Honeywell
  • Housing Grade : Standard
  • Features : Compact|Rugged
  • Overall Dimensions : 19.5 x 8.0 x 3.4 cm|7.66 x 3.15 x 1.34 in
  • Operating System : Android 6.0 Marshmallow|Windows Embedded Handheld 6.5
  • Processor : Texas Instruments 1.5 GHz OMAP 4470 dual-core
  • Display Size : 3.5 in|8.9 cm
  • Display Resolution : 480 x 640
  • Storage Temperature Range : - 22 - 158 °F|- 30 - 70 °C
  • Operating Temperature : - 20 - 60 °C|- 4 - 140 °F
  • Tumble Specifications : 2000 1.0 m tumbles
  • Drop Specifications : 2.4 m (8 ft) to concrete, 1.8 m (6 ft) to concrete across operating temperature range
  • Brand : Honeywell
Data Sheet
Name
Description
File Size
Date
Size
CN75-CN75e Handheld Computer Data Sheet
application/pdf 229.57 KB
8/19/2021
229.57 KB
Manuals and Guides
Name
Description
File Size
Date
Size
Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
application/pdf 397.98 KB
10/1/2024
397.98 KB
Windows Terminal Emulator (WindowsTE) User Guide for Honeywell Computers with Microsoft Windows OS
application/pdf 5.09 MB
7/14/2021
5.09 MB
DX4 Quad Dock Quick Start Guide (930-250-005 REV A)
application/pdf 1.69 MB
7/14/2021
1.69 MB
User Guide: Launcher for Android (934-087-006 Rev C)
application/pdf 242.36 KB
10/1/2024
242.36 KB
DX1 Desktop Dock Quick Start Guide (930-251-005 REV A)
application/pdf 1.56 MB
7/14/2021
1.56 MB
DX2 Dual Dock Quick Start Guide (930-249-005 REV A)
application/pdf 1.55 MB
7/14/2021
1.55 MB
User Guide: Enterprise Provisioner and Staging Hub Server Network Security (EPSH-W-EN-SG Rev B)
application/pdf 656.38 KB
10/1/2024
656.38 KB
75 Series User Guide: Windows Embedded Handheld 6.5 OS - English (Cx75-W65-EN-UG Rev A)
application/pdf 7.38 MB
7/14/2021
7.38 MB
User Guide: Enterprise Browser for Android (935-098-007 Rev C)
application/pdf 626.07 KB
10/1/2024
626.07 KB
75 Series User Guide: Android 6 OS - English (Cx75-A6-EN-UG Rev A)
application/pdf 7.06 MB
7/14/2021
7.06 MB
CN75 and CN75e Non-Incendive Models Quick Start Guide: Windows Embedded Handheld 6.5 OS - English (CN75NI-W65-EN-QS-0 Rev A)
application/pdf 1.34 MB
7/14/2021
1.34 MB
User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
application/pdf 2.18 MB
10/23/2024
2.18 MB
Reliable Access Client User Guide (P/N RAC-EN-UG-01)
application/zip 582.69 KB
7/14/2021
582.69 KB
CN75 and CN75e Non-Incendive Models Quick Start Guide: Android 6 OS - English (CN75NI-A6-EN-QS-01 Rev A)
application/pdf 1.67 MB
7/14/2021
1.67 MB
CN75 and CN75e Quick Start Guide: Android 6 OS - English (CN75-A6-EN-QS Rev A)
application/pdf 1.38 MB
7/14/2021
1.38 MB
DX1, DX2, DX4 Computer and Battery Cup Installation Instructions (931-072-003 REV A)
application/pdf 879.29 KB
7/14/2021
879.29 KB
CN75 and CN75e Quick Start Guide: Windows Embedded Handheld 6.5 OS - English (CN75-W65-EN-QS Rev A)
application/pdf 1.06 MB
7/14/2021
1.06 MB
Regulatory Information
Name
Description
File Size
Date
Size
Model 1000AB02 Battery Information (943-256-006 Rev A)
application/pdf 474.19 KB
7/14/2021
474.19 KB
CN75 and CN75e Non-Incendive Mobile Computer Regulatory Sheet (CN75NI-ML-RS-01 Rev A)
application/pdf 2.5 MB
7/14/2021
2.5 MB
Battery Pack Information: Model 1001AB01 (943-257-007 Rev B)
application/pdf 471.09 KB
4/7/2022
471.09 KB
Regulatory Sheet: CN75 Mobile Computer (CN75-ML-RS-02 Rev A)
application/pdf 1.74 MB
2/9/2022
1.74 MB
Name
Description
File Size
Date
Size
Security Guide: Honeywell Mobile Computers with Android Operating Systems (NS-A-MC-EN-SG-01 Rev A)
application/pdf 397.98 KB
10/1/2024
397.98 KB
Windows Terminal Emulator (WindowsTE) User Guide for Honeywell Computers with Microsoft Windows OS
application/pdf 5.09 MB
7/14/2021
5.09 MB
DX4 Quad Dock Quick Start Guide (930-250-005 REV A)
application/pdf 1.69 MB
7/14/2021
1.69 MB
User Guide: Launcher for Android (934-087-006 Rev C)
application/pdf 242.36 KB
10/1/2024
242.36 KB
Model 1000AB02 Battery Information (943-256-006 Rev A)
application/pdf 474.19 KB
7/14/2021
474.19 KB
DX1 Desktop Dock Quick Start Guide (930-251-005 REV A)
application/pdf 1.56 MB
7/14/2021
1.56 MB
DX2 Dual Dock Quick Start Guide (930-249-005 REV A)
application/pdf 1.55 MB
7/14/2021
1.55 MB
User Guide: Enterprise Provisioner and Staging Hub Server Network Security (EPSH-W-EN-SG Rev B)
application/pdf 656.38 KB
10/1/2024
656.38 KB
75 Series User Guide: Windows Embedded Handheld 6.5 OS - English (Cx75-W65-EN-UG Rev A)
application/pdf 7.38 MB
7/14/2021
7.38 MB
CN75 and CN75e Non-Incendive Mobile Computer Regulatory Sheet (CN75NI-ML-RS-01 Rev A)
application/pdf 2.5 MB
7/14/2021
2.5 MB
User Guide: Enterprise Browser for Android (935-098-007 Rev C)
application/pdf 626.07 KB
10/1/2024
626.07 KB
75 Series User Guide: Android 6 OS - English (Cx75-A6-EN-UG Rev A)
application/pdf 7.06 MB
7/14/2021
7.06 MB
CN75 and CN75e Non-Incendive Models Quick Start Guide: Windows Embedded Handheld 6.5 OS - English (CN75NI-W65-EN-QS-0 Rev A)
application/pdf 1.34 MB
7/14/2021
1.34 MB
User Guide: Basic Terminal Emulation for Honeywell Computers with Android (BTE-A-EN-UG-01 Rev D)
application/pdf 2.18 MB
10/23/2024
2.18 MB
Battery Pack Information: Model 1001AB01 (943-257-007 Rev B)
application/pdf 471.09 KB
4/7/2022
471.09 KB
Reliable Access Client User Guide (P/N RAC-EN-UG-01)
application/zip 582.69 KB
7/14/2021
582.69 KB
CN75 and CN75e Non-Incendive Models Quick Start Guide: Android 6 OS - English (CN75NI-A6-EN-QS-01 Rev A)
application/pdf 1.67 MB
7/14/2021
1.67 MB
CN75 and CN75e Quick Start Guide: Android 6 OS - English (CN75-A6-EN-QS Rev A)
application/pdf 1.38 MB
7/14/2021
1.38 MB
Regulatory Sheet: CN75 Mobile Computer (CN75-ML-RS-02 Rev A)
application/pdf 1.74 MB
2/9/2022
1.74 MB
DX1, DX2, DX4 Computer and Battery Cup Installation Instructions (931-072-003 REV A)
application/pdf 879.29 KB
7/14/2021
879.29 KB
CN75-CN75e Handheld Computer Data Sheet
application/pdf 229.57 KB
8/19/2021
229.57 KB
CN75 and CN75e Quick Start Guide: Windows Embedded Handheld 6.5 OS - English (CN75-W65-EN-QS Rev A)
application/pdf 1.06 MB
7/14/2021
1.06 MB
Name
Date
Size
Showing 1 to 10 of 14 parts
Product Number
Part Number
Description
Leaf Category
Thumbnail
203-931-001
Kit, Handstrap, CN70e75e (5pk) (Contains five (5) replacement handstraps for CN70e)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
203-931-001
Kit, Handstrap, CN70e75e (5pk) (Contains five (5) replacement handstraps for CN70e)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
203-932-002
Kit,Tethered Stylus, Blue,CN7070e7575e(5pk)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
203-932-002
Kit,Tethered Stylus, Blue,CN7070e7575e(5pk)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
454-087-001
LICENSE, ANDROID6 CX75, CONVERSION
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
454-087-001
LICENSE, ANDROID6 CX75, CONVERSION
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
805-638-001
Vehicle Dock Mounting Kit, one pivot and two mounting bases with 1.5´ ball. Requires customer-supplied hardware to secure mount to vehicle
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
805-638-001
Vehicle Dock Mounting Kit, one pivot and two mounting bases with 1.5´ ball. Requires customer-supplied hardware to secure mount to vehicle
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
850-566-001
Snap-on Adapter, RS232, 7075 Series (Provides DB9M receptacle. Uses optional 851-094-011 AC Power Supply andor 852-071-001 Vehicle Power Adapter. Not compatible with SR61TXR scanner.)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-mobile-computers-snap-on-adapter
850-566-001
Snap-on Adapter, RS232, 7075 Series (Provides DB9M receptacle. Uses optional 851-094-011 AC Power Supply andor 852-071-001 Vehicle Power Adapter. Not compatible with SR61TXR scanner.)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-mobile-computers-snap-on-adapter
850-567-001
Snap-on Adapter, USB, 7075 Series (Provides USB Host on D15 receptacle)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-mobile-computers-snap-on-adapter
850-567-001
Snap-on Adapter, USB, 7075 Series (Provides USB Host on D15 receptacle)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-mobile-computers-snap-on-adapter
850-568-001
Snap-on Adapter, DEX, 7075 Series (Terminates in DEX 14´ plug. Uses optional 851-094-011 AC Power Supply andor 852-071-001 Vehicle Power Adapter.)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-mobile-computers-snap-on-adapter
850-568-001
Snap-on Adapter, DEX, 7075 Series (Terminates in DEX 14´ plug. Uses optional 851-094-011 AC Power Supply andor 852-071-001 Vehicle Power Adapter.)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-mobile-computers-snap-on-adapter
852-057-005
Auto Adapter, V-Docks, 3S Circular, RoHS (Power Option: Connects Vehicle Dock to vehicle accessory port cigarette lighter port)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
852-057-005
Auto Adapter, V-Docks, 3S Circular, RoHS (Power Option: Connects Vehicle Dock to vehicle accessory port cigarette lighter port)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
852-071-001
Vehicle Power Adapter, 7075 Series 3-pin (3-pin connector for use with 7075 Series Snap-on Adapters)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
852-071-001
Vehicle Power Adapter, 7075 Series 3-pin (3-pin connector for use with 7075 Series Snap-on Adapters)
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
856-065-004
MICRO-SD CARD, 1GB, AF1GUDI, ROHS
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
856-065-004
MICRO-SD CARD, 1GB, AF1GUDI, ROHS
https://s7d1.scene7.com/is/image/Honeywell65/sps-ppr-cn75e-mobile-computer
Feedback
