Handheld Computers

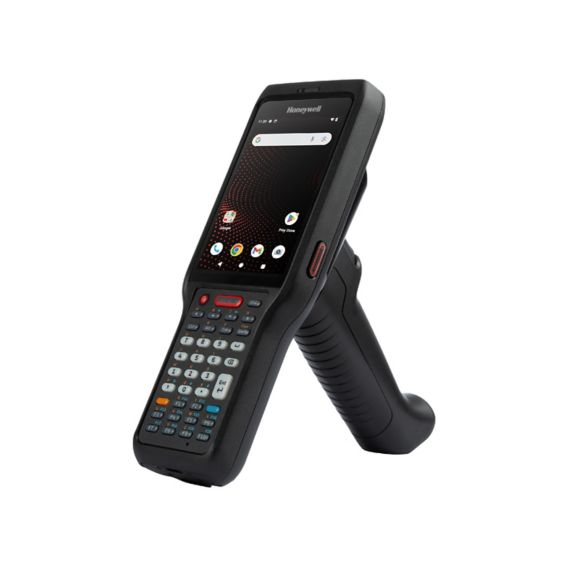

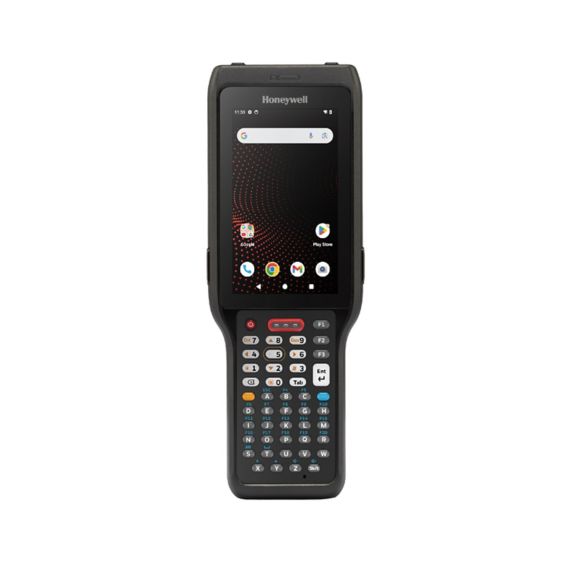

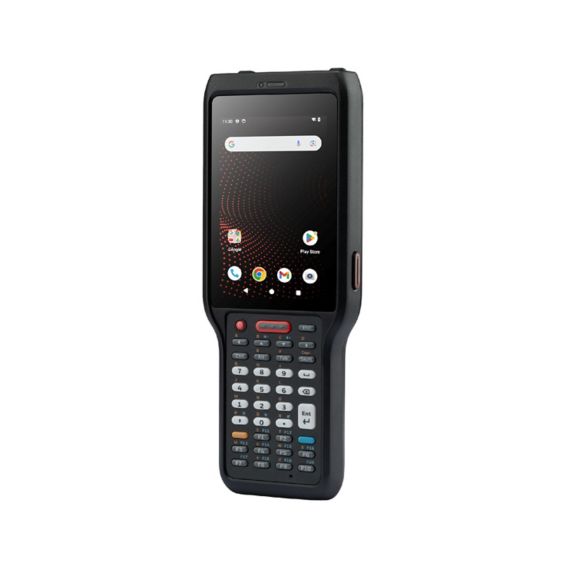

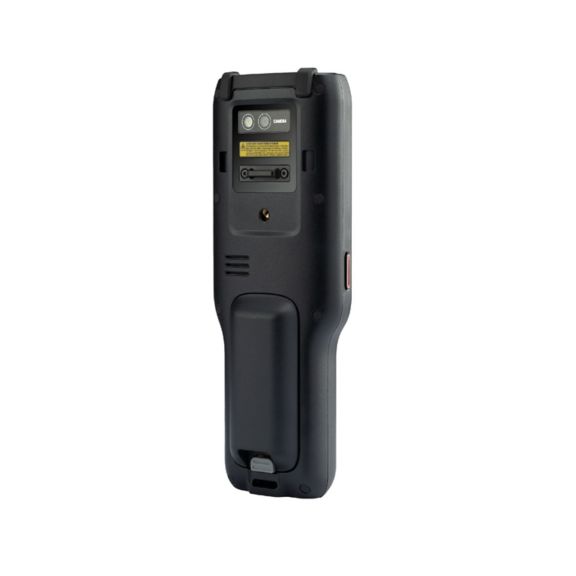

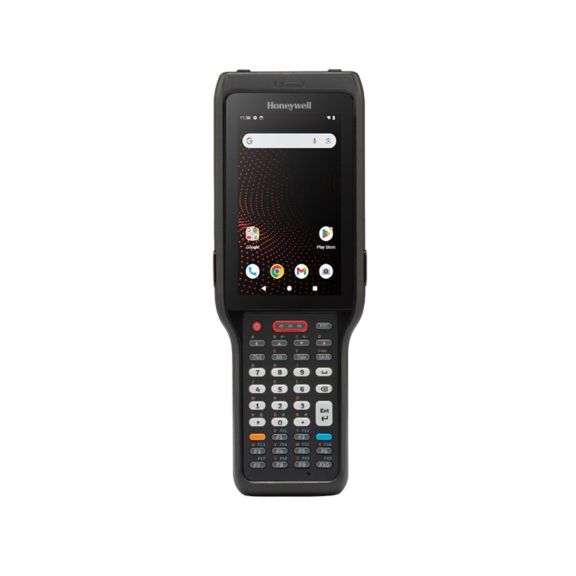

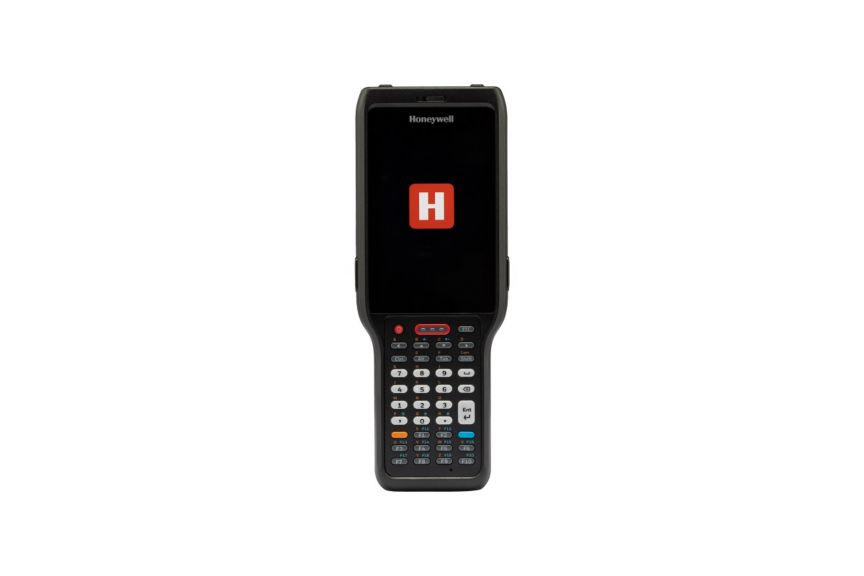

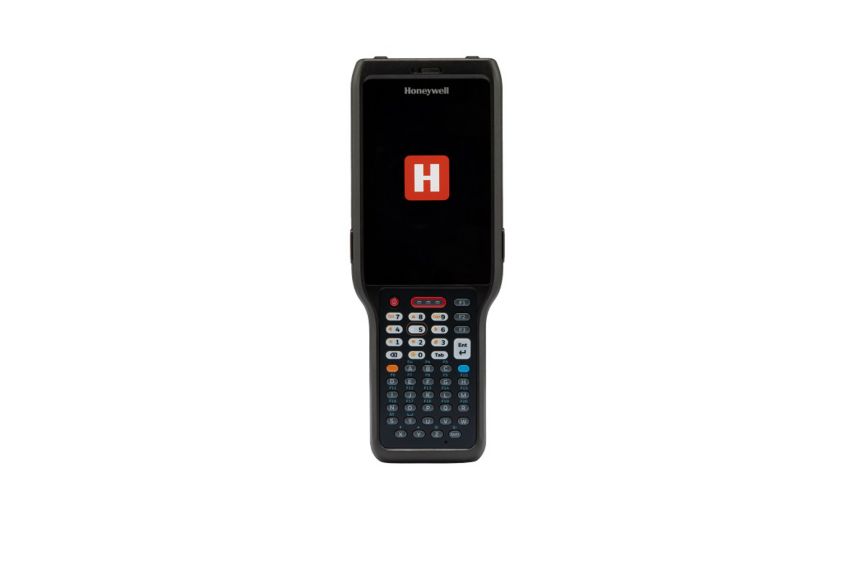

CK62 Rugged Mobile Computer
The CK62 is a lightweight rugged mobile computer designed for warehouse and distribution center. The CK62 provides reliable and fast data access with Wi-Fi 6E capabilities which promotes productivity for different workflows and applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The Honeywell CK62 is a Wi-Fi 6E enabled warehouse solution. Its rugged design is suitable for warehouse environments. Its’ improved ergonomics design has both alpha-numeric and function-numeric keypads for versatile data input. It is featured with Qualcomm 4490 octa-core processor for best performance and product longevity. In the meantime, it supports Wi-Fi 6E for fast and reliable connectivity. Mobility Edge – Powerful & Secure Platform The CK62 leverages the Mobility Edge™ platform which offers durability, stability, security and long term life cycle availability. It supports Android versions 14 through 18*, thereby providing a secure and open operating system to integrate with a wide range of applications. When coupled with Honeywell’s Operational Intelligence asset management software, it provides users with critical analytics that allows ease of device management, optimal productivity, all while reducing total cost of ownership (TCO).Reliable Under Harsh ConditionsDesigned to endure the challenges of warehouse operations, the CK62 boasts an IP65 rating for dust and water resistance. It can withstand drops from 1.8 meters and 3000 tumbles, ensuring durability under harsh usage conditions.Lightweight and User-Friendly DesignThe CK62 was designed with portability and user comfort in mind. Weighing just 440 grams and measuring 27mm at its thinnest point, it is easy to operate single-handedly, it fits into an average pocket, and can be comfortably carried throughout the day. The keyboard layout has been carefully designed to offer excellent tactile comfort and usability. With 47 keys for alpha-numeric input and 38 function keys for function-numeric input, it meets diverse application needs in warehouses and distribution centers. Its ergonomic design is designed to work efficiency and minimizes user fatigue, all while ensuring smooth operations even under fast-paced & demanding environments.Powerful Hardware ConfigurationThe CK62 combines robust hardware features, including a 4-inch display protected by Gorilla Glass 5 for durability, a 7000mAh battery that provides extended work and standby time, and memory options of 4GB/64GB or 8GB/128GB to suit various user requirements. Additionally, it features a 13-megapixel camera capable of clear and high-quality document scanning and image capturing.Embedded with FlexRange™ XLR Scan Engine Featuring the latest FlexRange™ XLR scan engine, the CK62 delivers powerful scanning performance tailored for industrial warehouse operations and demanding scanning tasks. FlexRange™ XLR supports a wide range of scanning applications with the capability of both high speed and long range.Enterprise-Grade SoftwareThe CK62 is equipped with Operational Intelligence management software which provides in-depth operational insights and enables workflow automation to proactively prevent and manage issues in real-time. This capability significantly reduces IT support costs and enhances operational efficiency.Regarding communication challenges, Smart Talk Unified Communications offers enterprise-grade voice calling, text messaging, and media sharing functions into a single device. It streamlines communications across work teams, enhancing collaboration and productivity. Comprehensive AccessoriesThe CK62 comes with a comprehensive range of accessories that enhance functionality and versatility for various operational scenarios. These accessories include:• Scan Handle: Ergonomic & convenient for diverse scanning tasks.• Home Base: Simplifies charging with space for one terminal and battery.• Quad Bay Charging Base: Enables simultaneous charging of multiple devices.• Quad Bay Battery Charger: Keeps a fleet of batteries ready for use• 16 Bay Battery Charger: Keeps a fleet of batteries ready for use.• Universal Dock Cup: Compatible with Honeywell's universal dock for power charging.• Universal Dock**: Designed exclusively for power charging.• Standard Battery Pack: Provides reliable power for extended use.• Hand Strap: Enhances device grip and handling.• Screen Film: Protects the display from scratches and damages.Whether for charging solutions, protective measures, or ergonomic enhancements, the CK62's accessory suite ensures that it can be customized to meet different tasks requirements effectively. These accessories make CK62 a powerful and versatile solution for diverse warehouse and distribution center needs. * 4GB: Android 16 planned but needs confirmation from Qualcomm & Google.* 8GB: Android 18 planned but needs confirmation from Qualcomm & Google.** Available in Q1, 2025
Specifications
Features
- Camera
- Yes
- Application
- Manufacturing
- Warehouse/ DC
- Features
- Lightweight and rugged
- Wi-Fi 6E
Dimensions
- Overall Dimensions
- 206 mm L x 78 mm W x 27mm H (8.11 in x 3.07 in x 1.06 in)
Scanning Specifications
- Decode Capability
- Honeywell Flex RangeTM XLR
- Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
Network
- Bluetooth Specifications
- Bluetooth 5.2/2.1 + EDR Class 1
- Computer Wireless Communication
- WLAN; Bluetooth; GPS
- WLAN Specifications
- Additional WLAN Features: 802.11 d/e/h/i/k/r/v/w/u, 2X2 MU-MIMO
- WLAN (Wi-Fi Alliance certified): IEEE 802.11 a/b/g/n/ac/ax (2.4GHz, 5GHz, 6GHz3)
- WLAN Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)
- WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compliant
Software & Firmware
- Operating System
- Android
Memory & Data
- Memory
- 4GB RAM/ 64GB Flash
- 8GB RAM/ 128GB Flash
Hardware
- Processor
- Qualcomm 4490 octa-core: 2.4 GHz
- Scan Engine Model
- Honeywell Flex RangeTM XLR, Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
- Display Size
- 4 inch
- Display Resolution
- 480 x 800
Electrical
- Battery Types
- Li-Ion, 7000mAh, 3.6V
- Battery Type
- Standard, removable, hot-swappable
- Battery Capacity
- 7000mAh
Environmental
- Operating Temperature
- -20°C to +50°C (-4°F to +122°F)
- Operating Humidity
- 5% to 95% (non-condensing)
- Storage Temperature Range
- -30°C to +70°C (-22°F to 158°F)
Standards & Approvals
- Tumble Specifications
- 3000 1.0m (3.3 ft) per IEC 60068-2-32 specification
- Protection Ratings
- IP65
- Drop Specifications
- Multiple 1.8 m (6 ft) drop to concrete per MIL-STD-810H crossing temperature (-10°C to +50°C/ 14°F to +122°F)
Service Terms
- Warranty Duration
- One-year factory warranty
Others
- Durability
- Vibration: MIL-STD-810H, Method 514.6, Procedure I
- Camera Position
- Rear
- Platform
- Mobility Edge™
- Network
- WLAN
Features
- Camera
- Yes
- Application
- Manufacturing
- Warehouse/ DC
- Features
- Lightweight and rugged
- Wi-Fi 6E
Dimensions
- Overall Dimensions
- 206 mm L x 78 mm W x 27mm H (8.11 in x 3.07 in x 1.06 in)
Scanning Specifications
- Decode Capability
- Honeywell Flex RangeTM XLR
- Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
Network
- Bluetooth Specifications
- Bluetooth 5.2/2.1 + EDR Class 1
- Computer Wireless Communication
- WLAN; Bluetooth; GPS
- WLAN Specifications
- Additional WLAN Features: 802.11 d/e/h/i/k/r/v/w/u, 2X2 MU-MIMO
- WLAN (Wi-Fi Alliance certified): IEEE 802.11 a/b/g/n/ac/ax (2.4GHz, 5GHz, 6GHz3)
- WLAN Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)
- WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compliant
Software & Firmware
- Operating System
- Android
Memory & Data
- Memory
- 4GB RAM/ 64GB Flash
- 8GB RAM/ 128GB Flash
Hardware
- Processor
- Qualcomm 4490 octa-core: 2.4 GHz
- Scan Engine Model
- Honeywell Flex RangeTM XLR, Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
- Display Size
- 4 inch
- Display Resolution
- 480 x 800
Electrical
- Battery Types
- Li-Ion, 7000mAh, 3.6V
- Battery Type
- Standard, removable, hot-swappable
- Battery Capacity
- 7000mAh
Environmental
- Operating Temperature
- -20°C to +50°C (-4°F to +122°F)
- Operating Humidity
- 5% to 95% (non-condensing)
- Storage Temperature Range
- -30°C to +70°C (-22°F to 158°F)
Standards & Approvals
- Tumble Specifications
- 3000 1.0m (3.3 ft) per IEC 60068-2-32 specification
- Protection Ratings
- IP65
- Drop Specifications
- Multiple 1.8 m (6 ft) drop to concrete per MIL-STD-810H crossing temperature (-10°C to +50°C/ 14°F to +122°F)
Service Terms
- Warranty Duration
- One-year factory warranty
Others
- Durability
- Vibration: MIL-STD-810H, Method 514.6, Procedure I
- Camera Position
- Rear
- Platform
- Mobility Edge™
- Network
- WLAN
- Camera : Yes
- Application : Manufacturing|Warehouse/ DC
- Features : Lightweight and rugged|Wi-Fi 6E
- Overall Dimensions : 206 mm L x 78 mm W x 27mm H (8.11 in x 3.07 in x 1.06 in)
- Decode Capability : Honeywell Flex RangeTM XLR|Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
- Bluetooth Specifications : Bluetooth 5.2/2.1 + EDR Class 1
- Computer Wireless Communication : WLAN; Bluetooth; GPS
- WLAN Specifications : Additional WLAN Features: 802.11 d/e/h/i/k/r/v/w/u, 2X2 MU-MIMO|WLAN (Wi-Fi Alliance certified): IEEE 802.11 a/b/g/n/ac/ax (2.4GHz, 5GHz, 6GHz3)|WLAN Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)|WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compliant
- Operating System : Android
- Memory : 4GB RAM/ 64GB Flash|8GB RAM/ 128GB Flash
- Processor : Qualcomm 4490 octa-core: 2.4 GHz
- Scan Engine Model : Honeywell Flex RangeTM XLR, Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
- Display Size : 4 inch
- Display Resolution : 480 x 800
- Battery Types : Li-Ion, 7000mAh, 3.6V
- Battery Type : Standard, removable, hot-swappable
- Battery Capacity : 7000mAh
- Operating Temperature : -20°C to +50°C (-4°F to +122°F)
- Operating Humidity : 5% to 95% (non-condensing)
- Storage Temperature Range : -30°C to +70°C (-22°F to 158°F)
- Tumble Specifications : 3000 1.0m (3.3 ft) per IEC 60068-2-32 specification
- Protection Ratings : IP65
- Drop Specifications : Multiple 1.8 m (6 ft) drop to concrete per MIL-STD-810H crossing temperature (-10°C to +50°C/ 14°F to +122°F)
- Warranty Duration : One-year factory warranty
- Durability : Vibration: MIL-STD-810H, Method 514.6, Procedure I
- Camera Position : Rear
- Platform : Mobility Edge™
- Network : WLAN
