Wearable
8675i Wearable Scanner

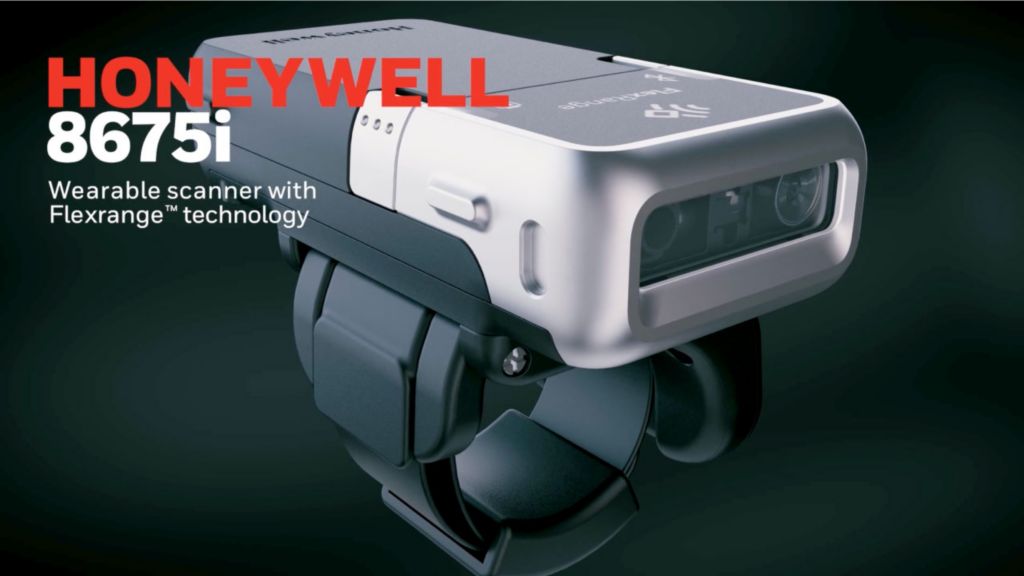

The 8675i offers always at-hand wearable scanning to improve workflow productivity. Premium scanning performance including FlexRange™ option enables wearable efficiency. Small, lightweight and ergonomic, the 8675i will help your workers perform.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

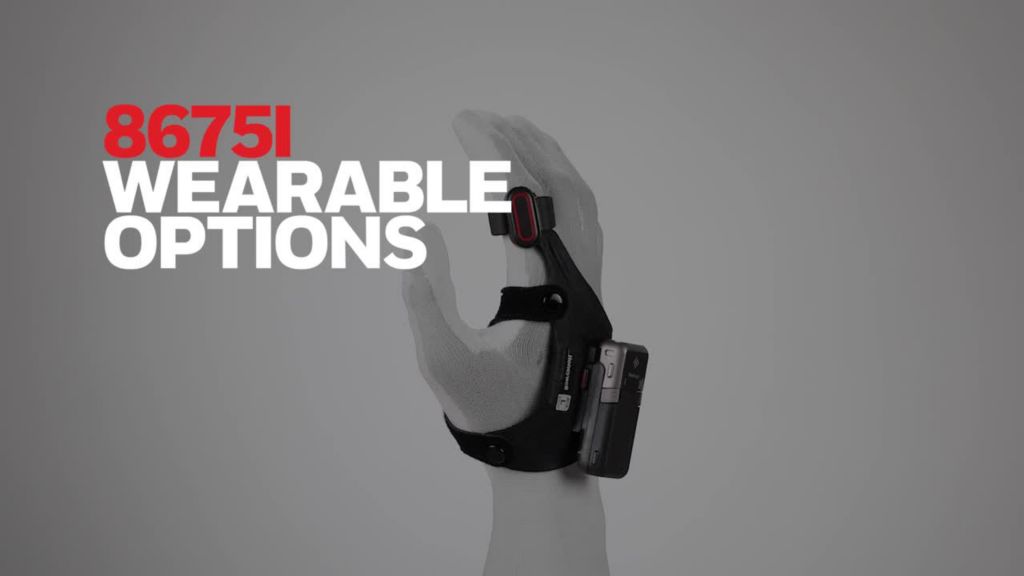

The 8675i offers always-at-hand wearable scanning to improve workflow productivity. Premium scanning performance ensures quick work of even damaged or low quality barcodes. FlexRange(TM) technology provides scan distance to enable wearable efficiency in workflows that previously only solvable with bulkier, heavier handheld devices. Smooth, fast reading from near to far ensures that the full range (100% UPC from near contact to 5’, 100 mil Code 39 to 10M/33’) has fast, intuitive scanning response.A standard-range only option offers lower acquisition cost for arms-length workflows. In all aspects of design, the 8675i has been optimized for ergonomics. Height off of the finger has been minimized to prevent interference in the work environment. All user-contact surfaces have been tailored for comfort, easy adjustment, and simple use.The triggered ring is simple to swap from right to left hand configuration, and the finger strap buckle is both easy to operate and low-profile to prevent interference between fingers. The 8675i can be converted from ring to glove instantly and with no tools; the strap glove is simple, minimal, and easily adjustable to cover the range of users. With a replaceable palm strap for the primary wear component, the 8675i glove design enables extended use to reduce operating costs. Made of non-absorbent materials, the 8675i triggered ring and strap are simple to clean with approved disinfectants for easily-managed hygiene of shared components.The 8675i has been designed to satisfy the needs of demanding workflows. It is multi-shift ready, with an easy to replace battery to keep the scanner up and running that also enables the battery to be simply replaced once it degrades through normal use, extending the service life of the 8675i.User-facing LEDs communicate Bluetooth connection, battery state of charge and even when battery health requires a replacement. A 2,000 x ½ meter tumble specification ensures that 8675i will endure the frequent knocks a wearable device in a fast-paced environment will inevitably experience. IP65 sealing and broad operating temperatures (-20 to 50C, -4 to 122F) ensure unconditioned warehouses and frozen environments are no problem for the 8675i.A new outdoor aimer provides accurate barcode targeting even in full daylight when laser aimers cannot be seen. With premium ergonomics, configurability, and performance, the 8675i is ready to help users improve their productivity.
Specifications
Features
- Features
- Triggered ring or glove form factors
Dimensions
- Overall Dimensions
- 65.2mm x 30.3mm x 15.2mm (2.6 in x 1.2 in x 0.6 in)
Network
- Bluetooth Specifications
- 5.1
Environmental
- Storage Temperature Range
- -20C to 60C (-4F to 140F)
- Operating Humidity
- 0 to 95% relative humidity (non-condensing)
Standards & Approvals
- Drop Specifications
- 1.8m Mil-Std-810; 50x1.5m (5') drop to concrete across operating temperatures
- Protection Ratings
- IP65
Others
- For Use With
- 8675i chargers and accessories
- Warranty Duration
- Two years (battery one year)
- Charging
- Contact Charging
- Scan Distance
- Mid Range (0-5m)
- Standard Range (0-1m)
- Connectivity
- Bluetooth
- Battery Type
- Li-ion Battery
- IP Rating
- IP65
Features
- Features
- Triggered ring or glove form factors
Dimensions
- Overall Dimensions
- 65.2mm x 30.3mm x 15.2mm (2.6 in x 1.2 in x 0.6 in)
Network
- Bluetooth Specifications
- 5.1
Environmental
- Storage Temperature Range
- -20C to 60C (-4F to 140F)
- Operating Humidity
- 0 to 95% relative humidity (non-condensing)
Standards & Approvals
- Drop Specifications
- 1.8m Mil-Std-810; 50x1.5m (5') drop to concrete across operating temperatures
- Protection Ratings
- IP65
Others
- For Use With
- 8675i chargers and accessories
- Warranty Duration
- Two years (battery one year)
- Charging
- Contact Charging
- Scan Distance
- Mid Range (0-5m)
- Standard Range (0-1m)
- Connectivity
- Bluetooth
- Battery Type
- Li-ion Battery
- IP Rating
- IP65
- For Use With : 8675i chargers and accessories
- Features : Triggered ring or glove form factors
- Overall Dimensions : 65.2mm x 30.3mm x 15.2mm (2.6 in x 1.2 in x 0.6 in)
- Bluetooth Specifications : 5.1
- Storage Temperature Range : -20C to 60C (-4F to 140F)
- Operating Humidity : 0 to 95% relative humidity (non-condensing)
- Drop Specifications : 1.8m Mil-Std-810; 50x1.5m (5') drop to concrete across operating temperatures
- Protection Ratings : IP65
- Warranty Duration : Two years (battery one year)
- Charging : Contact Charging
- Scan Distance : Mid Range (0-5m)|Standard Range (0-1m)
- Connectivity : Bluetooth
- Battery Type : Li-ion Battery
- IP Rating : IP65
