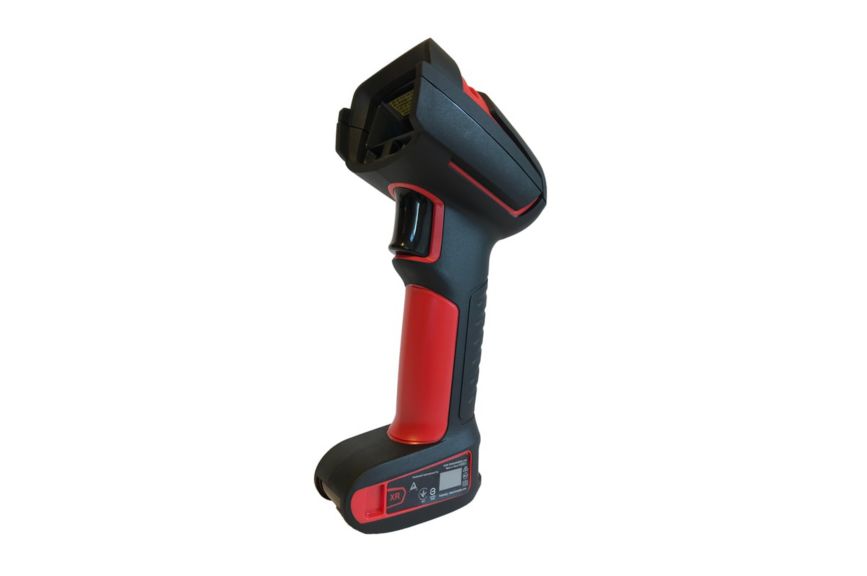

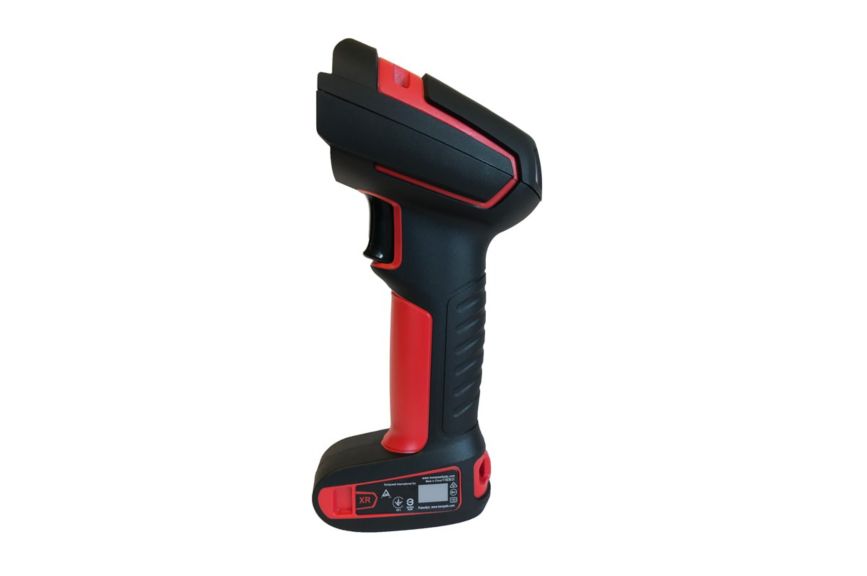

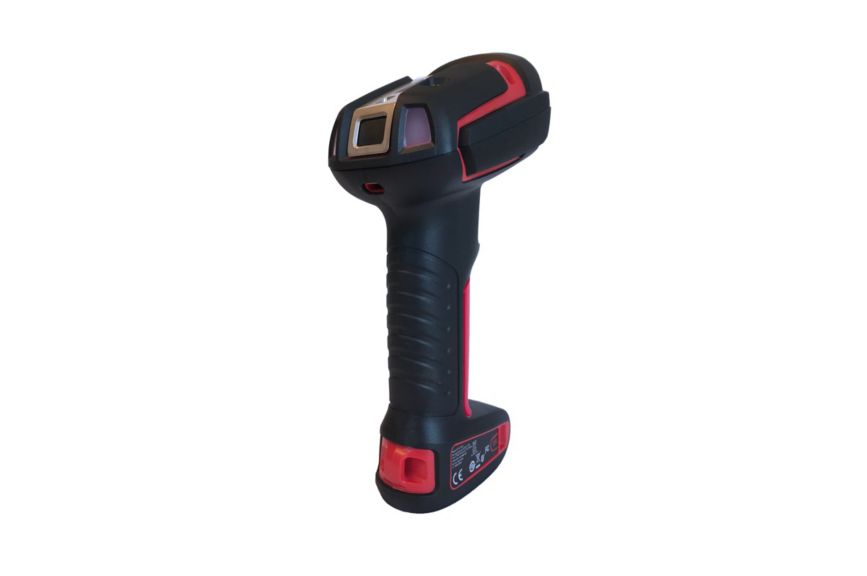

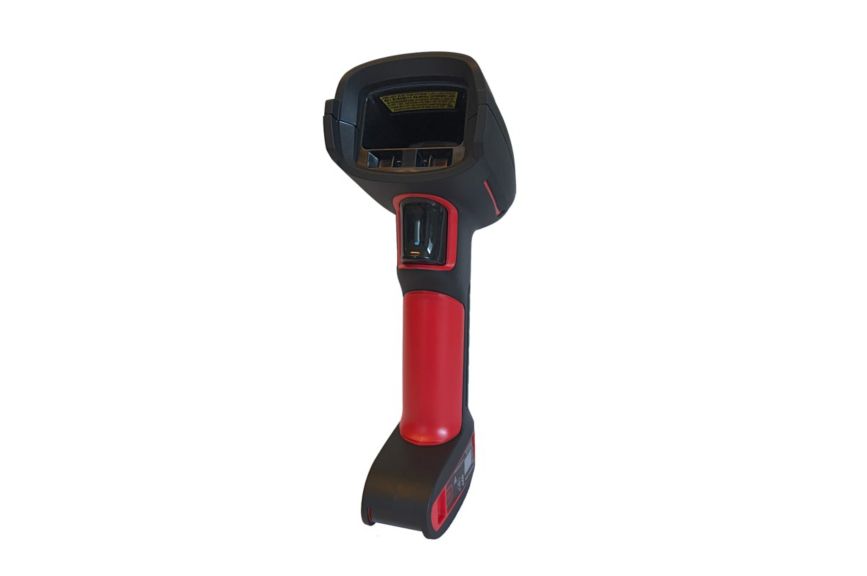

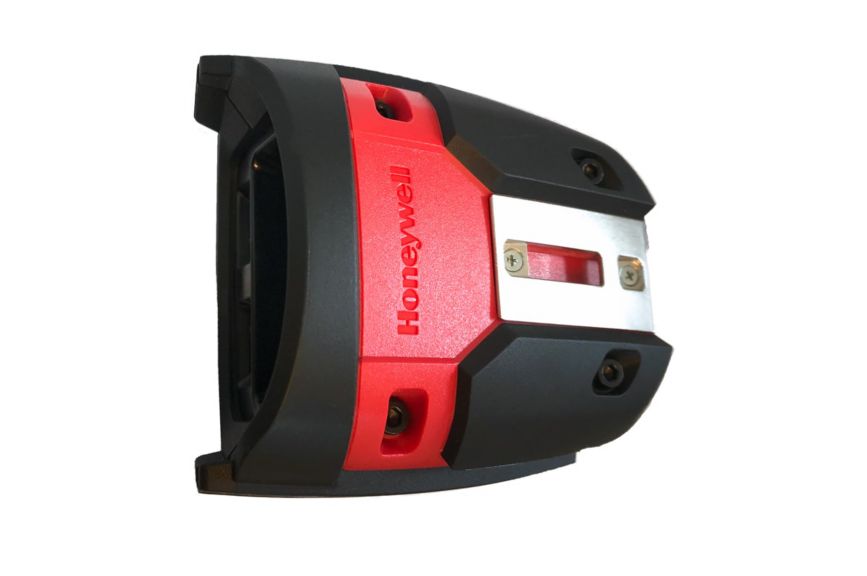

Granit 1990iSR Ultra-Rugged Standard Range Scanner
Granit 1990iSR Ultra-Rugged Standard Range Scanner
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Ensure maximum productivity and uptime with Granit™ 1990iSR standard range ultra-rugged barcode scanner. Outstanding durability ensures low TCO. Premium scanning performance ensures even damaged or low quality codes scan quickly. Granit XP expands capabilities and redefines ultra-rugged scanning.Granit XP, built on Honeywell’s next-generation imaging platform, ensures that otherwise challenging labels do not create a bottleneck in your process. The Granit™ XP 1990iSR model offers high-durability, extreme performance scanning for standard range operations. Created for applications where high speed scanning is needed to maximize productivity, and where durability is non-negotiable for low total cost of ownership, the Granit™ XP 1990iSR scanner offers the optimal solution.Find out more about what you can accomplish with Granit XP
- Built to survive harsh treatment including 3 m (10 ft) drops, 7,000 1 m (3.3 ft) tumbles, operating temperatures from -30°C to 50°C (-22°F to 122°F) and IP67 sealing, Granit XP reduces service costs and increases device uptime.
- Granit provides extreme performance scanning, even on damaged and low-quality barcodes. High-quality barcodes scan and transmit faster than ever.
- The SR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes. For longer distances, refer to other models in the Granit family.
- The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
Specifications
Dimensions
- Overall Dimensions
- 192 mm x 76 mm x 100 mm
- 7.6 in x 3.0 in x 3.9 in
Scanning Specifications
- Skew
- 65°
- Decode Capability
- 1D/2D
- Motion Tolerance
- 177 in/s
- 4500 mm/s
- Scanning Range
- Standard range (SR)
- Print Contrast
- 20% minimum reflectance difference
- Scan Pattern
- Area Imager (1280 x 800 pixel array)
- Brightness
- 0 - 100,000 lux
- 9,290 foot-candles
Network
- Bluetooth
- No
Hardware
- Host System Interface
- Keyboard Wedge
- RS-232 TTL
- USB
Electrical
- Standby Power
- 0.5 W
Environmental
- Storage Temperature Range
- -40°C - 70°C
- -40°F - 158°F
- Operating Humidity
- Up to 95% relative humidity, non-condensing
Standards & Approvals
- Tumble Specifications
- 7,000 1 m (3.3 ft) tumbles
- Drop Specifications
- 2 m (6.5 ft): 50 drops from -30°C toNEWLINE50°C (-22°F to 122°F), uncontrolled RH
- 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH
- 3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH
Others
- Operating Power
- 2.35 W (470 mA @ 5 VDC)
- Input voltage
- 4.0 VDC to 5.5 VDC
- Operating temperature
- -22°F - 122°F
- -30°C - 50°C
- Warranty Duration
- Three-year factory warranty
- Brand
- Honeywell
- Power Connector Type
- Corded
Dimensions
- Overall Dimensions
- 192 mm x 76 mm x 100 mm
- 7.6 in x 3.0 in x 3.9 in
Scanning Specifications
- Skew
- 65°
- Decode Capability
- 1D/2D
- Motion Tolerance
- 177 in/s
- 4500 mm/s
- Scanning Range
- Standard range (SR)
- Print Contrast
- 20% minimum reflectance difference
- Scan Pattern
- Area Imager (1280 x 800 pixel array)
- Brightness
- 0 - 100,000 lux
- 9,290 foot-candles
Network
- Bluetooth
- No
Hardware
- Host System Interface
- Keyboard Wedge
- RS-232 TTL
- USB
Electrical
- Standby Power
- 0.5 W
Environmental
- Storage Temperature Range
- -40°C - 70°C
- -40°F - 158°F
- Operating Humidity
- Up to 95% relative humidity, non-condensing
Standards & Approvals
- Tumble Specifications
- 7,000 1 m (3.3 ft) tumbles
- Drop Specifications
- 2 m (6.5 ft): 50 drops from -30°C toNEWLINE50°C (-22°F to 122°F), uncontrolled RH
- 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH
- 3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH
Others
- Operating Power
- 2.35 W (470 mA @ 5 VDC)
- Input voltage
- 4.0 VDC to 5.5 VDC
- Operating temperature
- -22°F - 122°F
- -30°C - 50°C
- Warranty Duration
- Three-year factory warranty
- Brand
- Honeywell
- Power Connector Type
- Corded
- Overall Dimensions : 192 mm x 76 mm x 100 mm|7.6 in x 3.0 in x 3.9 in
- Skew : 65°
- Decode Capability : 1D/2D
- Motion Tolerance : 177 in/s|4500 mm/s
- Scanning Range : Standard range (SR)
- Print Contrast : 20% minimum reflectance difference
- Scan Pattern : Area Imager (1280 x 800 pixel array)
- Brightness : 0 - 100,000 lux|9,290 foot-candles
- Bluetooth : No
- Host System Interface : Keyboard Wedge|RS-232 TTL|USB
- Operating Power : 2.35 W (470 mA @ 5 VDC)
- Standby Power : 0.5 W
- Input voltage : 4.0 VDC to 5.5 VDC
- Storage Temperature Range : -40°C - 70°C|-40°F - 158°F
- Operating temperature : -22°F - 122°F|-30°C - 50°C
- Operating Humidity : Up to 95% relative humidity, non-condensing
- Tumble Specifications : 7,000 1 m (3.3 ft) tumbles
- Drop Specifications : 2 m (6.5 ft): 50 drops from -30°C toNEWLINE50°C (-22°F to 122°F), uncontrolled RH|2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH|3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH
- Warranty Duration : Three-year factory warranty
- Brand : Honeywell
- Power Connector Type : Corded
