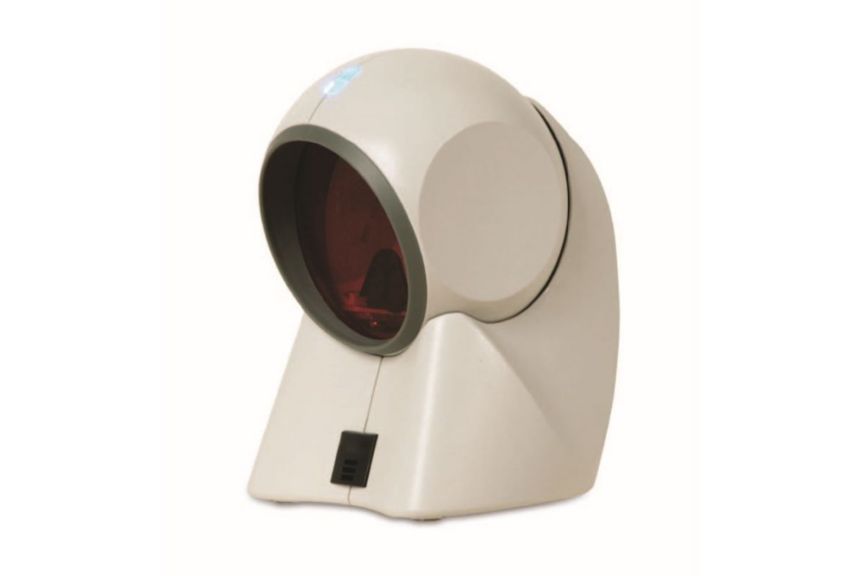

Orbit 7120 Hands-Free Scanner
Orbit 7120 Hands-Free Scanner
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Orbit™: is the all-time, best-selling hands-free omnidirectional scanner for a reason. Several reasons, actually. Let’:s start here: The Orbit 7120 scanner are innovative, elegant and affordable with an award-winning design that’:s just the right fit for convenience retail applications where counter space is at a premium.
- The Orbit scanner has an engineered “:sweet spot”: to optimize scan performance and first pass read rate.
- Retail operations can protect their POS investment with free firmware updates via MetroSet 2 software and a standard PC.
- A built-in RF EAS antenna (Orbit 7180 scanner only) increases ef ciency by simultaneously deactivating RF EAS tags and decoding barcodes.
- A 20-line scan omnidirectional pattern provides aggressive scanning as an additional benefit to hand presentation applications.
- An adjustable scan head enables users to tilt the scanner 30°: for targeted scanning of larger products.
Specifications
Features
- Features
- Adjustable Scan Head
- Aggressive Scan Performance
- Automatic Scanning Operation
- Built-In RF EAS Antenna
- Sweet Spot Scanning
Dimensions
- Overall Dimensions
- 10.5 x 10.2 x 15 cm
- 4.1 x 4 x 5.9 in
Scanning Specifications
- Skew
- 60
- Scan Pattern
- Omni-Directional
- Scanning Range
- Standard range (SR)
- Print Contrast
- 35
- Decode Capability
- 1D
- Pitch
- 60
- Maximum Brightness
- 4,842
Hardware
- Engine Type
- 1D Laser
- Host System Interface
- KBW
- RS-232
- RS485
- USB
Environmental
- Operating Humidity
- 5 - 95 %
- Storage Temperature Range
- - 40 - 140 °F
- - 40 - 60 °C
Others
- Form Factor
- Counter Top
- Standby Current
- 170 mA
- Input voltage
- 5 V DC
- Operating temperature
- 0 - 40 °C
- 32 - 104 °F
- Warranty Duration
- 3 yr
- Brand
- Honeywell
- Power Connector Type
- Corded
Features
- Features
- Adjustable Scan Head
- Aggressive Scan Performance
- Automatic Scanning Operation
- Built-In RF EAS Antenna
- Sweet Spot Scanning
Dimensions
- Overall Dimensions
- 10.5 x 10.2 x 15 cm
- 4.1 x 4 x 5.9 in
Scanning Specifications
- Skew
- 60
- Scan Pattern
- Omni-Directional
- Scanning Range
- Standard range (SR)
- Print Contrast
- 35
- Decode Capability
- 1D
- Pitch
- 60
- Maximum Brightness
- 4,842
Hardware
- Engine Type
- 1D Laser
- Host System Interface
- KBW
- RS-232
- RS485
- USB
Environmental
- Operating Humidity
- 5 - 95 %
- Storage Temperature Range
- - 40 - 140 °F
- - 40 - 60 °C
Others
- Form Factor
- Counter Top
- Standby Current
- 170 mA
- Input voltage
- 5 V DC
- Operating temperature
- 0 - 40 °C
- 32 - 104 °F
- Warranty Duration
- 3 yr
- Brand
- Honeywell
- Power Connector Type
- Corded
- Form Factor : Counter Top
- Features : Adjustable Scan Head|Aggressive Scan Performance|Automatic Scanning Operation|Built-In RF EAS Antenna|Sweet Spot Scanning
- Overall Dimensions : 10.5 x 10.2 x 15 cm|4.1 x 4 x 5.9 in
- Skew : 60
- Scan Pattern : Omni-Directional
- Scanning Range : Standard range (SR)
- Print Contrast : 35
- Decode Capability : 1D
- Pitch : 60
- Maximum Brightness : 4,842
- Engine Type : 1D Laser
- Host System Interface : KBW|RS-232|RS485|USB
- Standby Current : 170 mA
- Input voltage : 5 V DC
- Operating Humidity : 5 - 95 %
- Storage Temperature Range : - 40 - 140 °F|- 40 - 60 °C
- Operating temperature : 0 - 40 °C|32 - 104 °F
- Warranty Duration : 3 yr
- Brand : Honeywell
- Power Connector Type : Corded
Manuals and Guides
Name
Description
File Size
Date
Size
Quick Start Guide: IS3480 Quantum E, QuantumT 3580, Fusion 3780, Orbit 7120/7180, Solaris 7820 (Omni-QS Rev A)
application/pdf 561.34 KB
11/21/2023
561.34 KB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/17/2023
1.16 MB
User Guide: 7120 Orbit (00-02282 Rev H)
application/pdf 568.27 KB
11/21/2023
568.27 KB
Regulatory Information
Name
Description
File Size
Date
Size
Regulatory Sheet for Omni-Directional Scanners: IS3480 QuantumE, QuantumT 3580, Orbit 7120/7180, Solaris 7820, MS7600 Horizon (RegSht-Omni-02 Rev A)
application/pdf 1.37 MB
2/22/2023
1.37 MB
Name
Description
File Size
Date
Size
Regulatory Sheet for Omni-Directional Scanners: IS3480 QuantumE, QuantumT 3580, Orbit 7120/7180, Solaris 7820, MS7600 Horizon (RegSht-Omni-02 Rev A)
application/pdf 1.37 MB
2/22/2023
1.37 MB
Quick Start Guide: IS3480 Quantum E, QuantumT 3580, Fusion 3780, Orbit 7120/7180, Solaris 7820 (Omni-QS Rev A)
application/pdf 561.34 KB
11/21/2023
561.34 KB
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
application/pdf 1.16 MB
11/17/2023
1.16 MB
User Guide: 7120 Orbit (00-02282 Rev H)
application/pdf 568.27 KB
11/21/2023
568.27 KB
Name
Description
File Size
Date
Size
Quick Start Guide: IS3480 Quantum E, QuantumT 3580, Fusion 3780, Orbit 7120/7180, Solaris 7820 (Omni-QS Rev A)
561.34 KB
11/21/2023
User Guide: Network and Security for Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A)
1.16 MB
11/17/2023
User Guide: 7120 Orbit (00-02282 Rev H)
568.27 KB
11/21/2023
Regulatory Sheet for Omni-Directional Scanners: IS3480 QuantumE, QuantumT 3580, Orbit 7120/7180, Solaris 7820, MS7600 Horizon (RegSht-Omni-02 Rev A)
1.37 MB
2/22/2023
