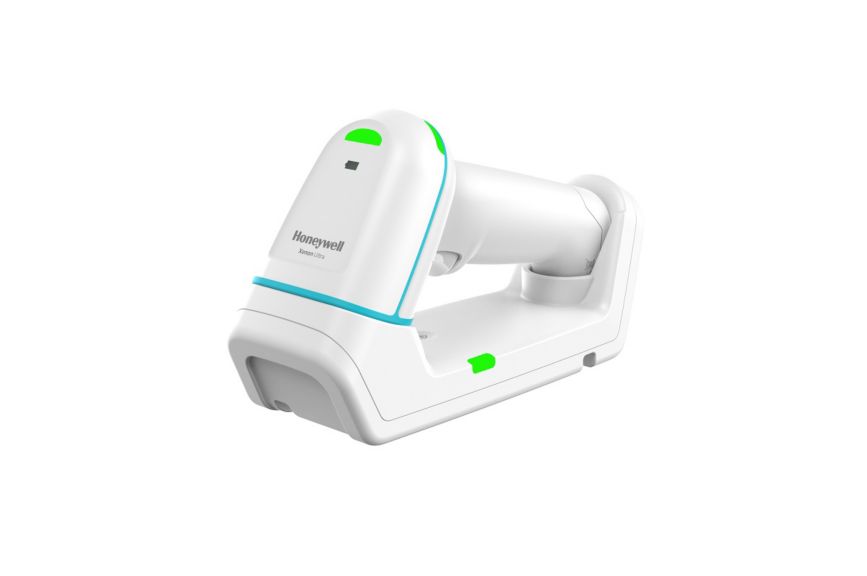

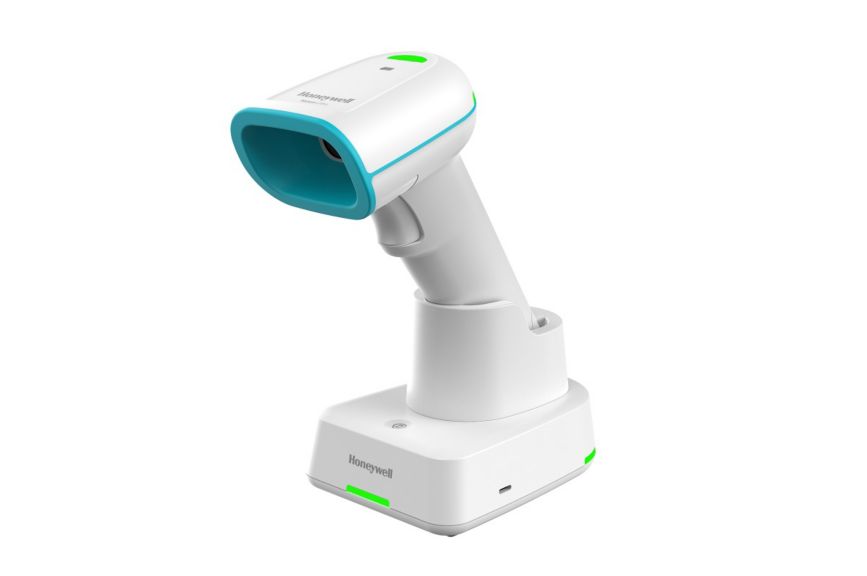

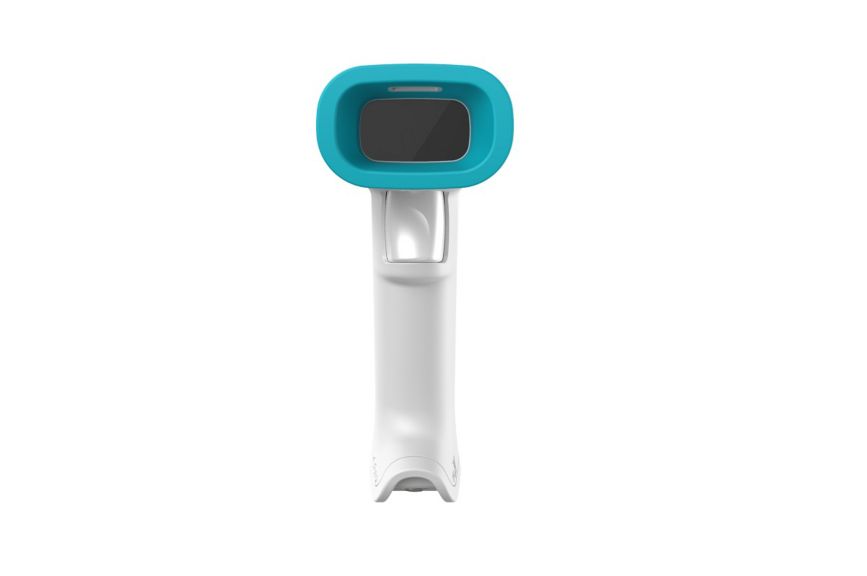

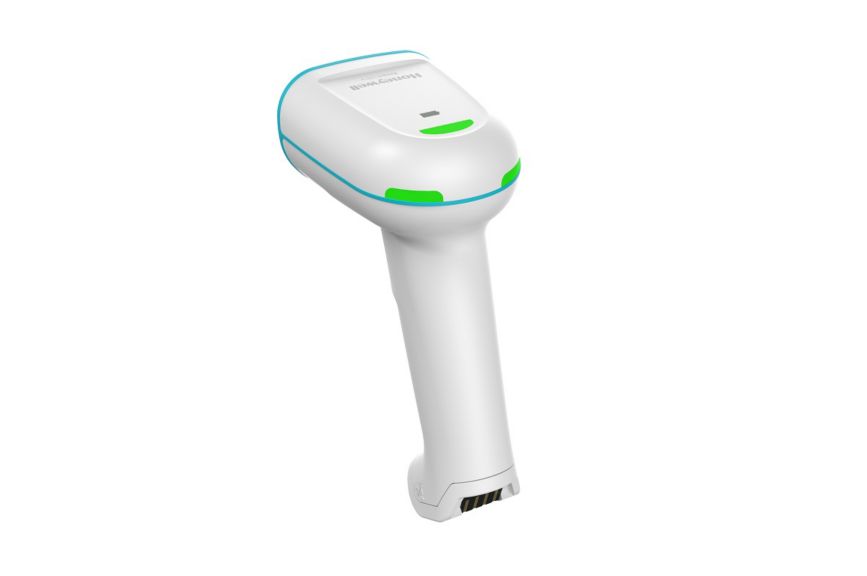

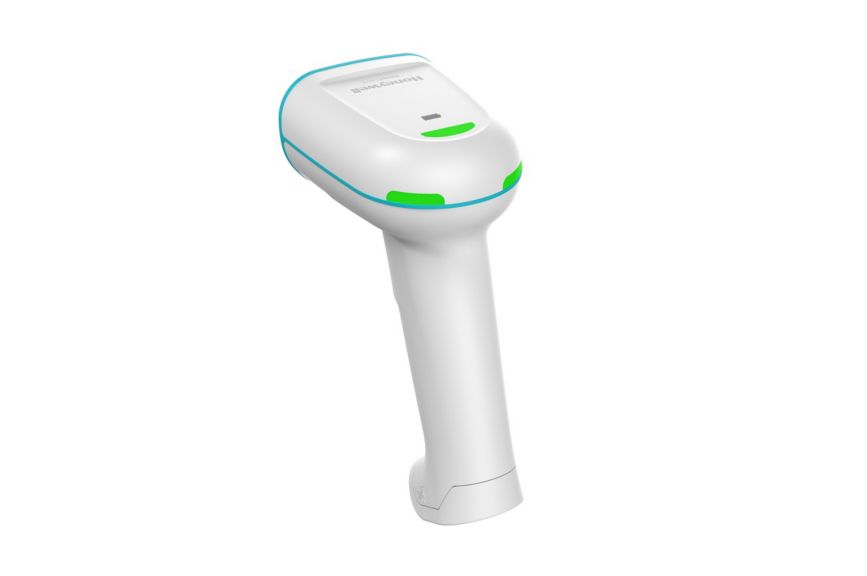

Xenon Ultra 1962h Healthcare Scanner
The Xenon Ultra 1962h incorporates Honeywell’s next generation of scanning – allowing patient care to stay top priority for clinicians, improving retention of employees and lowering the total cost of ownership for hospitals.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Designed for HealthcareOptimized for CliniciansUltra Performance
- The Xenon Ultra 1962h offers an improved disinfectant-ready, anti-microbial housing that helps combat germ proliferation.
- Multiple operating modes to support patient comfort while maintaining clinician productivity such patient-do-not-disturb, vibration, scan lamp, and object detection capabilities to illuminate only when needed.
- The Xenon Ultra 1962h scanner takes up minimal space, can be mounted or stored in a variety of different places, ensuring nurses’ focus is on patient safety and comfort
- Optional magnetic retention helps the scanner stay secured to WoW carts as clinicians’ move between patients.
- Contactless charging for both battery and battery free scanning removes the risk of corrosion occurring to better withstand cleaning protocols or more frequent cleanings.
- Bluetooth configuration offers premium accessory upgrades such as interchangeable power sources and contactless charging capabilities.
- The Xenon Ultra scanner offers superior scanning performance even on damaged or poor-quality barcodes and is engineered to perform with a high degree of accuracy minimizing the need to rescan trouble barcodes.
- A modernized design offers an improved aesthetic enhancing user experience and meets durability needs that businesses depend upon.
- The Xenon Ultra 1962h battery-free scanner typically provides at least 450 scans of UPC/EAN Codes without recharging, making it ideal for bedside scanning for medicine administration or specimen collection.
Specifications
Features
- Features
- In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
- Multiple operating modes are available to help ensure maximum patient comfort while maintaining clinician productivity, such as Patient Do-Not Disturb, Vibration, and Scan Lamp.
- Optimized Illumination
- Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break won’t impact operations upon return.
- The Xenon Ultra 1962 battery and battery-free is availble in a premium contactless version, reducing the number of failed devices due to corrosion.
- The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.
Dimensions
- Overall Dimensions
- Desktop/Wall Mount Base: 211.3mm x 74.2mm x 77.7mm
- Presentation Base: 82.9mm x 90.4mm x 121.6mm
- Scanner: 108.2mm x 70.4mm x 160.2mm
Scanning Specifications
- Scanning Range
- Standard Range (SR) and High Density (HD) Capabilites. Refer to datasheet or Users' Manual for further details
- Scan Pattern
- Area Imager
- Number of Scans
- Standard Battery: 80,000
- Motion Tolerance
- For 13 mil UPC at optimal focus4 meters/second
- Depth of Field
- Refer to the datasheet or users' manual for full depth of field specifications
- Decode Capability
- 1D/2D
- Brightness
- 0 - 100,000 Lux
Network
- Bluetooth Specifications
- Bluetooth radio v4.2 with Adaptive Frequency Hopping
- Class 1: 100m line of sight (default), programmable to Class 2: 10m line of sight BLE availble
- Radio/Range: 2.4GHz
- Bluetooth
- Yes
Hardware
- Aimer Type
- Green dot LED
- Wireless
- Yes
- Host System Interface
- USB
Electrical
- Battery Types
- Battery-Free Super Capacitor
- Lithium Ion
Environmental
- Storage Temperature Range
- -40°C to 70°C (-40°F to 158°F)
- Operating Humidity
- 0 to 95% relative humidity, non-condensing
Standards & Approvals
- Tumble Specifications
- Mil Spec Drop: 8'
- Tumble: 2,000 at 0.5m (1.6ft)
- Protection Ratings
- Environmental Sealing (Scanner): IP52Environmental Sealing (CCB): IP41
- Drop Specifications
- Engineered to withstand 50 1.8 m drops to concrete across operating temp range
Others
- Form Factor
- Gun Shape
- Application
- Bed Side Care
- Healthcare
- Inventory / Component Tracking
- Patient Admissions
- Pharmacy
- Specimen Collection
- Operating Power
- Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC) Standard USB10W (2A @ 5V DC) – when utilizing power adapter
- Input Voltage
- 4.4V DC – 5.5V DC
- Operating Temperature
- Bases: Charging: 5°C to 35°C (41°F to 95°F) Non-Charging: 0°C to 50°C (32°F to 122°F)
- Scanner: 0°C to 50°C (32°F to 122°F)
- Warranty Duration
- Lithium-ion Battery Pack: One year
- Scanner: Three-year factory warranty
- Supercapacitor: Five-year factory warranty
Features
- Features
- In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
- Multiple operating modes are available to help ensure maximum patient comfort while maintaining clinician productivity, such as Patient Do-Not Disturb, Vibration, and Scan Lamp.
- Optimized Illumination
- Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break won’t impact operations upon return.
- The Xenon Ultra 1962 battery and battery-free is availble in a premium contactless version, reducing the number of failed devices due to corrosion.
- The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.
Dimensions
- Overall Dimensions
- Desktop/Wall Mount Base: 211.3mm x 74.2mm x 77.7mm
- Presentation Base: 82.9mm x 90.4mm x 121.6mm
- Scanner: 108.2mm x 70.4mm x 160.2mm
Scanning Specifications
- Scanning Range
- Standard Range (SR) and High Density (HD) Capabilites. Refer to datasheet or Users' Manual for further details
- Scan Pattern
- Area Imager
- Number of Scans
- Standard Battery: 80,000
- Motion Tolerance
- For 13 mil UPC at optimal focus4 meters/second
- Depth of Field
- Refer to the datasheet or users' manual for full depth of field specifications
- Decode Capability
- 1D/2D
- Brightness
- 0 - 100,000 Lux
Network
- Bluetooth Specifications
- Bluetooth radio v4.2 with Adaptive Frequency Hopping
- Class 1: 100m line of sight (default), programmable to Class 2: 10m line of sight BLE availble
- Radio/Range: 2.4GHz
- Bluetooth
- Yes
Hardware
- Aimer Type
- Green dot LED
- Wireless
- Yes
- Host System Interface
- USB
Electrical
- Battery Types
- Battery-Free Super Capacitor
- Lithium Ion
Environmental
- Storage Temperature Range
- -40°C to 70°C (-40°F to 158°F)
- Operating Humidity
- 0 to 95% relative humidity, non-condensing
Standards & Approvals
- Tumble Specifications
- Mil Spec Drop: 8'
- Tumble: 2,000 at 0.5m (1.6ft)
- Protection Ratings
- Environmental Sealing (Scanner): IP52Environmental Sealing (CCB): IP41
- Drop Specifications
- Engineered to withstand 50 1.8 m drops to concrete across operating temp range
Others
- Form Factor
- Gun Shape
- Application
- Bed Side Care
- Healthcare
- Inventory / Component Tracking
- Patient Admissions
- Pharmacy
- Specimen Collection
- Operating Power
- Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC) Standard USB10W (2A @ 5V DC) – when utilizing power adapter
- Input Voltage
- 4.4V DC – 5.5V DC
- Operating Temperature
- Bases: Charging: 5°C to 35°C (41°F to 95°F) Non-Charging: 0°C to 50°C (32°F to 122°F)
- Scanner: 0°C to 50°C (32°F to 122°F)
- Warranty Duration
- Lithium-ion Battery Pack: One year
- Scanner: Three-year factory warranty
- Supercapacitor: Five-year factory warranty
- Form Factor : Gun Shape
- Features : In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.|Multiple operating modes are available to help ensure maximum patient comfort while maintaining clinician productivity, such as Patient Do-Not Disturb, Vibration, and Scan Lamp.|Optimized Illumination|Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break won’t impact operations upon return.|The Xenon Ultra 1962 battery and battery-free is availble in a premium contactless version, reducing the number of failed devices due to corrosion.|The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.
- Application : Bed Side Care|Healthcare|Inventory / Component Tracking|Patient Admissions|Pharmacy|Specimen Collection
- Overall Dimensions : Desktop/Wall Mount Base: 211.3mm x 74.2mm x 77.7mm|Presentation Base: 82.9mm x 90.4mm x 121.6mm|Scanner: 108.2mm x 70.4mm x 160.2mm
- Scanning Range : Standard Range (SR) and High Density (HD) Capabilites. Refer to datasheet or Users' Manual for further details
- Scan Pattern : Area Imager
- Number of Scans : Standard Battery: 80,000
- Motion Tolerance : For 13 mil UPC at optimal focus4 meters/second
- Depth of Field : Refer to the datasheet or users' manual for full depth of field specifications
- Decode Capability : 1D/2D
- Brightness : 0 - 100,000 Lux
- Bluetooth Specifications : Bluetooth radio v4.2 with Adaptive Frequency Hopping|Class 1: 100m line of sight (default), programmable to Class 2: 10m line of sight BLE availble|Radio/Range: 2.4GHz
- Bluetooth : Yes
- Aimer Type : Green dot LED
- Wireless : Yes
- Host System Interface : USB
- Operating Power : Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC) Standard USB10W (2A @ 5V DC) – when utilizing power adapter
- Input Voltage : 4.4V DC – 5.5V DC
- Battery Types : Battery-Free Super Capacitor|Lithium Ion
- Storage Temperature Range : -40°C to 70°C (-40°F to 158°F)
- Operating Temperature : Bases: Charging: 5°C to 35°C (41°F to 95°F) Non-Charging: 0°C to 50°C (32°F to 122°F)|Scanner: 0°C to 50°C (32°F to 122°F)
- Operating Humidity : 0 to 95% relative humidity, non-condensing
- Tumble Specifications : Mil Spec Drop: 8'|Tumble: 2,000 at 0.5m (1.6ft)
- Protection Ratings : Environmental Sealing (Scanner): IP52Environmental Sealing (CCB): IP41
- Drop Specifications : Engineered to withstand 50 1.8 m drops to concrete across operating temp range
- Warranty Duration : Lithium-ion Battery Pack: One year|Scanner: Three-year factory warranty|Supercapacitor: Five-year factory warranty
